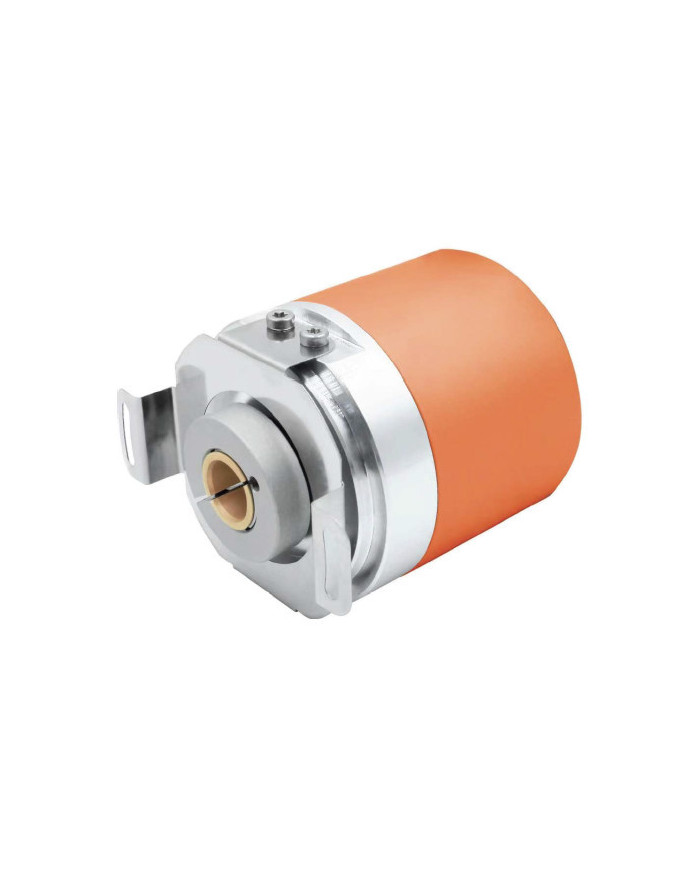

EAXB58-SSI Blind Shaft Absolute Encoder
Ask for price
- Standard ⌀58mm OD, easy to install
- High precision, standard SSI and biss protocol
- Up to 21 bit singleturn, 14 bit multiturn
- Suitable for system control and other applications
Description
Product Details
| Electrical Specifications | |
|---|---|
| Interface | SSI |
| Supply Voltage | 5VDC, 10-30VDC |
| Current Consumption | 80mA |
| Output Code | Binary/Gray |
| Resolution |
21 bit single turn (max.),
14 bit multiturn (max.) |
| Output speed | 0.1-2 MBit/s |
| Criterion | RS422 |
| Linearity | 1LSB |
| Incremental output | Refer to EINS58 parameter |
| Mechanical Specifications | |
|---|---|
| Maximum speed | 12000rpm |
| Shaft load | Axial 50N Radial 100N |
| Starting Torque | <0.05Nm |
| Shock Resistance | EN 60068-2-27 1000m/s² 6ms |
| Vibration Resistance | EN 60068-2-6 100m/s² 55…2000HZ |
| Operating Temperature | -40°C to +80°C |
| Protection Class | IP66 |
| Material | Stainless steel (316L) |
| Weight | 300g |
| Connection |
|---|
| SSI | 3A/3R | 6A/6R/8A/8R |
|---|---|---|
| GND | brown | 2 |
| VCC | white | 1 |
| CLOCK+ | yellow | 6 |
| CLOCK- | green | 4 |
| DATE+ | pink | 5 |
| DATE- | grey | 8 |
| ZERO | black | 7 |
| DIR | blue | 3 |
| Ordering Code | ||||||
|---|---|---|---|---|---|---|
|
Example: EASB580012E06SB3R
58 single turn 12 bit resolution SSI binary blind shaft encoder, power voltage 10-30V DC, aperture 6mm, radial straight out cable |
||||||
| EASB58 | resolution | power | shaft | output | connection |
option:
incremental output |
|
EASB=ST
EAMB=MT |
1212=12 MT 12 ST
1214=12 MT 14 ST 1021=10 MT 21 ST 1220=12 MT 20 ST 1418=14 MT 18 ST 0012=12 ST 0021=21 ST custom-made |
A=5VDC
E=10-30VDC |
06=6mm
10=10mm XX=custom-made |
SB=SSI binary
SG=SSI gray |
3A=axial output
3R=radial output 6A=connector radial output (cw) 6R=connector axial output (cw) 8A=connector radial output (ccw) 8R=connector axial output (ccw) |
1024/2048/4096 |
