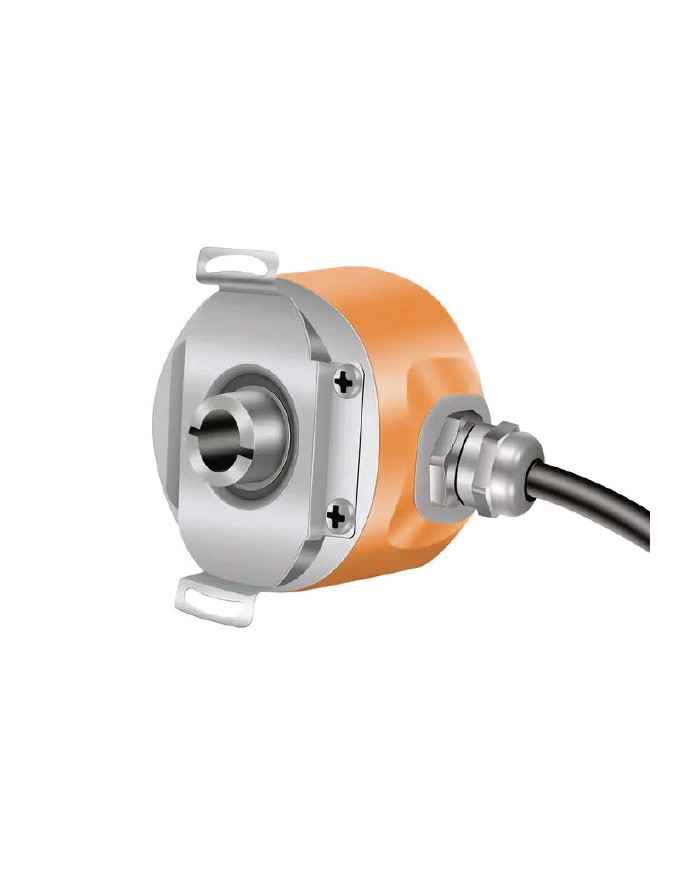

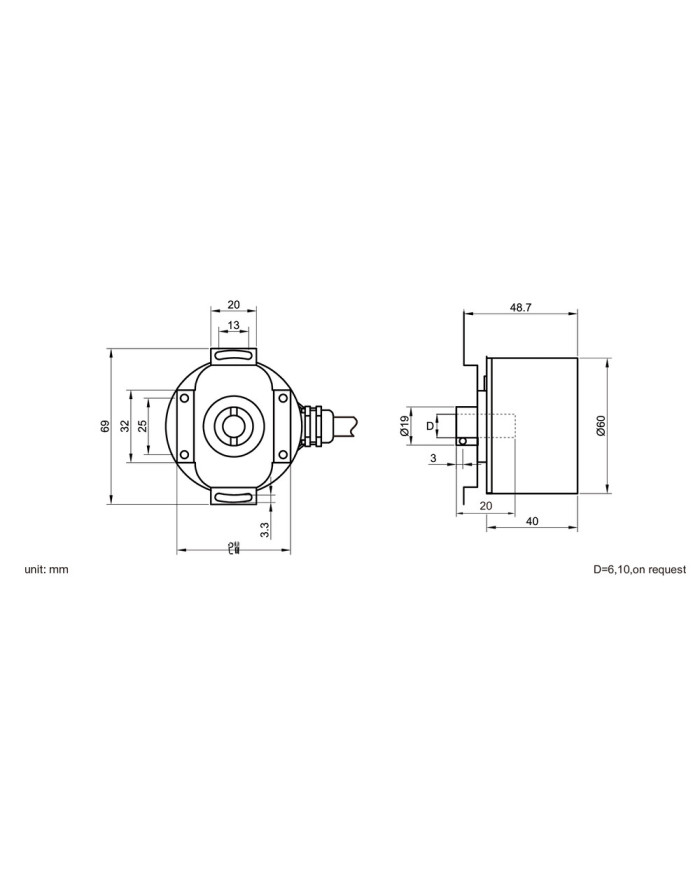

EAXB58-Modbus Analog Blind Shaft Absolute Encoder
Ask for price
- Standard ⌀58mm OD, easy to install, protection grade up to IP67
- High precision, standard MODBUS protocol 4-20mA output
- Address, baud rate, etc
- Suitable for field testing applications
Description
Product Details
| Electrical Specifications | |
|---|---|
| Interface | MODBUS and Analog |
| Supply Voltage | 10-30VDC |
| Current Consumption | 50mA |
| Output Code | Binary |
| Resolution |
21 bit single turn (max.),
14 bit multiturn (max.) |
| Output speed | 4-20mA |
| Criterion | GB/Z19582 |
| Linearity | 1LSB |
| Mechanical Specifications | |
|---|---|
| Maximum speed | 12000rpm |
| Shaft load | Axial 50N Radial 100N |
| Starting Torque | <0.05Nm |
| Shock Resistance | EN 60068-2-27 1000m/s² 6ms |
| Vibration Resistance | EN 60068-2-6 100m/s² 55…2000HZ |
| Operating Temperature | -40°C to +80°C |
| Protection Class | IP66 |
| Material | Aluminium alloy |
| Weight | 300g |
| Connection |
|---|
| Modbus/AO | 3A/3R | 6A/6R/8A/8R |
|---|---|---|
| GND | brown | 1 |
| VCC | blue | 2 |
| MOD_A(pro.) | black | 3 |
| MOD_B(pro.) | white | 4 |
| ANA+ | red | 5 |
| ANA- | yellow | 6 |
| RST | grey | 7 |
| pro. | green | 8 |
| Ordering Code | |||||
|---|---|---|---|---|---|
|
Example: EASB580012E06MA3R
58 single turn 12 bit resolution MODBUS/analog blind shaft encoder, power voltage 10-30V DC, aperture 6mm, radial straight out cable |
|||||
| EAXB58 | resolution | power | shaft | output | connection |
|
EASB=ST
EAMB=MT |
1212=12 MT 12 ST
1214=12 MT 14 ST 1021=10 MT 21 ST 1220=12 MT 20 ST 1418=14 MT 18 ST 0012=12 ST 0021=21 ST custom-made |
E=10-30VDC |
06=6mm
10=10mm XX=custom-made |
MA=analog & MODBUS RTU |
3A=axial output
3R=radial output 6A=connector radial output (cw) 6R=connector axial output (cw) 8A=connector radial output (ccw) 8R=connector axial output (ccw) |
