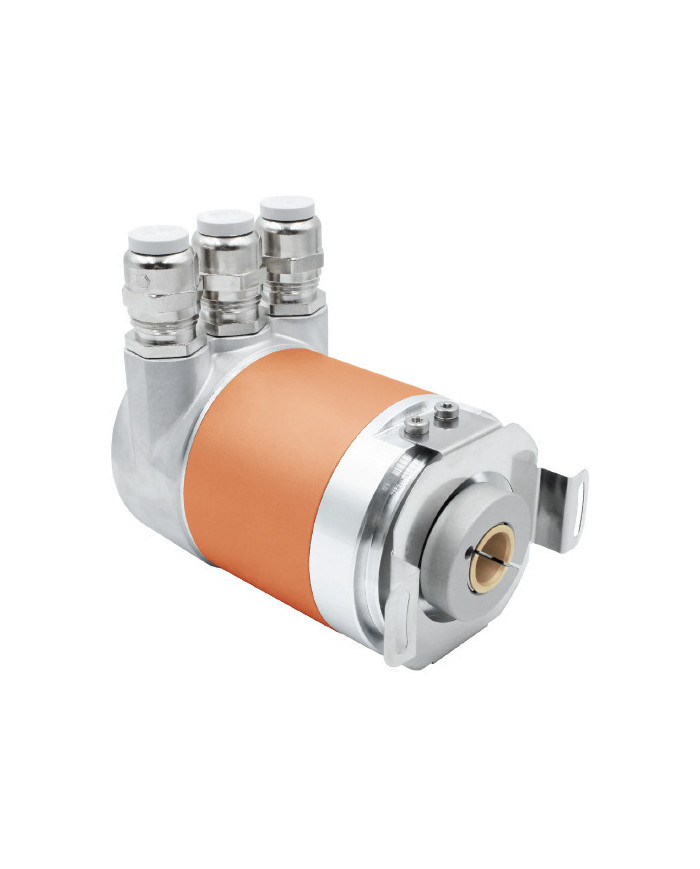

EAXB58-ProfibusDP Blind Shaft Absolute Encoder
Ask for price
- With optical coupler isolation, standard PROFIBUS-DP interface
- Terminal resistance, address and so on can be set (dip switch)
- Up to 21 bit singleturn, 14 bit multiturn
- Suitable for group control with industrial bus and other applications
Description
Product Details
| Electrical Specifications | |
|---|---|
| Interface | Profibus DP |
| Supply Voltage | 10-30VDC |
| Current Consumption | 200mA |
| Output Code | Binary |
| Resolution |
21 bit single turn (max.),
14 bit multiturn (max.) |

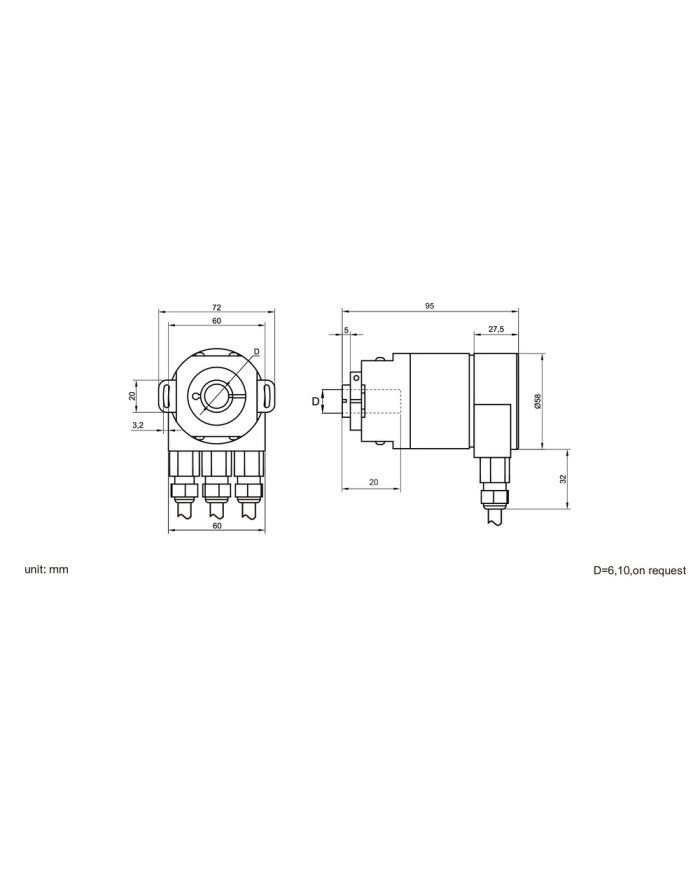

| Output speed | 0.001-12 MBit/s |
| Criterion | DPV0, DPV1 and DPV2 Class 2 |
| Linearity | 1LSB |
| Mechanical Specifications | |
|---|---|
| Maximum speed | 12000rpm |
| Shaft load | Axial 50N Radial 100N |
| Starting Torque | <0.05Nm |
| Shock Resistance | EN 60068-2-27 1000m/s² 6ms |
| Vibration Resistance | EN 60068-2-8 100m/s² 55…2000HZ |
| Operating Temperature | -40°C to +80°C |
| Protection Class | IP66 |
| Material | Aluminium alloy |
| Weight | 300g |
| Connection |
|---|
| DP | Z |
|---|---|
| BUS IN(B) | 5 |
| BUS IN(A) | 6 |
| BUS IN(0 V) | 2 |
| BUS IN(+ V) | 1 |
| BUS OUT(B) | 7 |
| BUS OUT(A) | 8 |
| BUS OUT(0 V) | 4 |
| BUS OUT(+ V) | 3 |
| Ordering Code | |||||
|---|---|---|---|---|---|
|
Example: EASB580012E06DPZ
58 single turn 12 bit resolution profibus blind shaft encoder, power voltage 10-30V DC, aperture 6mm, terminal box |
|||||
| EAXB58 | resolution | power | shaft | output | connection |
|
EASB=ST
EAMB=MT |
1212=12 MT 12 ST
1214=12 MT 14 ST 1021=10 MT 21 ST 1220=12 MT 20 ST 1418=14 MT 18 ST 0012=12 ST 0021=21 ST custom-made |
E=10-30VDC |
06=6mm
10=10mm XX=custom-made |
DP=profibus | Z=terminal 3xPG9 |
