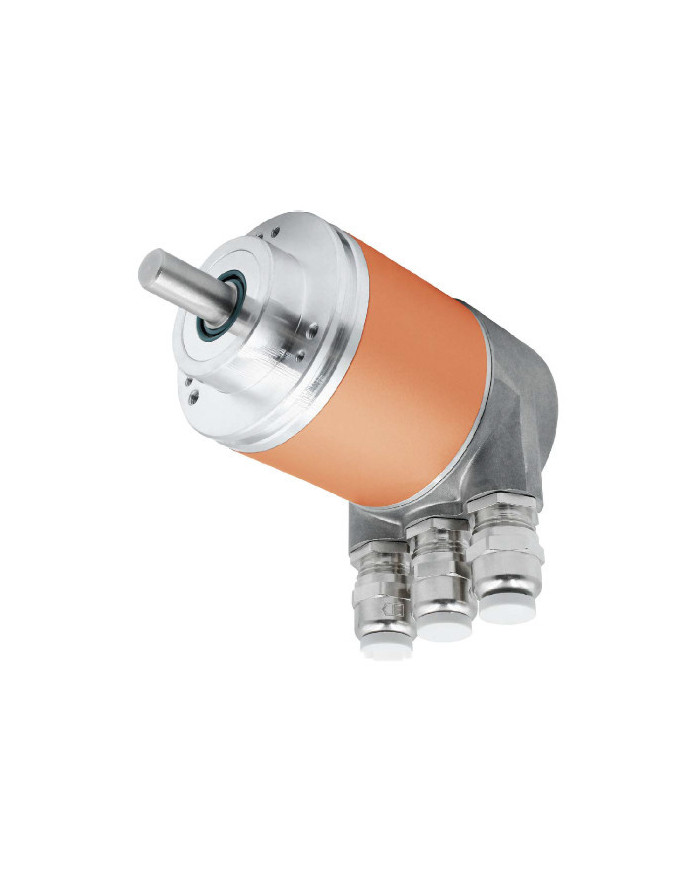

EAXS58-Ethernet Solid Shaft Absolute Encoder
Ask for price
- Standard Ethernet interface, ⌀58mm standard OD
- Supports Profinet, PowerLink, TCP/IP and other protocols
- Up to 21 bit singleturn, 14 bit multiturn
- Suitable for industrial Internet of Things and other applications
Description
Product Details
| Electrical Specifications | |
|---|---|
| Interface | Ethernet |
| Supply Voltage | 10-30VDC |
| Current Consumption | 4W |
| Output Code | Binary |
| Resolution | 21 bit single turn (max.), 14 bit multiturn (max.) |
| Output speed | 10 M or 100 MBit/s |
| Criterion | Standard Ethernet |
| Linearity | 0.5LSB |

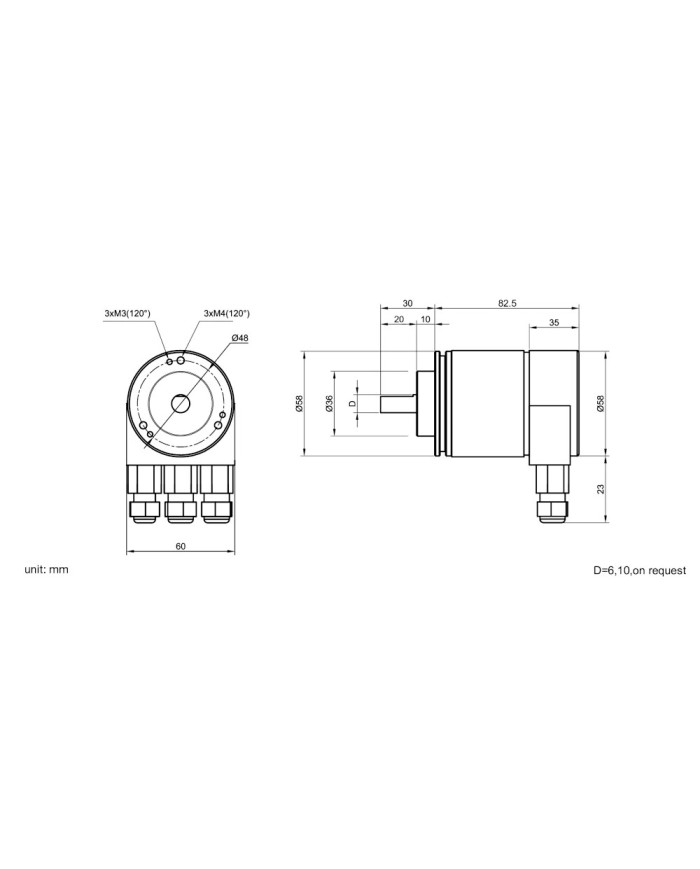

| Mechanical Specifications | |
|---|---|
| Maximum speed | 12000rpm |
| Shaft load | Axial 50N Radial 100N |
| Starting Torque | <0.05Nm |
| Shock Resistance | EN 60068-2-27 1000m/s²6ms |
| Vibration Resistance | EN 60068-2-6 100m/s²55…2000HZ |
| Operating Temperature | -40°C to +80°C |
| Protection Class | IP66 |
| Material | Aluminium alloy |
| Weight | 300g |
| Connection |
|---|
| NET | CD(M12) |
|---|---|
| RXD+ | 1(X1,X2) |
| TXD+ | 2(X1,X2) |
| RXD- | 3(X1,X2) |
| TXD+ | 4(X1,X2) |
| / | 5(X1,X2) |
| VCC | 1(X3) |
| VCC | 2(X3) |
| GND | 3(X3) |
| GND | 4(X3) |
| PE | 5(X3) |
| Ordering Code | |||||
|---|---|---|---|---|---|
| Example: EASS580012E06PNCD 58 single turn 12 bit resolution profinet solid shaft encoder, power voltage 10-30V DC, axle diameter 6mm, terminal box |
|||||
| EAXS58 | resolution | power | shaft | output | connection |
| EASS=ST EAMS=MT |
1212=12 MT 12 ST 1214=12 MT 14 ST 1021=10 MT 21 ST 1220=12 MT 20 ST 1418=14 MT 18 ST 0012=12 ST 0021=21 ST custom-made |
E=10-30VDC | 06=6x10mm 10=10x20mm XX=custom-made |
PN=profinet PL=Powerlink TI=TCIP/IP |
CD=M12 A-coded+M12 D-coded*2 |
