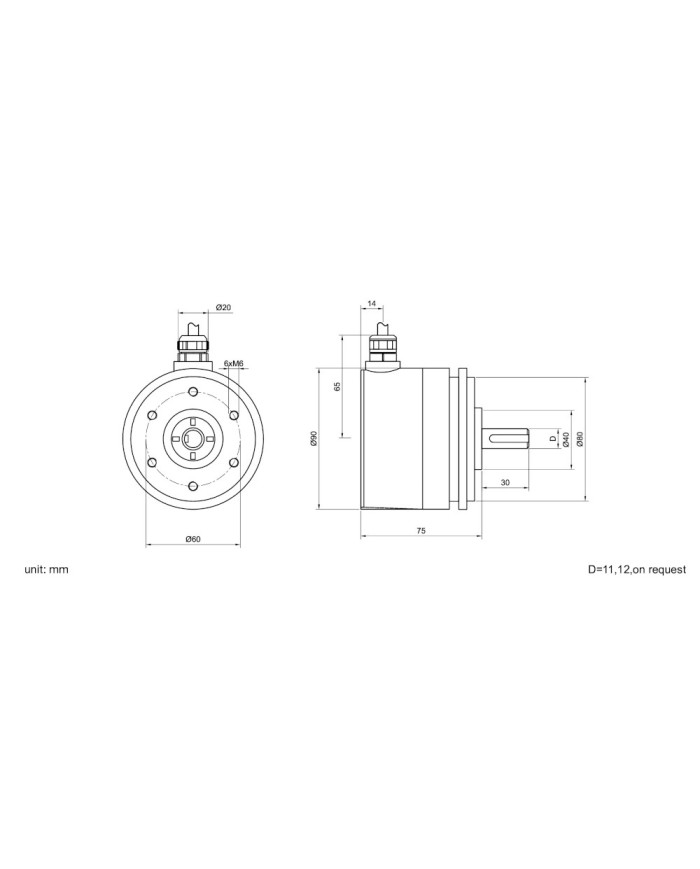

EAXS90-SSI Heavy-duty Solid Shaft Absolute Encoder
Ask for price
- Heavy duty large size absolute encoder
- Standard CANopen protocol, SSI protocol
- Up to 13 bit singleturn, 16 bit multiturn
- Suitable for steel, mining and other heavy industry applications
Description
Product Details
| Electrical Specifications | ||
|---|---|---|
| Interface | CAN open | SSI/BISS |
| Supply Voltage | 10-30VDC | 10-30VDC |
| Current Consumption | 120mA | 100mA |
| Output Code | Binary | Binary/Gray |
| Resolution |
13 bit single turn (max.),
16 bit multiturn (max.) |
13 bit single turn (max.),
16 bit multiturn (max.) |
| Output speed | 1 MBit/s | 0.1-2 MBit/s |
| Criterion | DSP406, Class 1 Class2 | RS422 |
| Linearity | 1LSB | 1LSB |
| Mechanical Specifications | |
|---|---|
| Maximum speed | 6000rpm |
| Shaft load | Axial 100N Radial 200N |
| Starting Torque | <0.06Nm |
| Shock Resistance | EN 60068-2-27 1000m/s² 6ms |
| Vibration Resistance | EN 60068-2-6 100m/s² 55…2000HZ |
| Operating Temperature | -20°C to +90°C |
| Protection Class | IP65 / IP67(option) |
| Material | Galvanized aluminum housing / stainless steel |
| Weight | 1500g |
| Connection |
|---|
| SSI | 3A/3R | 6A/6R/8A/8R |
|---|---|---|
| GND | brown | 2 |
| VCC | white | 1 |
| CLOCK+ | yellow | 6 |
| CLOCK- | green | 4 |
| DATE+ | pink | 5 |
| DATE- | grey | 8 |
| ZERO | pink | 7 |
| DIR | blue | 3 |
| CANopen | 3A/3R | 6A/6R/8A/8R |
|---|---|---|
| GND | white | 3 |
| VCC | brown | 2 |
| CAN_GROUND | green | 1 |
| CAN_LOW(-) | yellow | 5 |
| CAN_HIGH(+) | grey | 4 |
| Ordering Code | ||||||
|---|---|---|---|---|---|---|
|
Example: EASS90SS0012E12SB3R
90 single turn 12 bit resolution SSI binary solid shaft encoder, power voltage 10-30V DC, radial straight out cable, stainless steel housing |
||||||
| EAXS90 | shell | resolution | power | shaft | output | connection |
|
EASS=ST
EAMS=MT |
L=galvanized aluminum
SS=stainless steel |
1212=12 MT 12 ST
1412=14 MT 12 ST 1612=16 MT 12 ST 0012=12 ST customizable |
E=10-30VDC |
11=11x30mm
12=12x30mm |
SB=SSI binary
SG=SSI gray CO=CANopen |
3A=axial output
3R=radial output 6A=connector axial output (cw) 6R=connector radial output (cw) 8A=connector axial output (ccw) 8R=connector radial output (ccw) |
