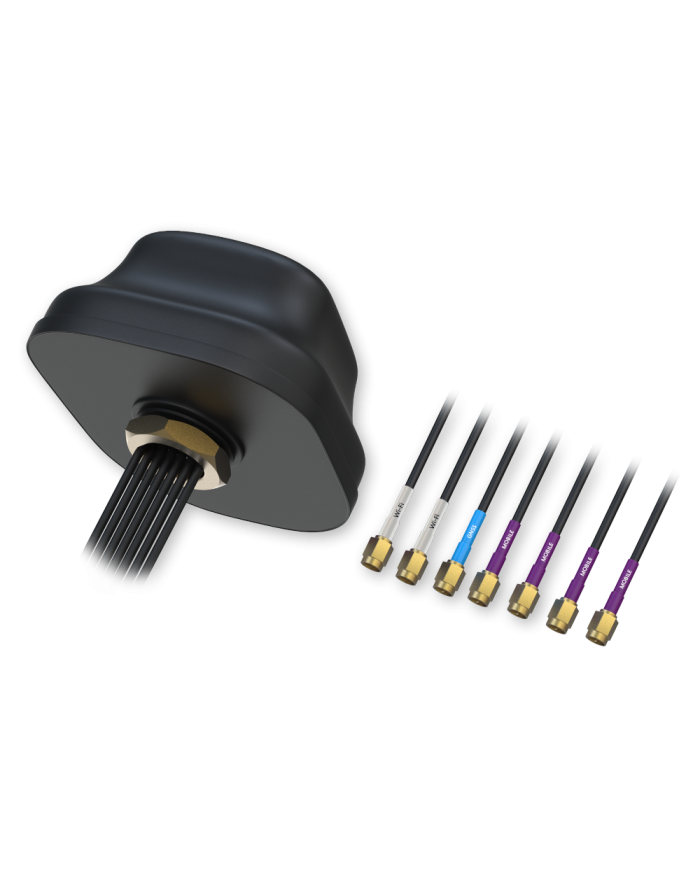

PR1KC640 Combo MIMO 5G/GNSS/Wi-Fi Roof SMA Antenna
Ask for price
External antenna for 5G cellular connectivity, GNSS satellite navigation and Wi-Fi wireless networks. Can be mounted on a roof, mast, or metal enclosure. Compatible with routers and gateways operating in MIMO technology.
Description
Product Details
FEATURES
5G mobile MIMO antenna
| Frequency range | 617 ~ 960 / 1710 ~ 2690 / 2900 ~ 4200 MHz |
| Polarization | Linear |
| Gain | 4.0 dBi |
| V.S.W.R | ≤ 3.0 |
| Impedance | 50 Ω |
| Connector type and count | 4x SMA Male |
GNSS antenna
| Frequency range | 1164 ~ 1300 / 1559 ~ 1610 MHz |
| Polarization | RHCP |
| Supply voltage | 3 - 12 VDC |
| LNA Gain | 40 ± 2 dB |
| V.S.W.R | ≤ 2.0 |
| Impedance | 50 Ω |
| Current consumption | ≤ 60 mA |
| Connector type and count | SMA Male |
Wi-Fi MIMO antenna
| Frequency range | 2400 ~ 2483.5 / 4900 ~ 5925 MHz |
| Polarization | Linear |
| Gain | 4.0 dBi |
| V.S.W.R | ≤ 2.5 |
| Impedance | 50 Ω |
| Connector type and count | 2x RP SMA Male |
Mechanical/environmental
| Mounting method | Screw |
| Radome ingress projection rating | IP67 (exclude cable outlet) |
| Radome material | UV-Resistant ABS/PC |
| Weight | 960 ± 30 g |
| Housing dimensions | 189 x 182 x 85 mm |

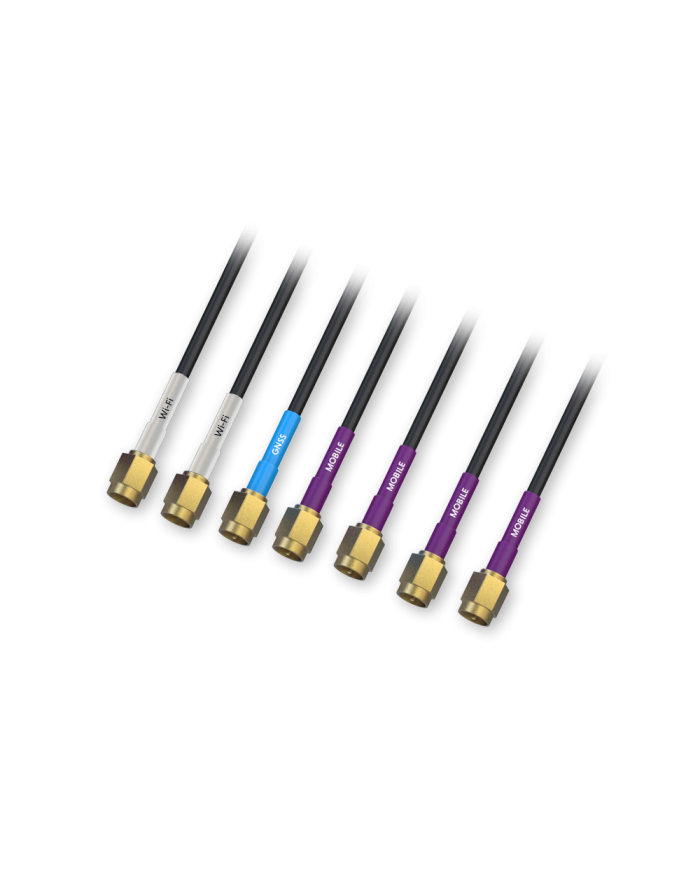

| Cable | 7 x LMR100, 3000 mm |
| Recomended mounting dimensions | Hole ø28 mm, panel thickness MAX 8 mm |
| Operating temperature | -40 °C to +85 °C |
| RoHS compliant | Yes |
Data sheet
| Antenna for | 2G 3G 4G/LTE 5G GNSS Wi-Fi |
|---|---|
| Mobile frequency range | 617 ~ 960 MHz 1710 ~ 2690 MHz 2900 ~ 4200 MHz |
| Mobile antenna gain | 4.0 dBi |
| Wi-Fi frequency range | 2400 ~ 2483.5 MHz 4900 ~ 5925 MHz |
