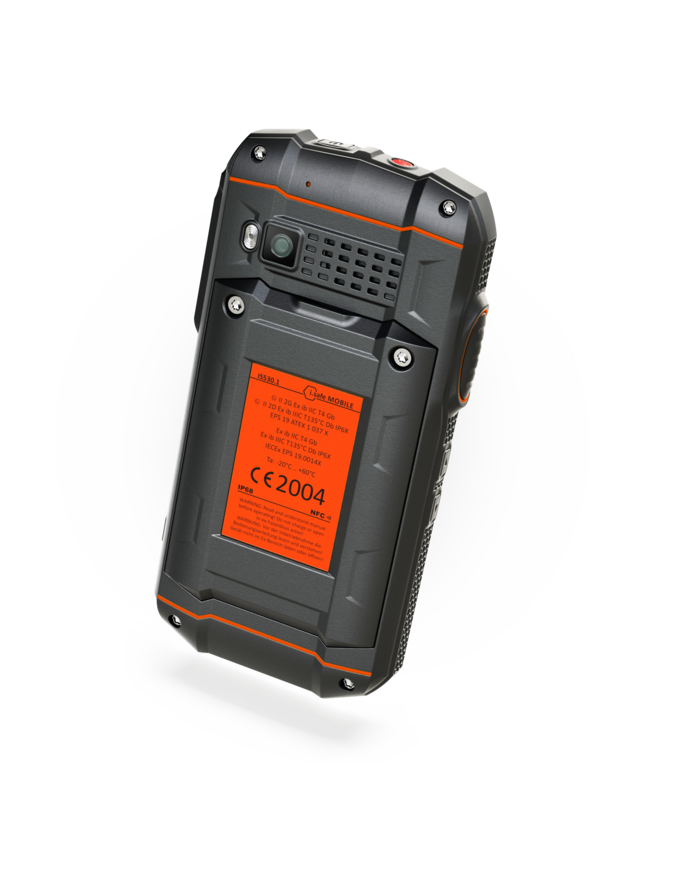

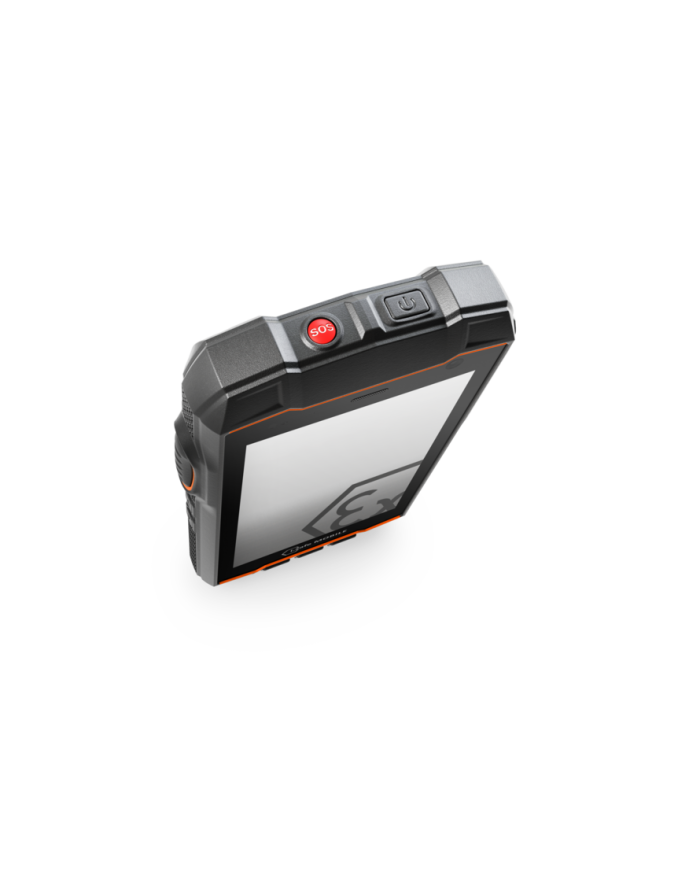

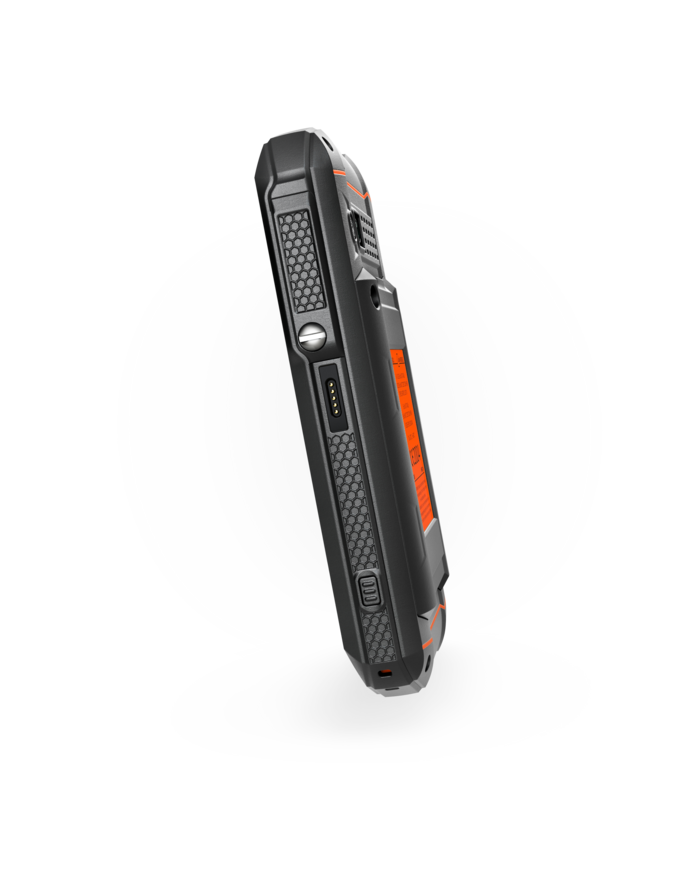

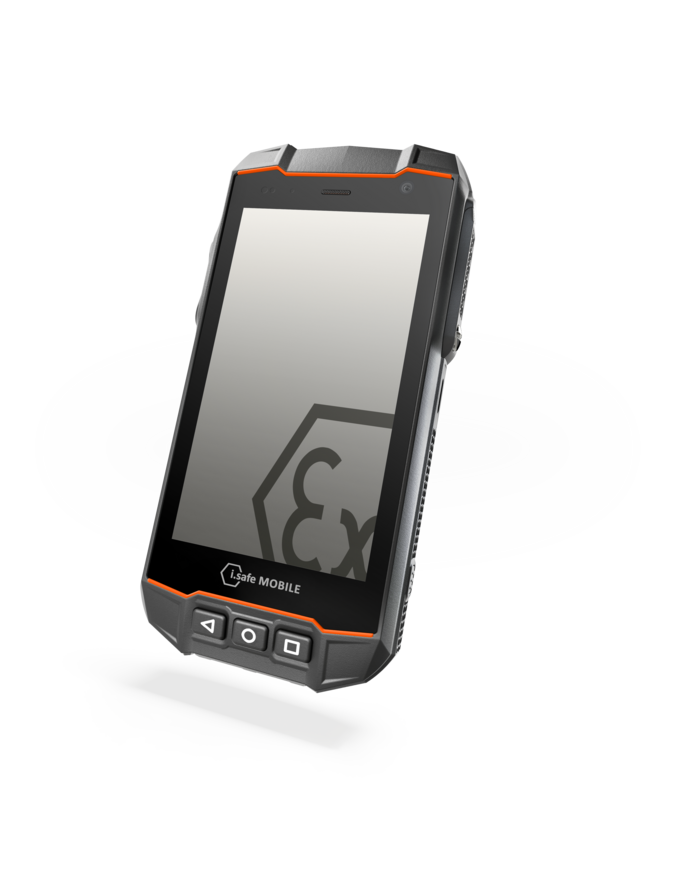

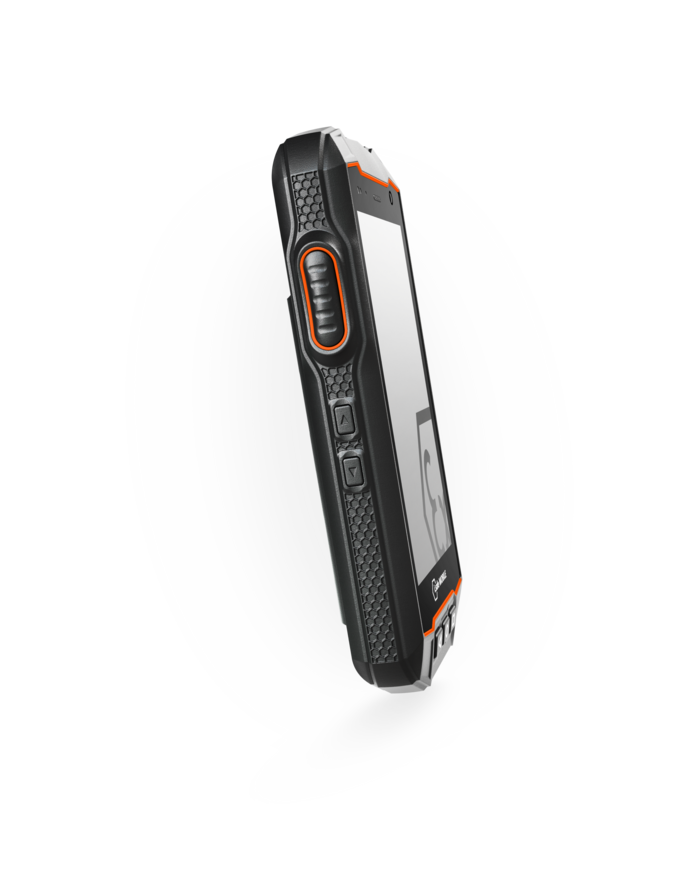

IS530.1 Smartphone for Zone 1/21
Ask for price
The high-performance intrinsically safe smartphone can be used in a variety of ways thanks to the ISM interface. Additional modules such as the remote speaker mic, PTT headsets or the IS-TH1xx.1 professional barcode scanner turn the IS530.1 into a high-performance multifunctional device. The smartphone is Android Enterprise Recommended, zero-touch capable and MDM compatible.
Advantages
- Android 13
- Universal, 13-pin ISM (multifunctional) interface for connecting additional devices for a wide range of applications
- Android Enterprise Recommended
- Zero-touch capable
- MDM compatible
Description
Product Details
Technical features
Operating system
- Android 13
Processor
- Qualcomm Snapdragon SDM660 Octa Core
Memory
- 4 GB RAM
- 64 GB internal memory
- microSD to 128 GB
Frequencies
- 2G GSM 850/900/1800/1900 MHz
- 3G WCDMA B1/2/4/5/8
- 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66
- 4G LTE-TDD: B38/B39/B40/B41
- 4G LTE-TD: B34/B38
Dimensions
- Size: 155,3 x 76,7 x 25 mm
- Weight: 325,0 g
Display
- 4,5” (11,43 cm) Corning Gorilla Glass V3
- Usable with gloves
Battery
- 3600 mAh, 3,8 V
- Replaceable
Camera
- 13 MP AF rear
- 5 MP FF front
Connectivity
- Wi-Fi 2.4 GHz + Wi-Fi 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot
- Bluetooth 5
- GPS, A-GPS, Glonass, Beidou, Galileo
- Near Field Communication
Types of protection
- IP68 dust-/waterproof
- MIL-STD 810H
- Usable from -20 °C to +60 °C
Further features
- Multifunctional, lateral ISM interface for a quick and safe connection of additional devices
- SOS key for loneworker protection; LWP ready (third party application required, based on country specific regulations)
- Push-To-Talk key; PTT ready (third party application required, based on country specific approvals)
- Amplified loudspeaker
- Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors
- Dual-Micro-SIM
- USB-C, Magnetic charger port, Desktop Charger, Multi Charger
Approvals
ATEX (Europe) approved
- II 2G Ex ib IIC T4 Gb
- II 2D Ex ib IIIC T135°C Db IP6X
IECEx (International) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db IP6X
NEC500 (North America) approved
- Class I Div. 1 Groups A, B, C, D, T4
- Class II Div. 1 Groups E, F, G, T135°C
- Class III Div. 1
EAC (Russia) approved
- 1Ex ib IIC T4 Gb X
- Ex ib IIIC T135°C Db X IP64
KCs (South Korea) approved
- Ex ib IIC T4
- Ex ib IIIC T135°C
INMETRO (Brazil) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db IP6X
PCEC (China) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
Japan-Ex (Japan) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db IP6X
IA (South Africa) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db IP6X
Contents included
- Smartphone
- Battery
- i.safe PROTECTOR 2.0
- i.safe PROTECTOR 3.0
- Power Adapter universal
- Screwdriver
- Display Protection Foil
- Safety Instructions
- Quick Start Manual
Full technical specification is available in Attachments.
Data sheet
| Connectivity | 2G 3G 4G |
|---|---|
| Display | 4,5" |
| Camera | 5 MP FF front 13 MP AF rear |
| Battery | 3600 mAh |
| RAM | 4 GB |
| Internal memory | 64 GB |
| Operating system | Android |
