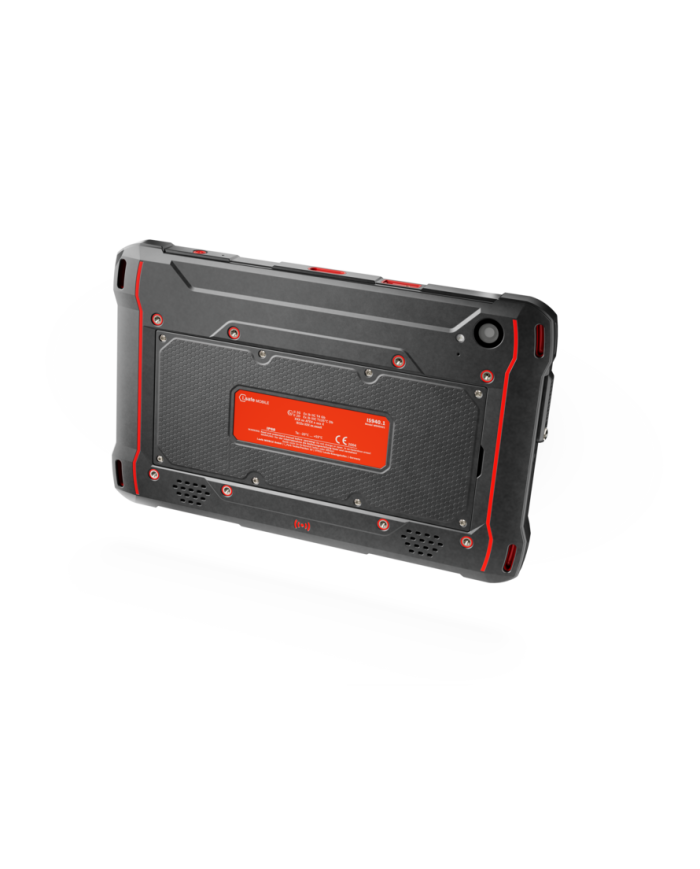

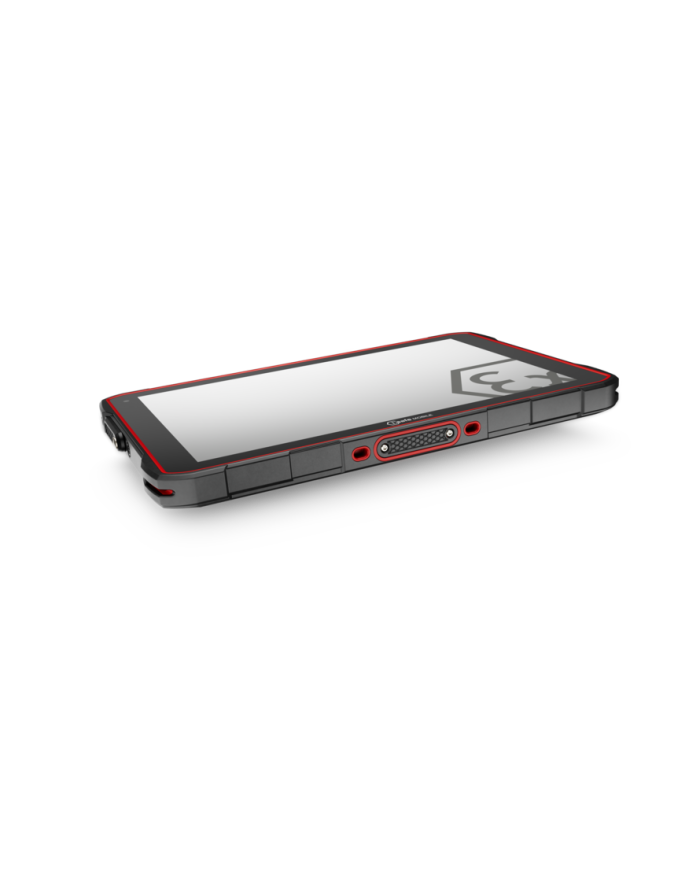

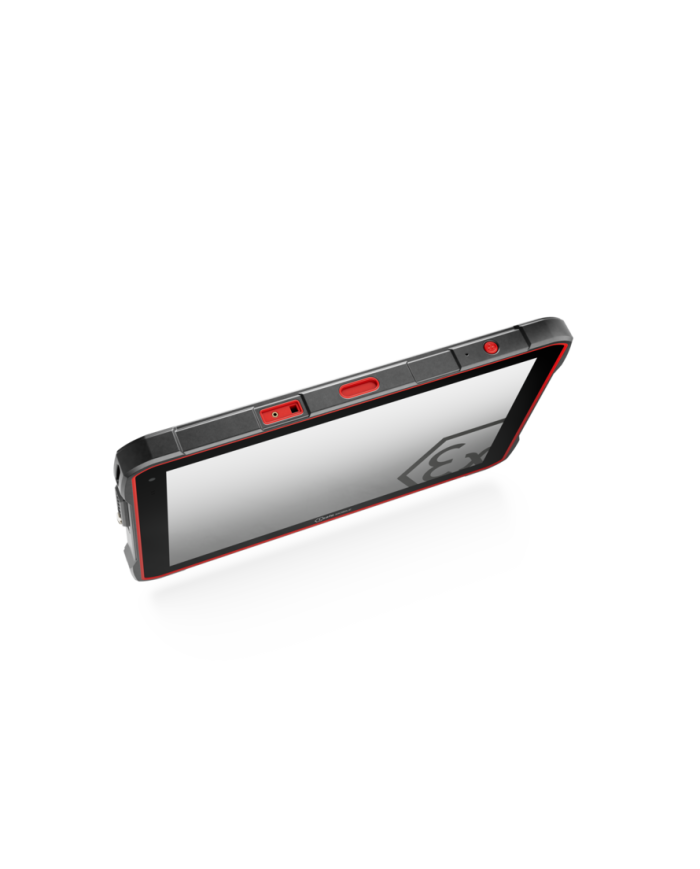

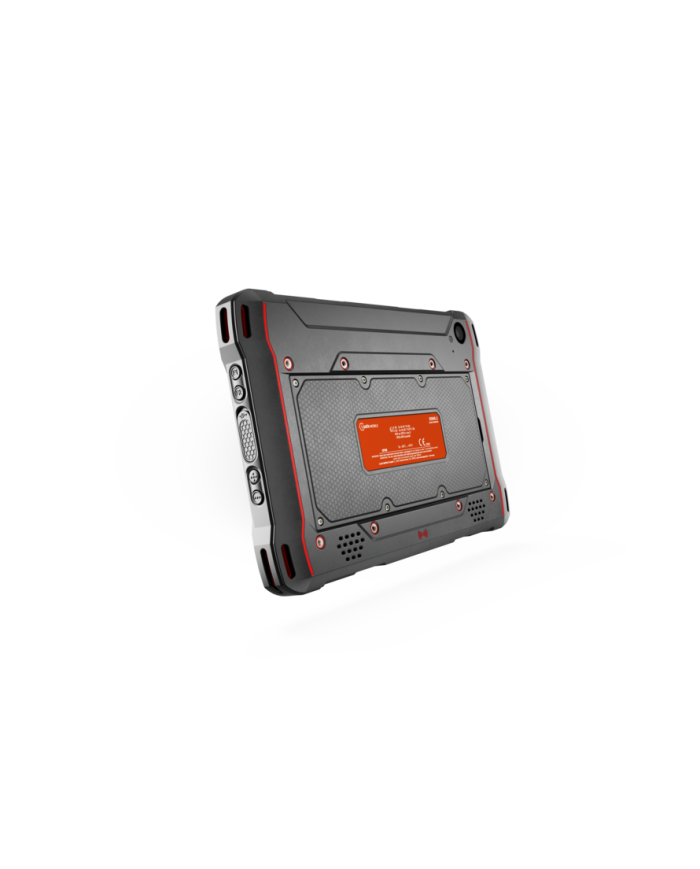

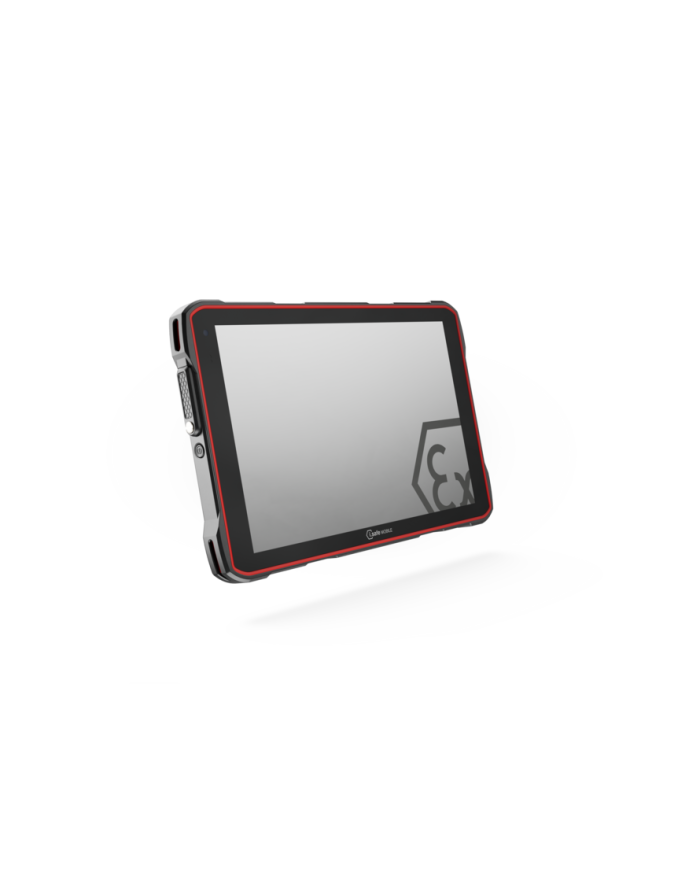

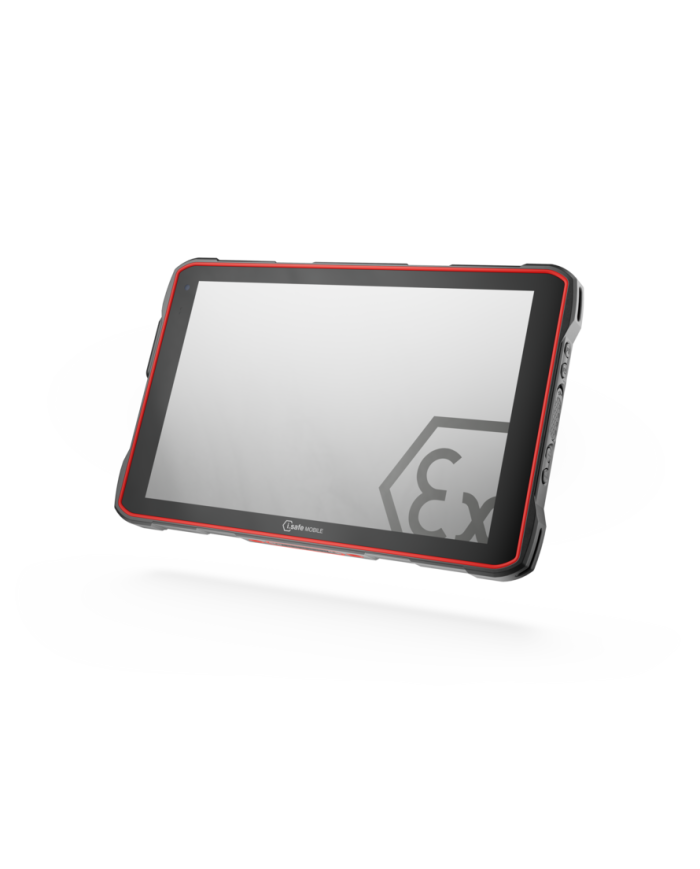

IS940.1 Tablet for Zone 1/21
Ask for price
The 10.1-inch 5G Android tablet for data communication in the process industry and in automation integrates seamlessly into the existing system landscape with 4G/5G campus networks or Wi-Fi 6. It is equipped with a powerful, IIoT-optimised chipset from Qualcomm Technologies, Inc. Other highlights of the robust and easy-to-handle tablet include a 16-pin ISM interface, 12-pin ISM interface for Docking Station, Wi-Fi 6, Bluetooth 5.2 and NFC support, a replaceable, long-lasting battery, freely programmable buttons and main and front cameras.
Advantages
- Android operating system
- Processor with long-term support: Qualcomm QCM6490 Octa Core
- Large memory with 8 GB RAM, 128 GB internal memory expandable with microSD memory up to 128 GB
- Clear 10.1” display with Corning Gorilla Glass 3rd generation
- Replaceable, powerful battery
- Camera on the front and back
- Wireless communications such as Wi-Fi, Bluetooth, Near Field Communication (NFC), GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo
- Programmable red key (e.g. for lone worker protection/SOS)
- Additional programmable side buttons (assignable via “Button App”)
- Mounting VESA 100
- Amplified loudspeaker for noisy work environments
- Type of protection: IP68 waterproof/dustproof
- MIL-STD-810H
- Can be used from -20 °C to +55 °C
Description
Product Details
Technical features
Operating system
- Android 13
Processor
- Qualcomm QCM6490 Octa Core
Memory
- 8 GB RAM
- 128 GB internal memory
- microSD to 128 GB
Frequencies
- 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66/B71/B68
- 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48
- 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
Dimensions
- Size: 266,17 x 168,46 x 19,82 mm
- Weight: 1059 g
Display
- 10,1” (25,654 cm) Corning Gorilla Glass V3
- Usable with gloves
Battery
- 8160 mAh, 3,7 V
- Replaceable
Camera
- 50 MP AF rear
- 5 MP FF front
Connectivity
- Wi-Fi 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot
- Bluetooth 5.2
- GPS, A-GPS, Glonass, Beidou, Galileo
- Near Field Communication
Types of protection
- IP68
- MIL-STD 810H
- Usable from -20 °C to +55 °C
Further features
- Amplified loudspeaker
- Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors
- Dual-SIM (Nano-SIM + eSIM)
- USB-C, Docking Station
Approvals
ATEX (Europe) approved
- II 2G Ex ib IIC T4 Gb
- II 2D Ex ib IIIC T135°C Db
IECEx (International) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
NEC500 (North America) applied for
- Class I Div. 1 Groups A, B, C, D, T4
- Class II Div. 1 Groups E, F, G, T135 °C
- Class III
IA (South Africa) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
PCEC (China) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
INMETRO (Brazil) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
Japan-Ex (Japan) applied for
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
Contents included
- Tablet
- Battery
- Hand Strap
- i.safe PROTECTOR 2.0
- Power Adapter universal
- Display Protection Foil
- Screwdriver
- Safety Instructions
Full technical specification is available in Attachments.
Data sheet
| Connectivity | 4G 5G |
|---|---|
| Display | 10,1" |
| Camera | 5 MP FF front 50 MP AF rear |
| Battery | 8160 mAh |
| RAM | 8 GB |
| Internal memory | 128 GB |
| Operating system | Android |
