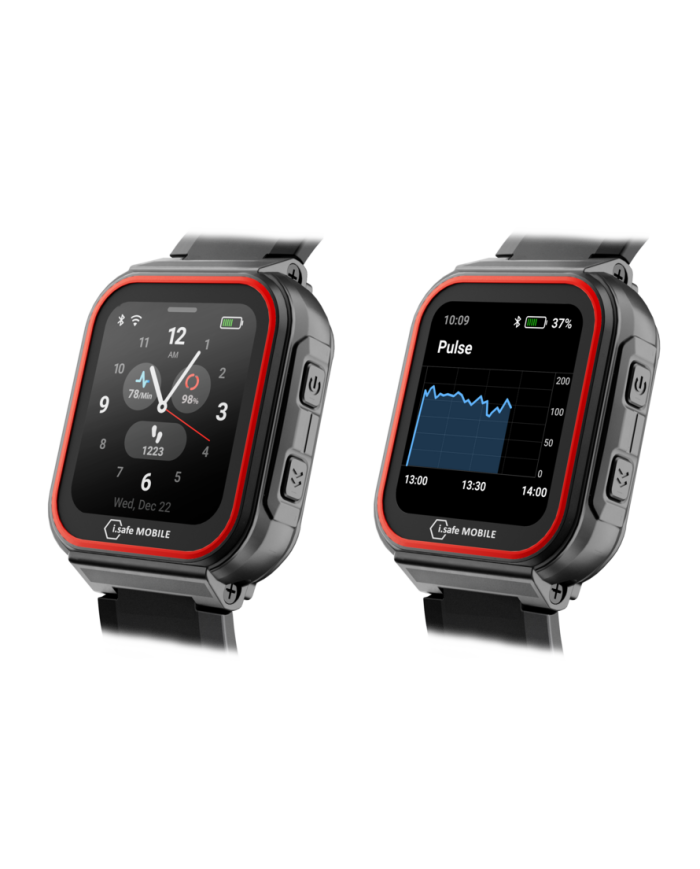

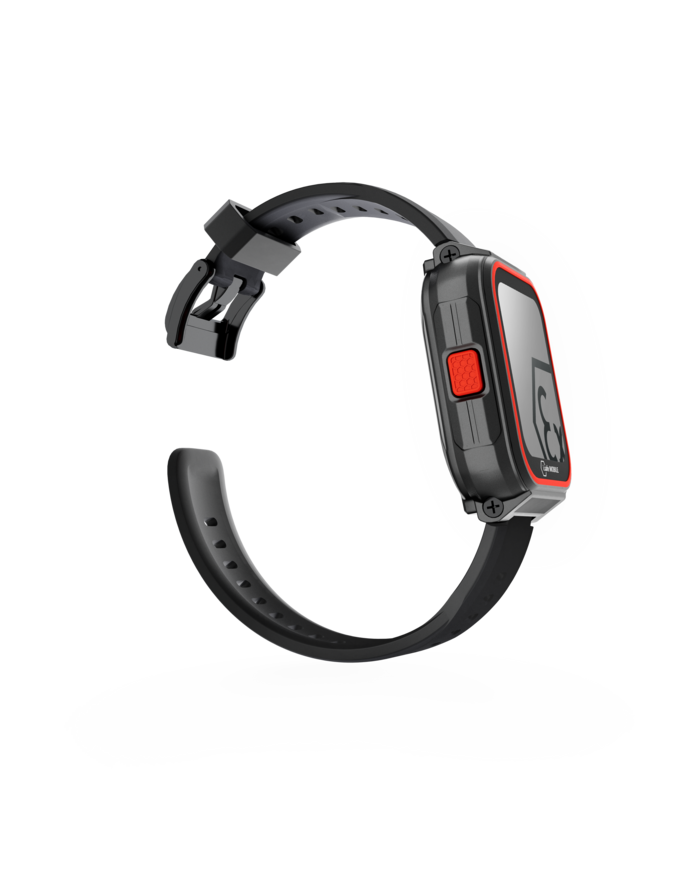

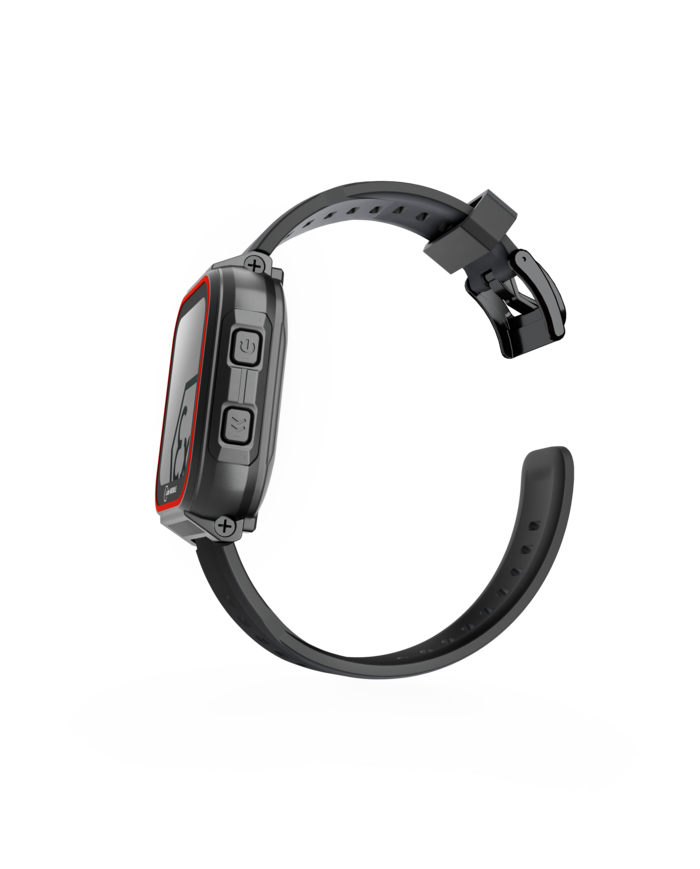

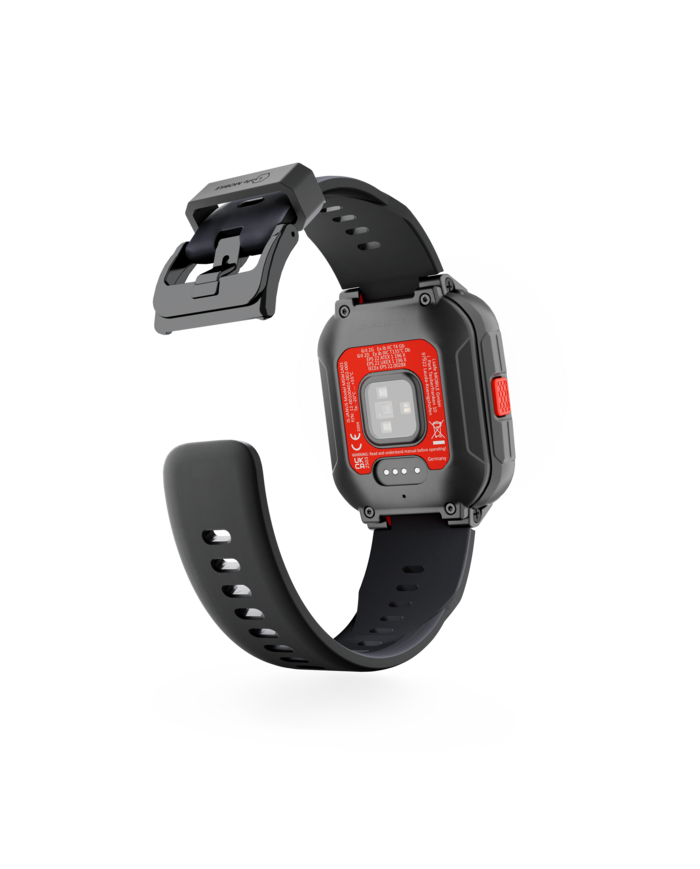

IS-SW1.1 Smartwatch for Zone 1/21
Ask for price
The world’s first explosion-protected industrial smartwatch for ATEX/IECEx zones 1/21 complements the i.safe MOBILE overall portfolio and can be used in a highly flexible way for employee safety and organisation in the company. Coupled via Bluetooth with the i.safe MOBILE devices, it functions as a supplementary hand-free display on the wrist for displaying important messages, hazard messages and measured values. The IS-SW1.1 enables vital signs to be monitored, an emergency call to be made with GPS location.
Advantages
- GPS positioning
- Collecting vital data
- NFC time recording and access control
- SOS key for emergencies
Description
Product Details
Technical features
Operating system
- ISM-OS
Memory
- 1 GB RAM
- 8 GB internal memory
Dimensions
- Size: 53,95 x 45,4 x 17,6 mm
- Weight: 70 g
Display
- 1,6” (4,064 cm)
Battery
- 500 mAh, 3,7 V
Connectivity
- Bluetooth 5.1
- GPS, Glonass, Beidou
- Near Field Communication
Types of protection
- IP68 dust-/waterproof
- Usable from -10 °C to +55 °C
Extra information
- Tensile test bracelet: 28 kgf (tear off)
Further features
- SOS key for loneworker protection; LWP ready (third party application required, based on country specific regulations)
- Accelerometer, Gyroscope, Magnetic, Pressure, SpO2, Pulse sensors
- Desktop Charger
- Vibration alarm
Approvals
ATEX (Europe) approved
- II 2G Ex ib IIC T4 Gb
- II 2D Ex ib IIIC T135°C Db
IECEx (International) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
NEC500 (North America) approved
- Class I Div. 1 Groups A, B, C, D, T4
- Class II Div. 1 Groups E, F, G, T4
- Class III Div. 1 T4
Japan-Ex (Japan) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
Contents included
- Smartwatch
- Desktop Charger
- i.safe PROTECTOR 2.0
- Power Adapter universal
- Safety Instructions
- Quick Start Manual
- Screwdriver
Full technical specification is available in Attachments.
Data sheet
| Display | 1,6" |
|---|---|
| Battery | 500 mAh |
| RAM | 1 GB |
| Internal memory | 8 GB |
| Operating system | ISM-OS |
