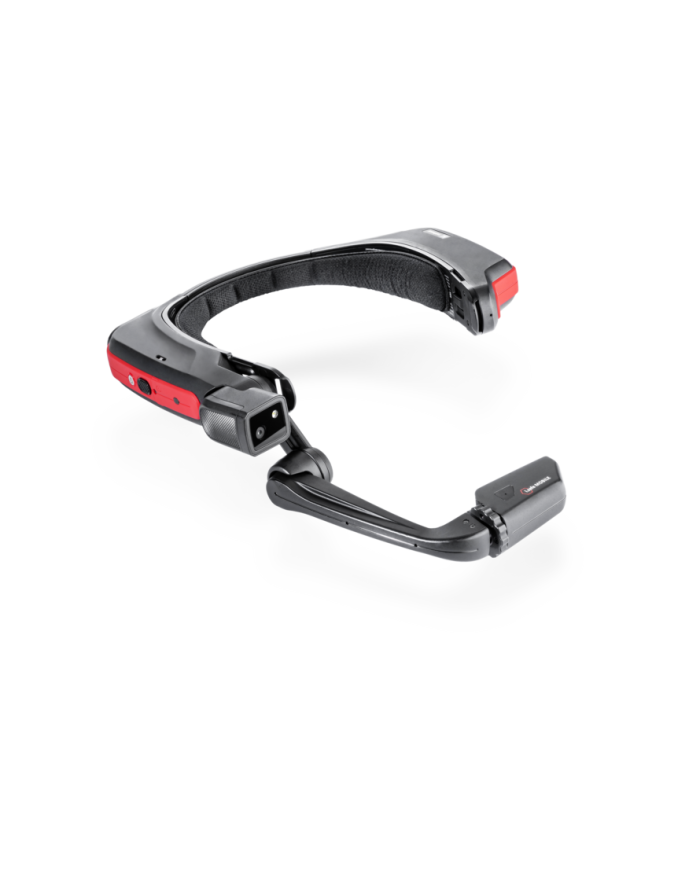

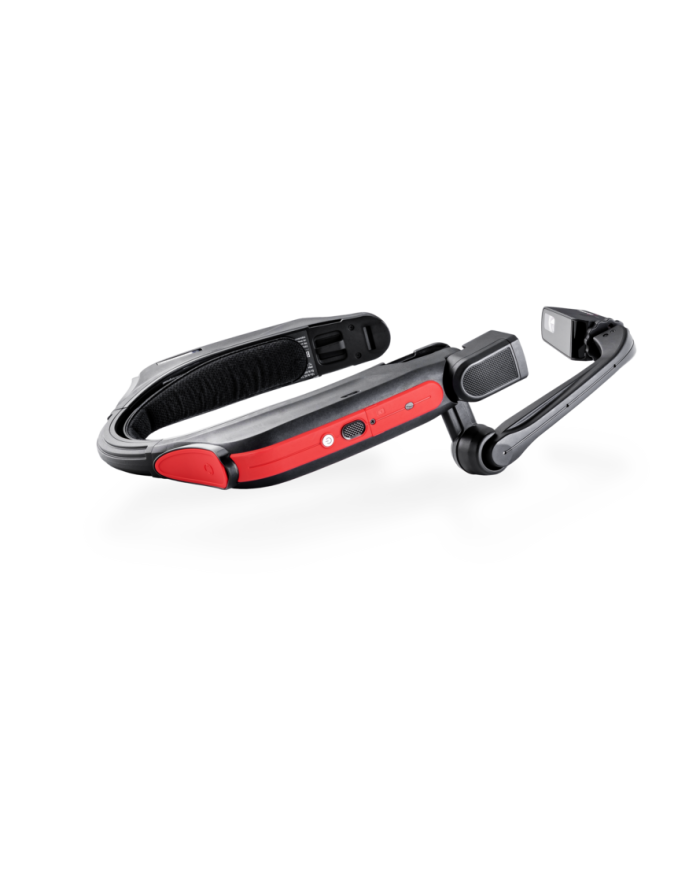

HMT-1Z1 Head Mounted Computer for Zone 1/21
Ask for price
The world’s first, voice-controlled Head Mounted Tablet for hands-free working in potentially explosive zones 1/21 or CSA Class I, II, III Division 1 is Android-based and has a high-resolution microdisplay. Thanks to its intuitive voice control and digital microphones with active noise suppression, the innovative mobile device is particularly suitable for highly complex remote support applications in noisy industrial environments.
Advantages
- Intuitive voice control for hands-free working
- Digital microphones with active noise cancellation for noisy work environments
- Clear, well arranged operation through high-resolution microdisplay
- PPE (Personal Protective Equipment) compatible
Description
Product Details
Technical features
Operating system
- Android 10 + WearHF hands-free interface
Processor
- Qualcomm Snapdragon SD625
Memory
- 2 GB RAM
- 16 GB internal memory
- microSD to 64 GB
Dimensions
- Size: 305,0 x 230,0 x 32,0 mm
- Weight: 425,1 g
Display
- 0,33” (0,8382 cm)
Camera
- 16 MP AF front
Connectivity
- Bluetooth 4.1 BLE
- GPS, Glonass, Beidou, Galileo
Types of protection
- IP66
- MIL-STD 810G
Further features
- Accelerometer, Gyroscope, Magnetic sensors
- micro-USB
Approvals
ATEX (Europe) approved
- II 2G Ex ib IIC T4 Gb
- II 2D Ex ib IIIC T135°C Db IP6X
IECEx (International) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db IP6X
NEC500 (North America) approved
- Class I Div. 1 Groups A, B, C, D, T4
- Class II Div. 1 Groups E, F, G
- Class III Div. 1
PCEC (China) approved
- Ex ib IIC T4 Gb
- Ex ibD 21 T135°C
EAC (Russia) approved
- 1Ex ib IIC T4 Gb X
- Ex ib IIIC T135°C Db X
IA (South Africa) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db IP6X
SANS Mining (South Africa) approved
- Ex ia I Ma IP65
INMETRO (Brazil) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db IP6X
KCs (South Korea) approved
- Ex ib IIC T4
- Ex ib IIIC T135°C
Japan-Ex (Japan) approved
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db IP6X
Contents included
- Head Mounted Tablet with integrated battery
- Power Adapter universal
- i.safe PROTECTOR 1.0
- Carrying Case
- Overhead Strap
- Rear Pad
- Hard Hat Clips for MSA Front Brim
- Safety Instructions
- Quick Start Manual
Full technical specification is available in Attachments.
Data sheet
| Display | 0,33" |
|---|---|
| Camera | 16 MP AF front |
| Battery | 3400 mAh |
| RAM | 2 GB |
| Internal memory | 16 GB |
| Operating system | Android |
