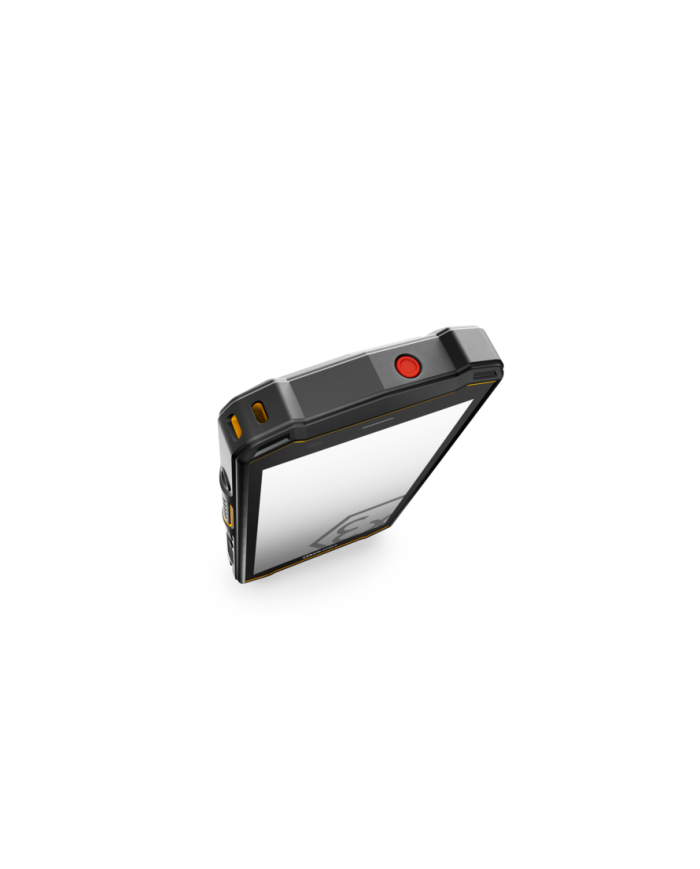

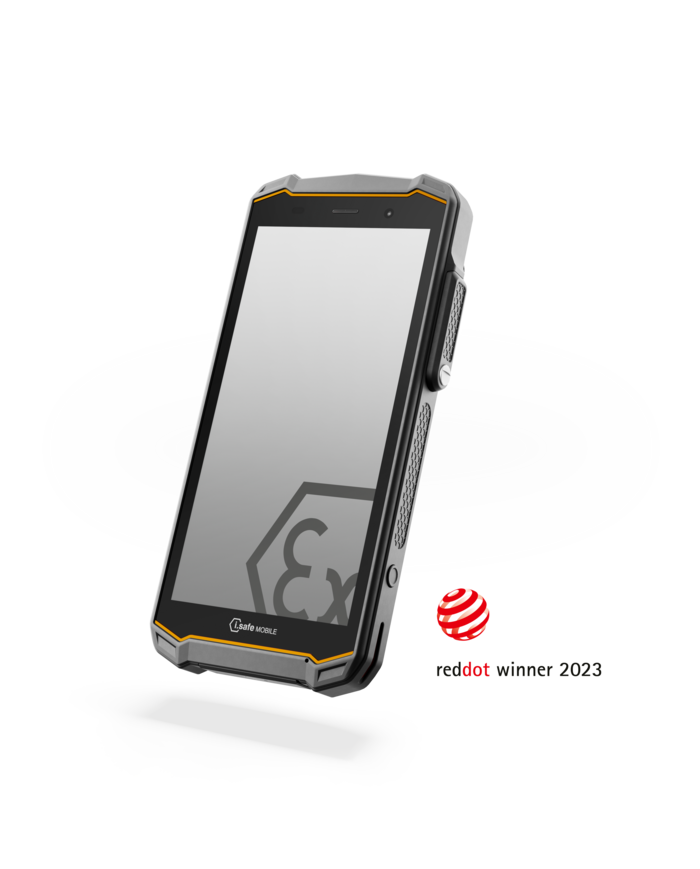

IS540.2 Smartphone for Zone 2/22
Ask for price
The 5G smartphone with a clear 6-inch full HD display is equipped with a high-end chipset, supports a wide range of frequency bands and offers the highest image quality through the 48 MP main camera. The high-quality processor ensures fast data processing for the most demanding industrial applications such as predictive maintenance. The 16-pin ISM interface provides a secure connection for approved accessories.
Advantages
- Amplified loudspeaker for noisy work environments
- Replaceable 4400 mAh battery
- Programmable side key (e.g. for PoC/PTT)
- Programmable red key (e.g. for lone worker protection/SOS)
Description
Product Details
Technical features
Operating system
- Android 14
Processor
- Qualcomm QCM6490 Octa Core
Memory
- 8 GB RAM
- 128 GB internal memory
- microSD to 128 GB
Frequencies
- 2G GSM 850/900/1800/1900 MHz
- 3G WCDMA B1/2/4/5/8
- 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71
- 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48
- 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
Dimensions
- Size: 180,0 x 84,9 x 20,6 mm
- Weight: 422,0 g
Display
- 6,0” (15,24 cm) Corning Gorilla Glass V3
- Usable with gloves
Battery
- 4400 mAh, 3,7 V
- Replaceable
Camera
- 48 MP AF rear
- 5 MP FF front
Connectivity
- Wi-Fi 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot
- Bluetooth 5.2
- GPS, A-GPS, Glonass, Beidou, Galileo
- Near Field Communication
Types of protection
- IP68 dust-/waterproof
- MIL-STD 810H
- Usable from -20 °C to +55 °C
Further features
- Multifunctional, lateral ISM interface for a quick and safe connection of additional devices
- Amplified loudspeaker
- Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors
- Dual-SIM (Nano-SIM + eSIM)
- USB-C, Desktop Charger, Multi Charger
Approvals
ATEX (Europe) approved
- II 3G Ex ic IIC T4 Gc
- II 3D Ex ic IIIC T135°C Dc
IECEx (International) approved
- Ex ic IIC T4 Gc
- Ex ic IIIC T135°C Dc
NEC500 (North America) approved
- Class I Div. 2 Groups A, B, C, D, T4
- Class II Div. 2 Groups F, G, T4
- Class III Div. 2, T4
KCs (South Korea) approved
- Ex ic IIC T4
PCEC (China) approved
- Ex ic IIC T4 Gc
- Ex ic IIIC T135°C Dc
TIIS (Japan) approved
- Ex ic IIC T4 Gc
- Ex ic IIIC T135°C Dc
IA (South Africa) approved
- Ex ic IIC T4 Gc
- Ex ic IIIC T135°C Dc
Contents included
- Smartphone
- Battery
- Power Adapter universal
- USB-C Cable
- Screwdriver
- Safety Instructions
- Quick Start Manual
- Display Protection Foil
Full technical specification is available in Attachments.
Data sheet
| Connectivity | 2G 3G 4G 5G |
|---|---|
| Display | 6,0" |
| Camera | 5 MP FF front 48 MP AF rear |
| Battery | 4400 mAh |
| RAM | 8 GB |
| Internal memory | 128 GB |
| Operating system | Android |
