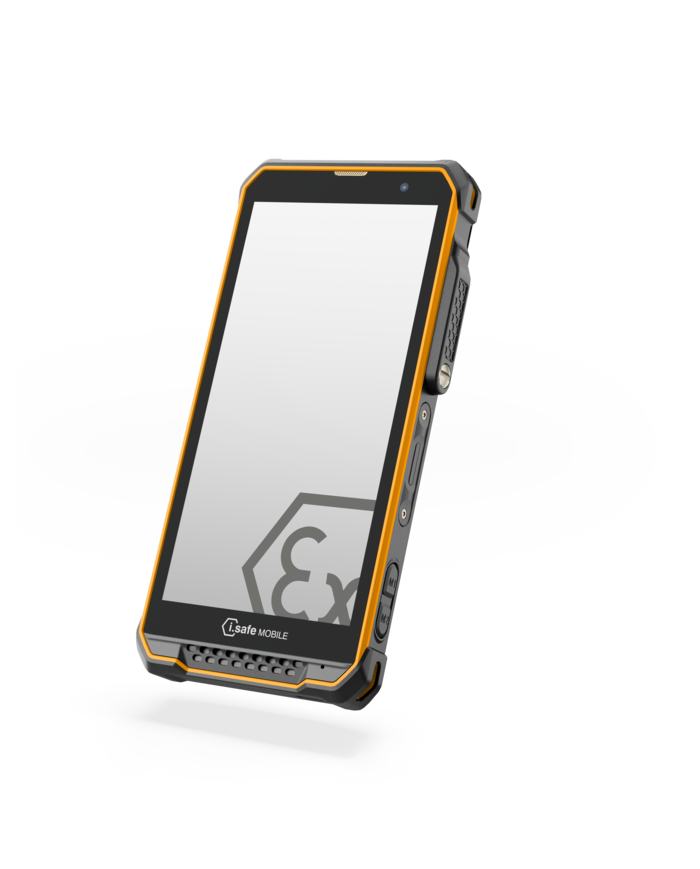

IS880.2 Smartphone for Zone 2/22
Ask for price
The slim and lightweight 4G LTE smartphone with Android™ 14 is equipped with a comprehensive feature package. The robust 5.5-inch smartphone has a side fingerprint sensor and a powerful chipset optimised for PTT/MCPTT, a PTT side key, a channel selector and an SOS key for emergency calls. The innovative loudspeaker design offers the best audio quality in the field. Suitable accessories can be connected via the 13-pin ISM interface of the MDM-compatible smartphone.
Advantages
- Amplified loudspeaker for noisy work environments
- Replaceable, 4500 mAh battery
- Programmable side key (e.g. for PoC/PTT)
- Programmable red key (e.g. for lone worker protection/SOS)
Description
Product Details
Technical features
Operating system
- Android 14
Processor
- Qualcomm Snapdragon SM6225 Octa Core
Memory
- 6 GB RAM
- 128 GB internal memory
- microSD to 128 GB
Frequencies
- 2G GSM 850/900/1800/1900 MHz
- 3G WCDMA B1/2/4/5/8
- 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B20/B28/B66
- 4G LTE-TDD: B38/B34/B39/B40/B41
- 4G LTE-TD: B34
Dimensions
- Size: 161,0 x 75,0 x 15,8 mm
- Weight: 285 g
Display
- 5,5” (13,97 cm) Rug Display Glass
- Usable with gloves
Battery
- 4500 mAh, 3,85 V
- Replaceable
Camera
- 50 MP AF rear
- 8 MP FF front
Connectivity
- Wi-Fi 2.4 GHz + Wi-Fi 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/v with hotspot
- Bluetooth 5.1
- GPS, A-GPS, Glonass, Beidou, Galileo
- Near Field Communication
Types of protection
- IP68 dust-/waterproof
- MIL-STD 810H
- Usable from -20 °C to +55 °C
Technical features
- Multifunctional, lateral ISM interface for a quick and safe connection of additional devices
- Function key red (function key assignable for different 3rd party application; e.g. loneworker protection)
- Side key (function key assignable for different 3rd party application; e.g. Push To Talk)
- Amplified loudspeaker -Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors
- Dual-Nano-SIM
- USB-C, Desktop Charger
Approvals
ATEX (Europe) approved
- II 3G Ex ic IIC T4 Gc
- II 3D Ex ic IIIC T135°C Dc
IECEx (International) approved
- Ex ic IIC T4 Gc
- Ex ic IIIC T135°C Dc
Contents included
- Smartphone
- Battery
- USB-C Cable
- Display Protection Foil
- Safety Instructions
Full technical specification is available in Attachments.
Data sheet
| Connectivity | 2G 3G 4G |
|---|---|
| Display | 5,5" |
| Camera | 8 MP FF front 50 MP AF rear |
| Battery | 4500 mAh |
| RAM | 6 GB |
| Internal memory | 128 GB |
| Operating system | Android |
