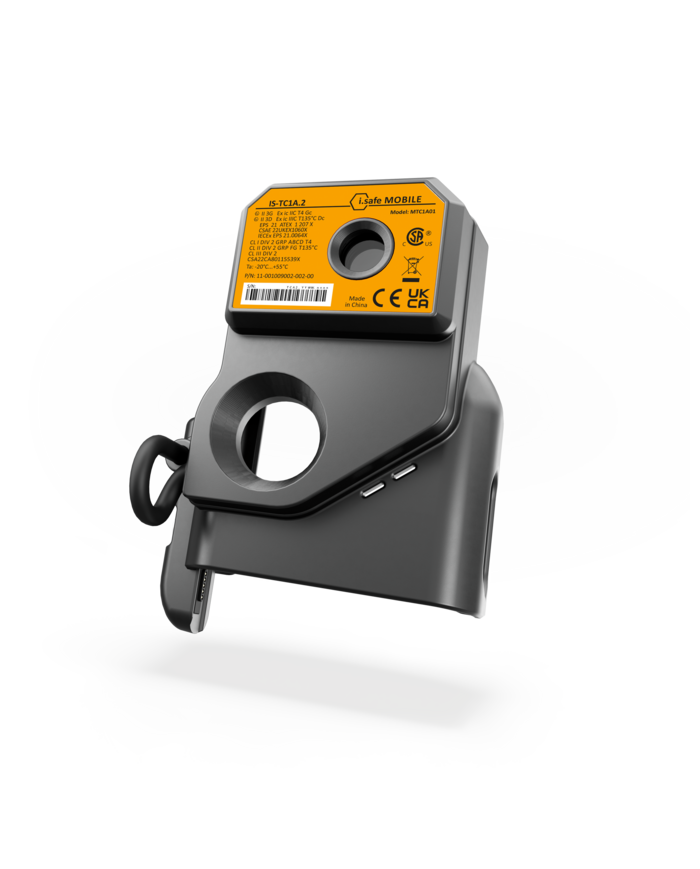

IS-TC1A.2 Thermal Camera for Zone 2/22
Ask for price
The thermal camera IS-TC1A.2, in combination with the industrial smartphone IS530.2 detects temperatures in the Ex-hazardous area from -40 °C to 330 °C in a matter of seconds via the Seek Thermal app (free download in Google Play Store). The thermal images and videos are processed and documented directly via the ISM interface of the IS530.2 smartphone.
Advantages
- Direct data transfer via multifunctional (ISM) interface
- Direct interface connection with the device, no Bluetooth necessary
- Capture, analyze and document thermal images
- Power supply via the connected device, therefore no battery necessary
Description
Product Details
Technical features
Sensor resolution
- 200 (h) x 150 (v)
- 30000 pixel
- FixFocus
- Digital zoom via App
Sensor sensitivity
- 65 mK (typical)
Frame rate
- <9 Hz bis 32 Hz
Scene dynamic range
- -40 °C bis 330 °C
Temperature accuracy
- ±7 °C and 7 % (at 5 °C to 140 °C)
- ±10 °C and 10 % (at 140 °C to 330 °C)
Field of view
- 35° (HFOV)
- 26° (VFOV)
Detection range
- Up to 300 m
Recognition range
- Up to 75 m
Identification range
- Up to 25 m
Dimensions
- Size: 112 x 82 x 50 mm
- Weight: 195 g
Types of protection
- IP67
- MIL-STD 810H
- Usable from -20 °C to +55 °C
Further features
- Power supply over the connected mobile device
Approvals
ATEX (Europe) approved
- II 3G Ex ic IIC T4 Gc
- II 3D Ex ic IIIC T135°C Dc
IECEx (International) approved
- Ex ic IIC T4 Gc
- Ex ic IIIC T135°C Dc
UKEX (United Kingdom) approved
- II 3G Ex ic IIC T4 Gb
- II 3D Ex ic IIIC T135°C Db
NEC500 (North America) approved
- Class I Div 2 Groups A, B, C, D, T4
- Class II Div 2 Groups F, G, T135ËšC
- Class III Div 2
Contents included
- Thermal camera
- Quick Start Manual
- Safety Instructions
Full technical specification is available in Attachments.
