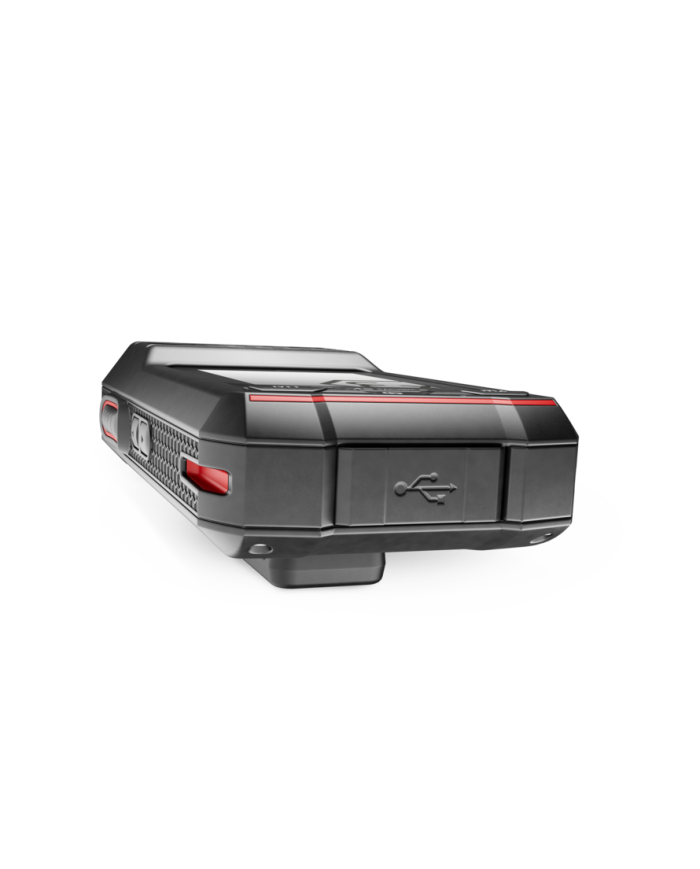

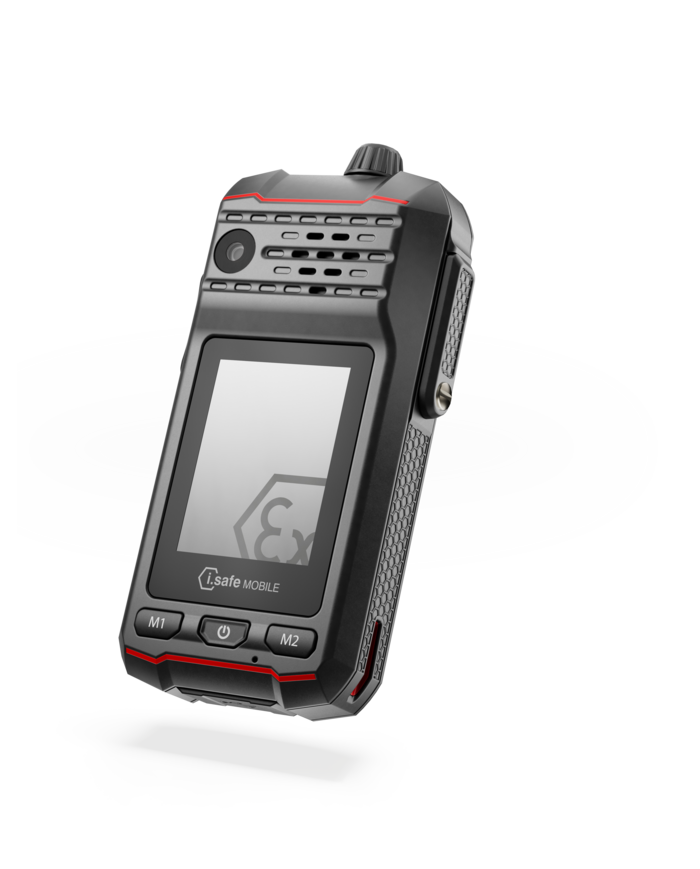

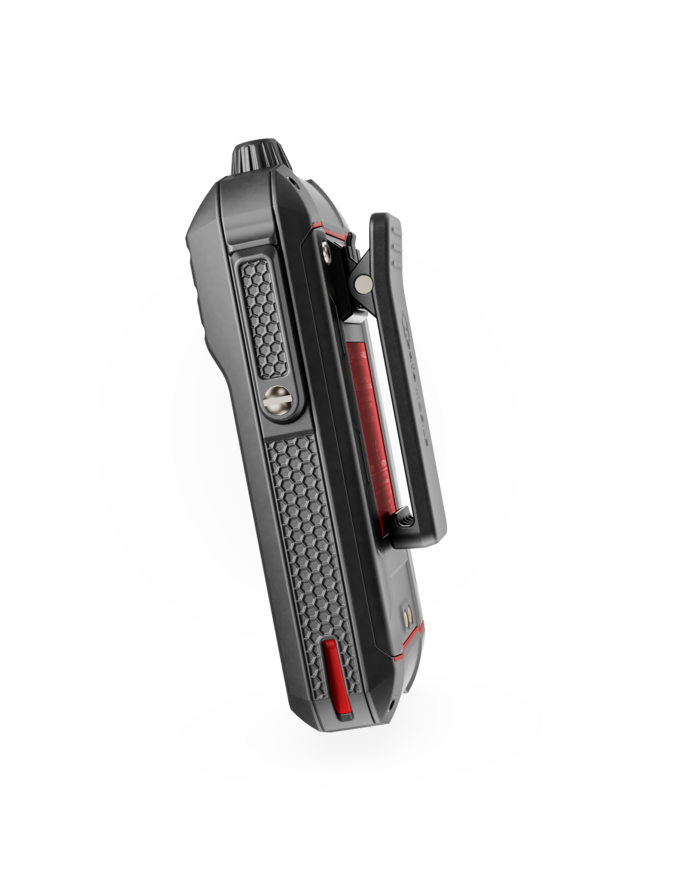

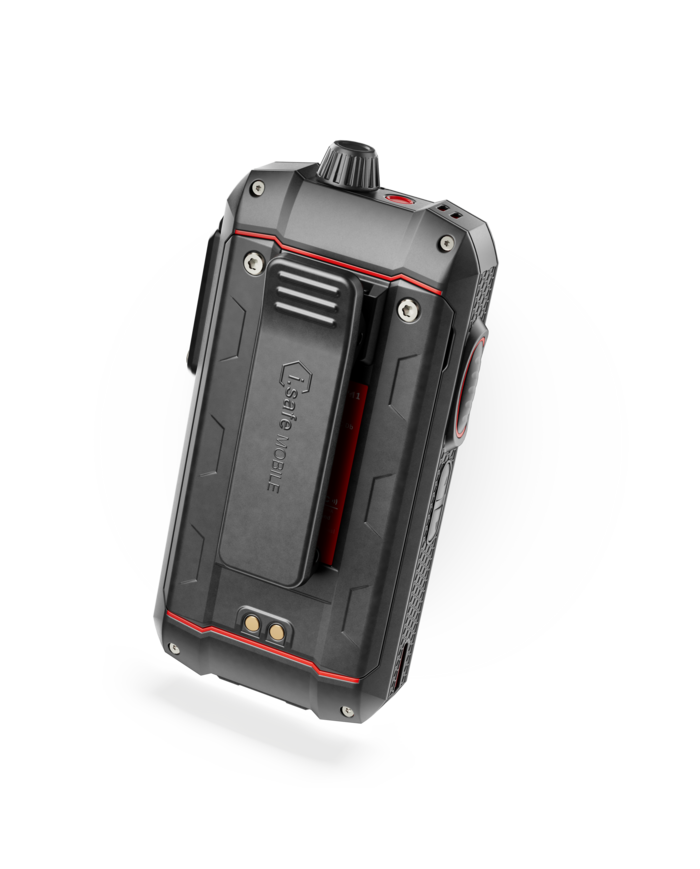

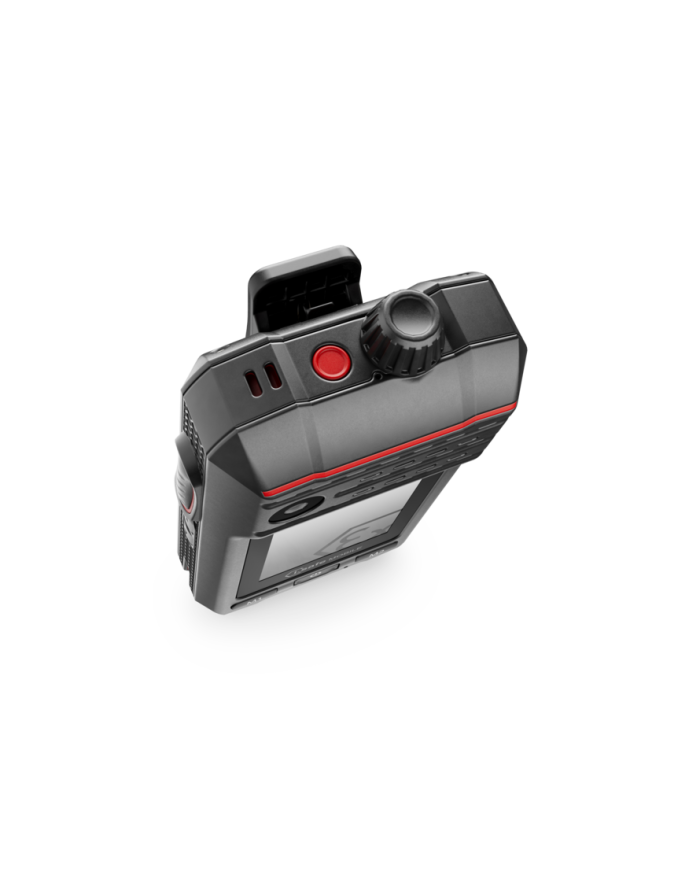

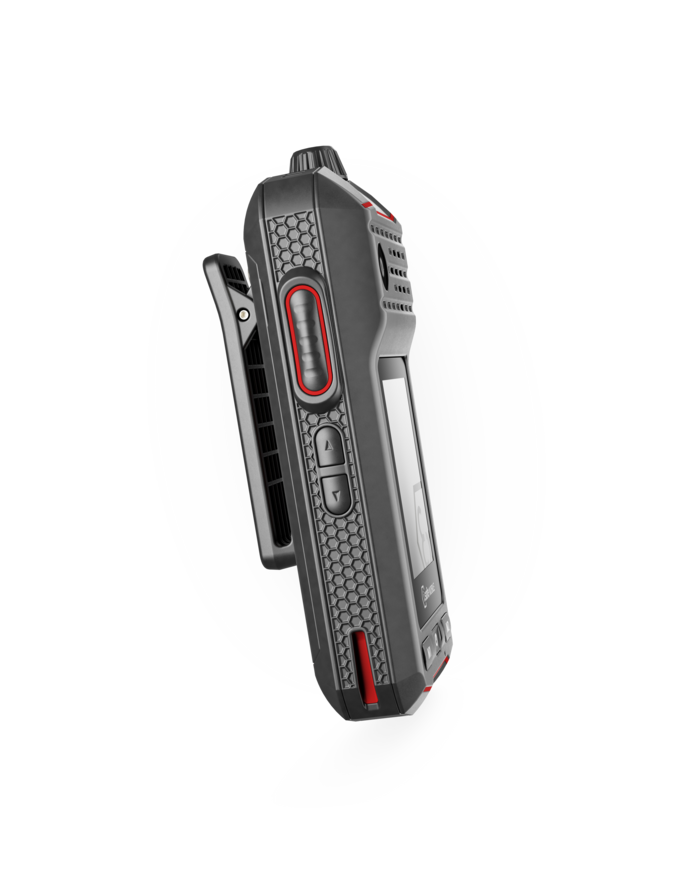

IS440.M1 5G Mining Radio
Ask for price
The 5G radio ensures secure and failure-free PoC communication via public or campus networks (4G or 5G) or Wi-Fi in Ex-Zone 1/21. A gateway makes the IS440.M1 interoperable with previous radio technologies and enables a seamless integration into existing systems. The 5G radio offers a user-orientated look & feel, a replaceable battery, large buttons for PTT, SOS, talkgroup selection, a powerful front speaker, an ISM interface and a functional fixing clip. For the secure integration of different radio technologies and seamless team communication in mining. You can download selected apps that are compatible with the device directly from the pre-installed App World and update them regularly. The App World contains product-related, selected push-to-talk and MDM solutions.
Advantages
- 8-pin ISM interface for optional audio accessories
- Integrated belt clip for safe carrying
- Channel selector e.g. for PTT applications
- Programmable side key (e.g. for PoC/PTT)
- Programmable red key (e.g. for lone worker protection/SOS)
- Powerful 4800 mAh battery for extreme runtime as an optional accessory
- Amplified loudspeaker for noisy work environments
- Additional programmable buttons, M1 & M2, assignable via Button App
Description
Product Details
Technical features
Operating system
- ISM-OS
Processor
- Qualcomm QCM6490 Octa Core
Memory
- 4 GB RAM
- 64 GB internal memory
Frequencies
- 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71/B68
- 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48
- 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
Dimensions
- Size: 136,6 x 70 x 32 mm
- Weight: 307 g
Display
- 2,4” (6,096 cm) Corning Gorilla Glass V3
Battery
- 2400 mAh
- Replaceable
Camera
- 8 MP AF front
Connectivity
- Wi-Fi 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot
- Bluetooth 5.2
- GPS, A-GPS, Glonass, Beidou, Galileo, NavIC, QZSS, SBAS
- Near Field Communication
Types of protection
- IP68 dust-/waterproof
- MIL-STD 810H
- Usable from -20 °C to +55 °C
Further features
- Amplified loudspeaker
- Accelerometer, Gyroscope, Magnetic, Pressure sensors
- Dual-SIM (Nano-SIM + eSIM)
- USB-C, Desktop Charger, Multi Charger
Approvals
ATEX Mining (Europe) approved
- I M1 Ex ia I Ma
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
IECEx Mining (International) approved
- Ex ia I Ma
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
Contents included
- 5G Radio
- Battery
- Display Protection Foil
- i.safe PROTECTOR 2.0
- Power Adapter universal
- Screwdriver
- Safety Instructions
Full technical specification is available in Attachments.
Data sheet
| Connectivity | 4G 5G |
|---|---|
| Display | 2,4" |
| Camera | 8 MP AF front |
| Battery | 2400 mAh |
| RAM | 4 GB |
| Internal memory | 64 GB |
| Operating system | ISM-OS |
