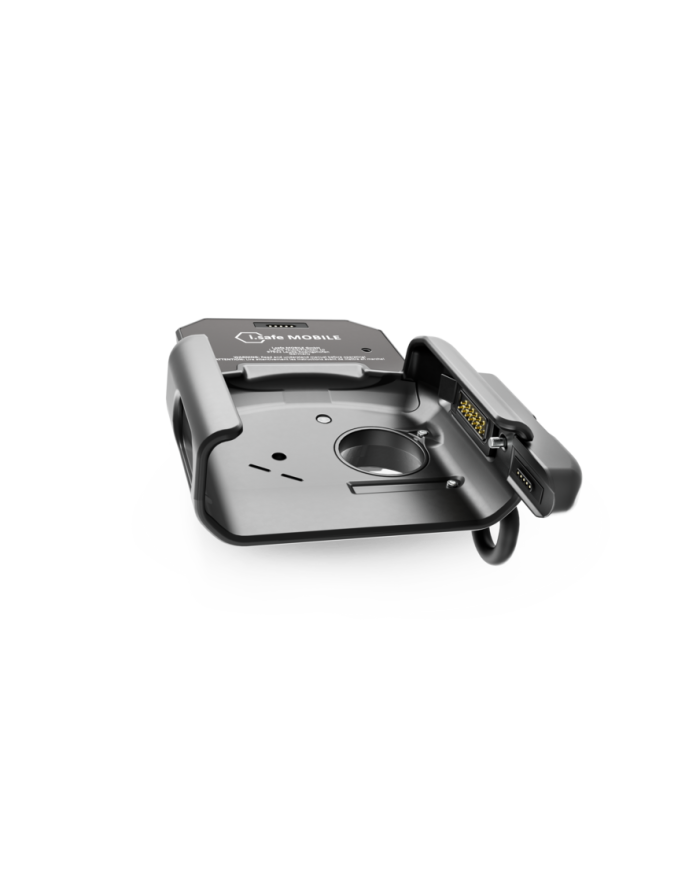

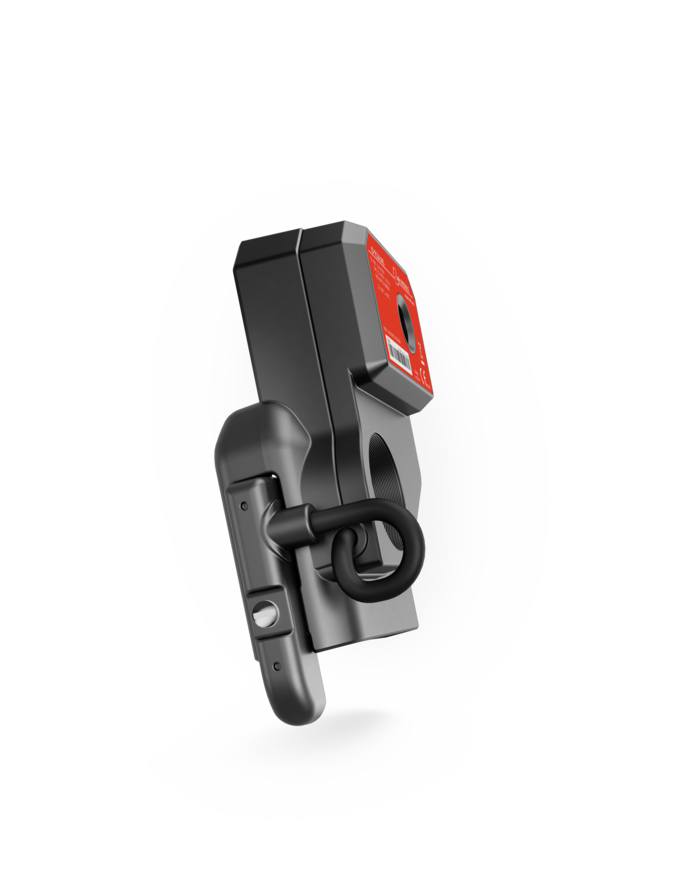

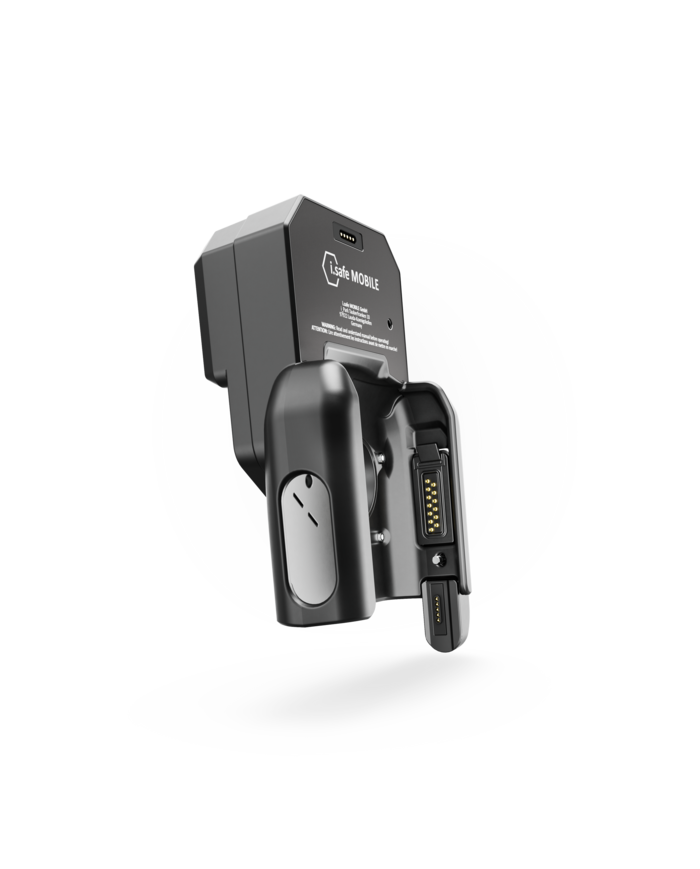

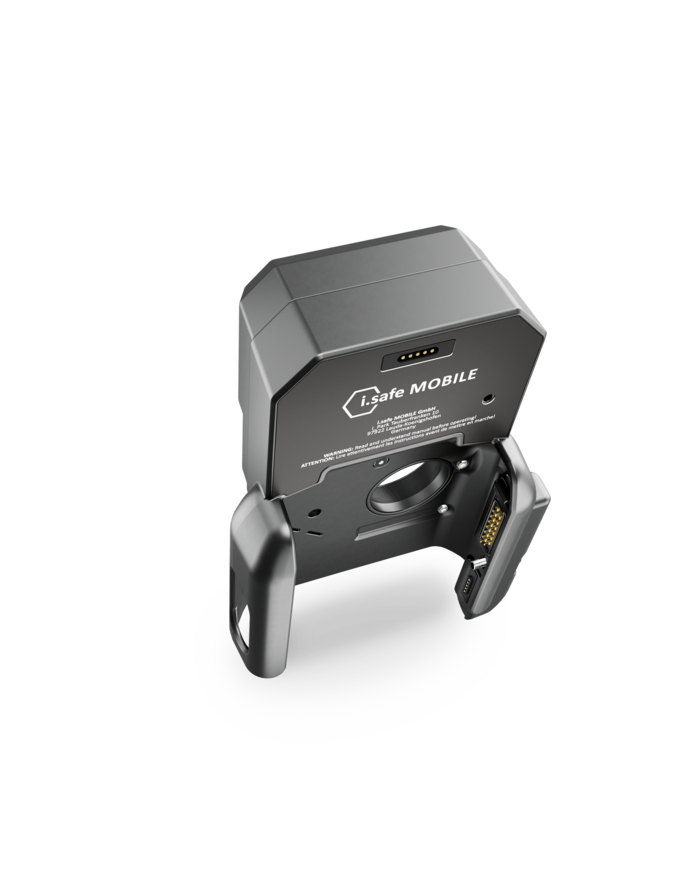

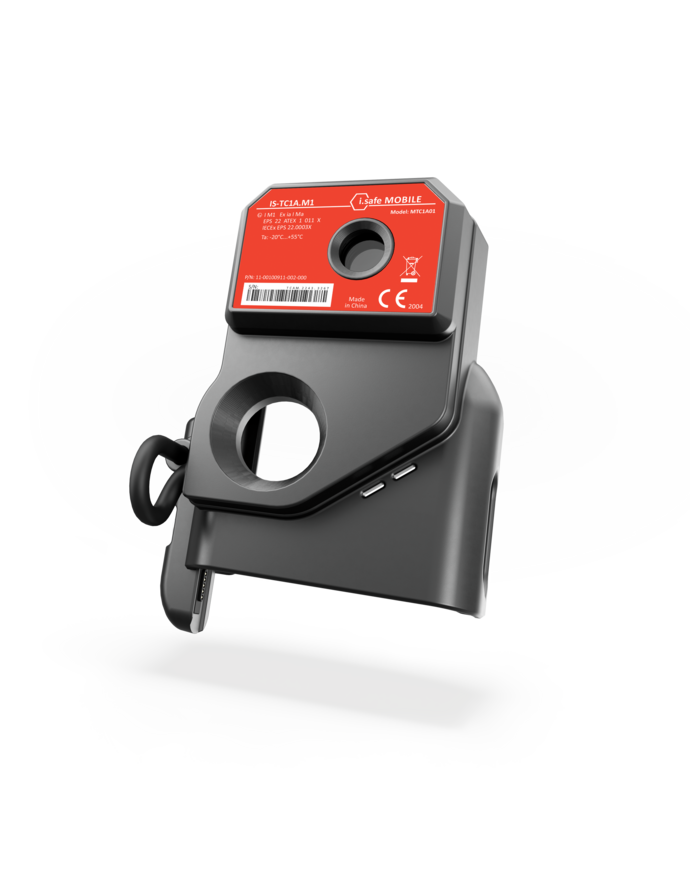

IS-TC1A.M1 Mining Thermal Camera
Ask for price

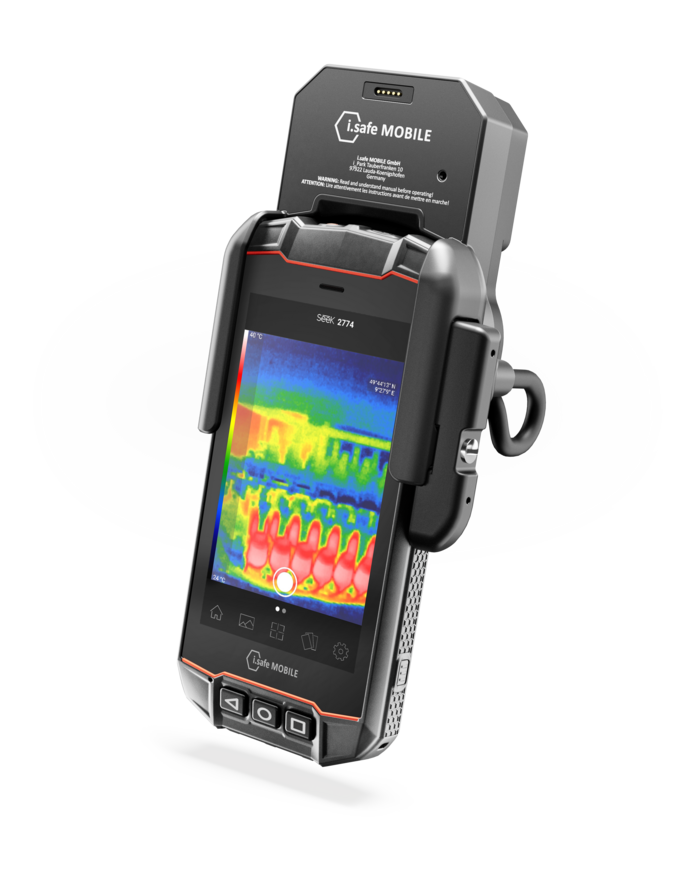

The thermal camera IS-TC1A.M1, in combination with the industrial smartphone IS530.M1 detects temperatures in the Ex-hazardous area from -40 °C to 330 °C in a matter of seconds via the Seek Thermal app (free download in Google Play Store). The thermal images and videos are processed and documented directly via the ISM interface of the IS530.M1 smartphone.
Advantages
- Power supply via the connected device, therefore no battery necessary
- Capture, analyze and document thermal images
- Direct interface connection with the device, no Bluetooth necessary
- Direct data transfer via multifunctional (ISM) interface
Description
Product Details
Technical features
Sensor resolution
- 200 (h) x 150 (v)
- 30000 pixel
- FixFocus
- Digital zoom via App
Sensor sensitivity
- 65 mK (typical)
Frame rate
- <9 Hz bis 32 Hz
Scene dynamic range
- -40 °C bis 330 °C
Temperature accuracy
- ±7 °C and 7 % (at 5 °C to 140 °C)
- ±10 °C and 10 % (at 140 °C to 330 °C)
Field of view
- 35° (HFOV)
- 26° (VFOV)
Detection range
- Up to 300 m
Recognition range
- Up to 75 m
Identification range
- Up to 25 m
Dimensions
- Size: 112 x 82 x 50 mm
- Weight: 195 g
Types of protection
- IP67
- MIL-STD 810H
- Usable from -20 °C to +55 °C
Further features
- Power supply over the connected mobile device
Approvals
ATEX Mining (Europe) approved
- I M1 Ex ia I Ma
- II 2G Ex ib IIC T4 Gb
- II 2D Ex ib IIIC T135°C Db
IECEx Mining (International) approved
- Ex ia I Ma
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
ANZEx Mining (Australia) approved
- Ex ia I Ma
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
Contents included
- Thermal camera
- Safety Instructions
- Quick Start Manual
Full technical specification is available in Attachments.
