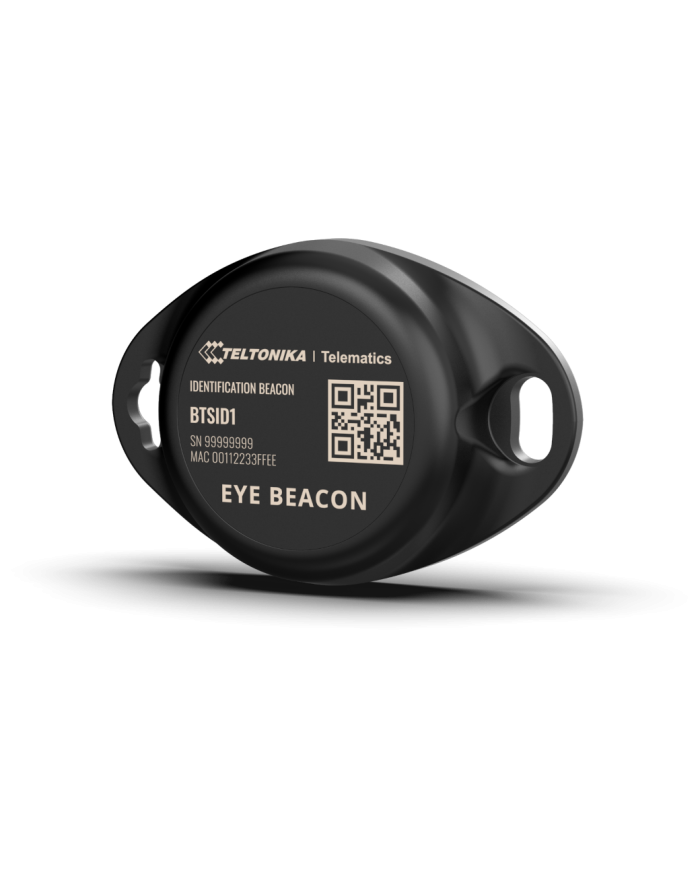

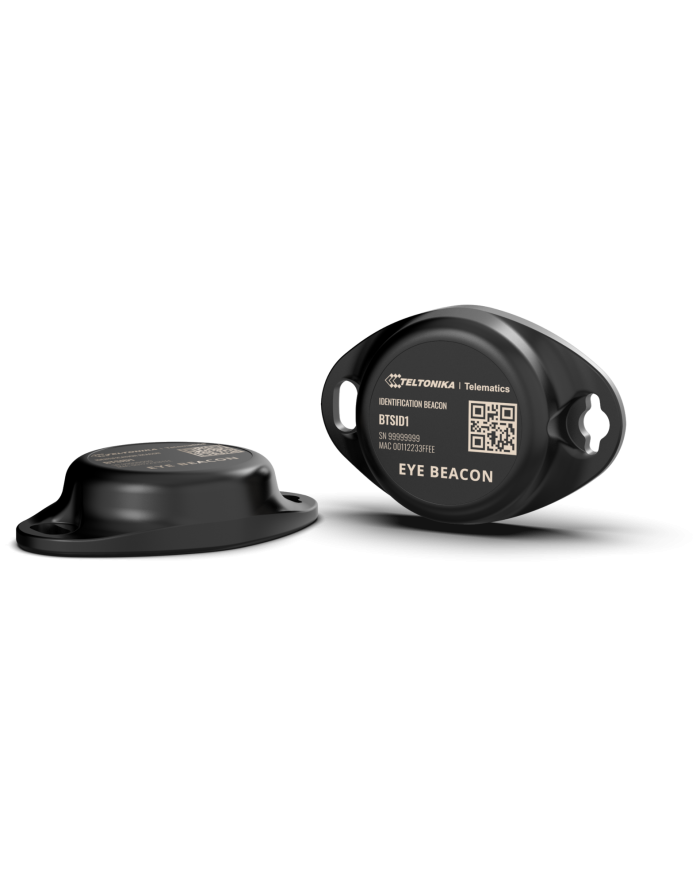

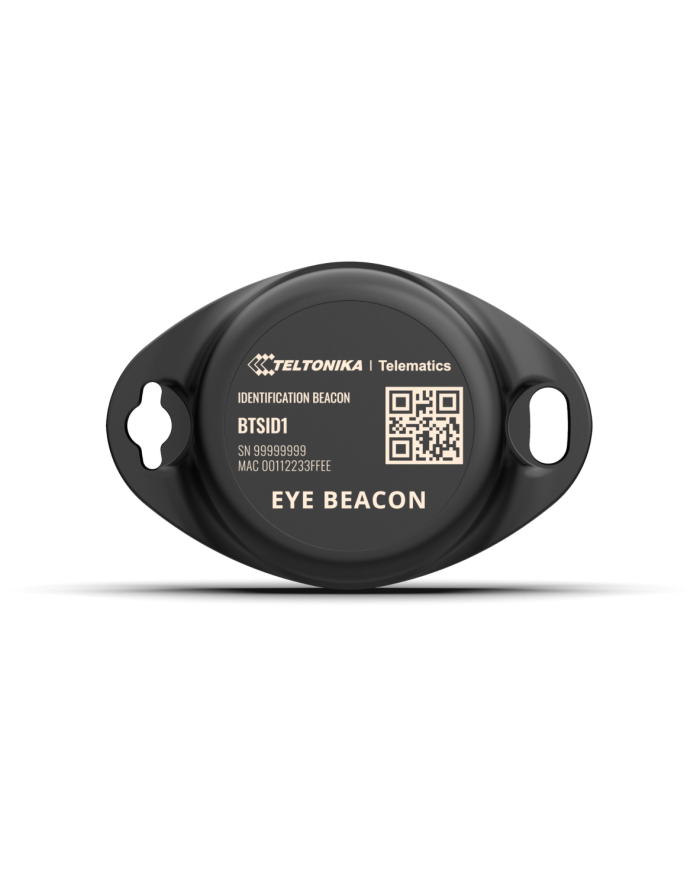

EYE Beacon
Ask for price
Bluetooth ID beacon to keep an eye on your assets
Long lifetime - 600 mAh capacity, 10+ years battery life
Water-resistant - IP67 protection casing with handy two mounting points
Mobile APP - Easy to use mobile app for configuration, data scanning and updating
Range - Up to 80 metres connectivity range via Bluetooth wireless technology
Description
Product Details
Wireless solutions open up new horizons for your business and help to keep an eye on your assets. Discover certified Bluetooth Low Energy ID beacon model from Teltonika with robust waterproof casing and a long-lifetime battery. The model designed for a low-cost fast and easy configuration and integration to save precious time, resources, and ensure accountability.
Perfect for traceability use cases, delivery tracking, monitoring of various movable objects in logistics (trailers, containers), agriculture (tractor attachments), and constructions (tools and inventory). Also, it suitable for indoor tracking solutions for items tracking in warehouses, hospitals, transport hubs and other types of industrial areas. EYE beacon supports iBeacon and Eddystone protocols. The device is fully compatible with the Teltonika firmware platform which provides extended functionality. Configure, scan, and update anytime anywhere with a dedicated Teltonika mobile app.
Easily locate your assets
Always know the whereabouts of your assets, such as goods, tools, and various equipment
Extraordinary battery life
Up to 10 years lifetime without the need to replace battery
Smart design
Compact EYE devices can be conveniently mounted in 4 different ways, while IP67-rated casing ensures reliability and durability
EYE APP
Intuitive and easy-to-use Teltonika mobile app for prompt configuration and data scanning
PRODUCT SPECIFICATIONS
Power
| Model | CR2450 |
| Type | Lithium, Manganese Dioxide (Li/MnO2) |
| Capacity | 600 mAh |
| Replaceable | No |
| Battery life |
Up to 4 years (Tx = 2 dBm; interval: 3 s) Up to 8 years, (Tx = 2 dBm; interval: 5 s), DEFAULT Up to 10 years (Tx = 2 dBm; interval: 10 s) |
Physical specification
| Dimensions | 56,6 x 38 x 13 mm (L x W x H) |
| Weight | 18 g |
Features
| Beacon ID | Yes |
| Sensors | Magnet detection |
| Scenarios | Tool tracking, RSSI indoor tracking, Equipment tracking, Mobile objects tracking, Medical equipment tracking, Smart agriculture, Smart manufacturing |
| Sleep mode | Hibernate |
| Configuration and firmware update | EYE APP |
Certification & Approvals
| Certificates | E-Mark (EU), FCC (USA), CE/RED (EU), RoHS (EU), REACH (EU), Anatel, IP rating, SIRIM QAS, SDPPI POSTEL |
Electronics
| Microcontroller | ST Microelectronics BlueNRG-2 |
| Bluetooth operating frequency | 2.402 - 2.480 GHz |
| Bluetooth antenna gain (peak) | 1.2 dBi |
Connectivity
| Bluetooth | Bluetooth 4.2 |
| Range | 80 m |
| Transmission power level | Up to 8 dBm |
| Sensitivity | -88 dBm |
Casing
| Ingress protection | IP67 |
| Mounting | Two holes to screw/leash/strip, tape |
| Marking | Available branding customisation upon request |
Environmental requirements
| Humidity (non-condensing) | From 0% to 100% |
| Operational temperature | -20°C / +60°C (-4°F / +140°F) |
Protocol compatibility
| iBeacon |
Yes* *EYE APP on iOS doesn’t show devices with iBeacon protocol |
| Eddystone | Yes |
| Sensors (custom) | Yes |
