EYE Beacon ATEX
Ask for price
Bluetooth ID beacon to keep an eye on your assets in hazardous environment
Long lifetime - 600 mAh capacity, up to 10 years long battery life
Water-resistant - IP67 protection casing with handy two mounting points
Mobile APP - Easy to use mobile app for configuration, data scanning, and updating
Range - Up to 80 metres connectivity range via Bluetooth wireless technology
Description
Product Details

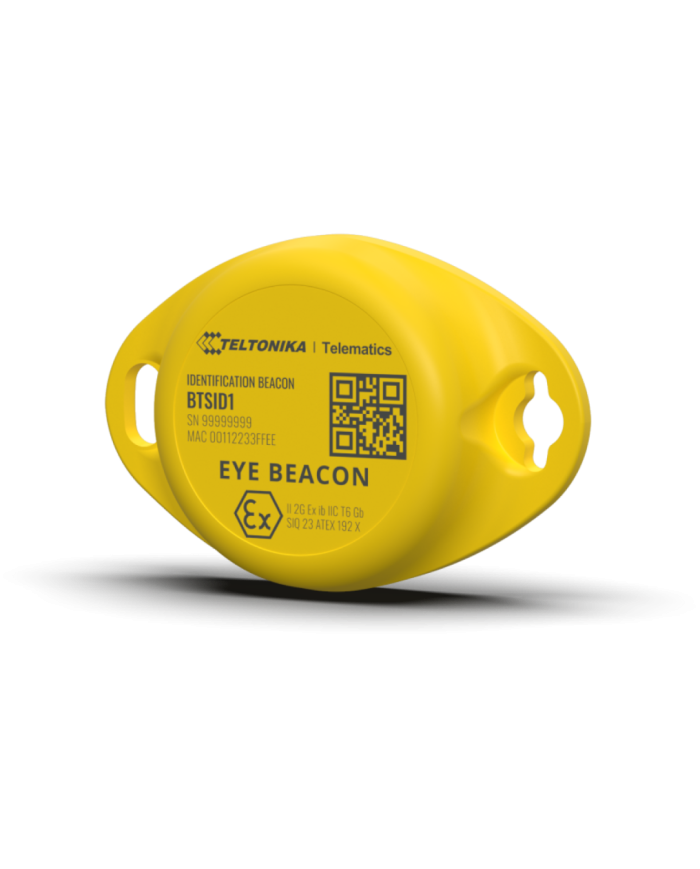

Introducing the EYE Beacon ATEX, a Bluetooth Low Energy beacon designed specifically for use in hazardous environments. This device is certified for ATEX Zone 1, making it ideal for industries such as oil and gas and chemicals manufacturing, where safety and compliance are paramount.
Constructed with extremely safe components that meet stringent ATEX standards, the EYE Beacon ATEX ensures reliable operation in high-risk areas. It is engineered to help locate equipment, personnel, cargo, and similar goods, whether indoor or in transit. With a long battery life of up to 10 years, this beacon is a robust solution for long-term monitoring and asset management in challenging industrial settings.
Locate your assets in hazardous environment
Always know the whereabouts of your assets, including the facilities in oil, gas, and chemical industries
Enhanced robustness
ATEX-certified EYE devices are additionally reinforced for use in challenging conditions
Smart design
Compact EYE devices can be conveniently mounted in 4 different ways, while IP67-rated casing ensures reliability and durability
EYE APP
Intuitive and easy-to-use Teltonika mobile app for prompt configuration and data scanning
PRODUCT SPECIFICATIONS
Power
| Model | CR2450 |
| Type | Lithium, Manganese Dioxide (Li/MnO2) |
| Capacity | 600 mAh |
| Replaceable | No |
| Battery life |
Up to 4 years (Tx = 2 dBm; interval: 3 s) Up to 8 years, (Tx = 2 dBm; interval: 5 s), DEFAULT Up to 10 years (Tx = 2 dBm; interval: 10 s) |
Physical specification
| Dimensions | 56.6 x 38.0 x 13.0 mm (L x W x H) |
| Weight | 18 g |
Features
| Beacon ID | Yes |
| Sensors | Magnet detection |
| Scenarios | Tool tracking, RSSI indoor tracking, Equipment tracking, Mobile objects tracking, Medical equipment tracking, Smart agriculture, Smart manufacturing |
| Sleep mode | Hibernate |
| Configuration and firmware update | EYE APP |
Certification & Approvals
| Certificates | E-Mark (EU), FCC (USA), CE/RED (EU), RoHS (EU), REACH (EU), Anatel, IP rating, SIRIM QAS, SDPPI POSTEL, ATEX ZONE 1 |
Electronics
| Microcontroller | ST Microelectronics BlueNRG-2 |
| Bluetooth operating frequency | 2.402 - 2.480 GHz |
| Bluetooth antenna gain (peak) | 1.2 dBi |
Connectivity
| Bluetooth | Bluetooth 4.2 |
| Range | 80 m |
| Transmission power level | Up to 8 dBm |
| Sensitivity | -88 dBm |
Casing
| Ingress protection | IP67 |
| Mounting | Two mounting points on each side |
| Marking | Available branding customisation upon request |
Environmental requirements
| Humidity (non-condensing) | From 0% to 100% |
| Operational temperature | -20 °C / +60 °C (-4 °F / +140 °F) |
Protocol compatibility
| iBeacon |
Yes* *EYE APP on iOS doesn’t show devices with iBeacon protocol |
| Eddystone | Yes |
| Sensors (custom) | Yes |
