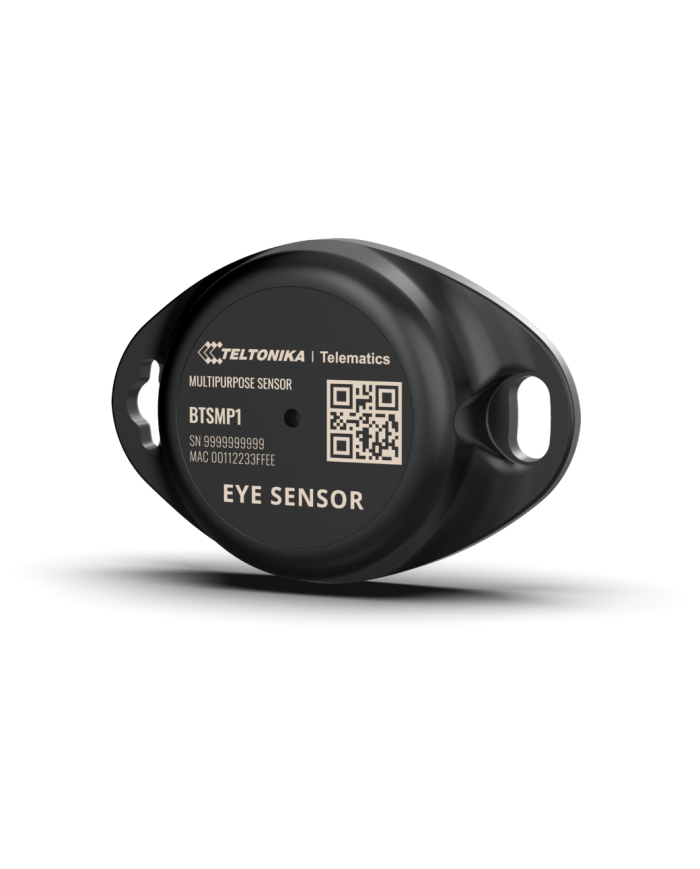

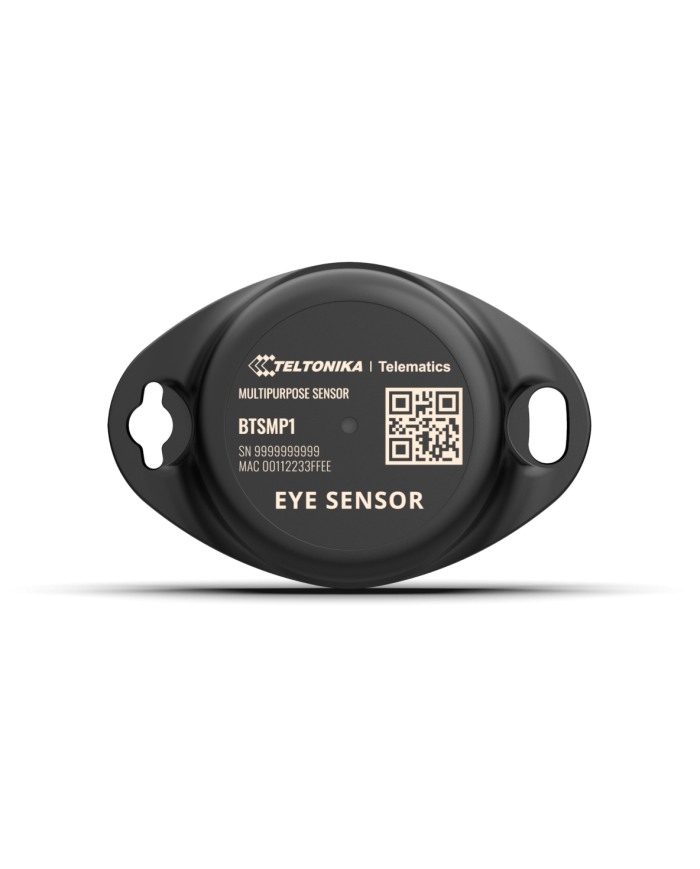

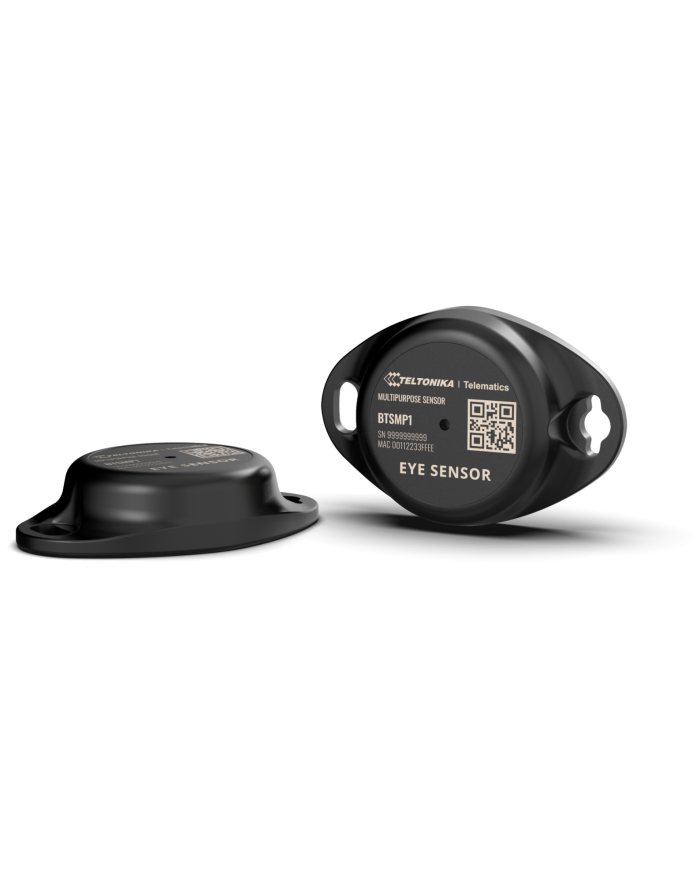

EYE Sensor
Ask for price
Bluetooth sensor to keep an eye on your assets by monitoring temperature, humidity, movement, and magnet status
Long lifetime - 600 mAh capacity, 5+ years long battery life
Water-resistant - IP67 protection casing with handy two mounting points
Mobile APP - Easy to use mobile app for configuration, data scanning, and updating
4 sensors set - Temperature, Humidity, Movement, Magnet detection sensors
Description
Product Details
Wireless solutions open up new horizons for your business and help to keep an eye on your assets and their essential parameters. Discover our certified Bluetooth Low Energy ID sensor model from Teltonika with a robust lightweight casing and a long-lifetime battery. The model designed for a low-cost fast and easy configuration and integration to save precious time, resources, ensure timely monitoring and accountability.
Perfect for traceability use cases, delivery tracking, monitoring of various movable objects in logistics (trailers, containers), agriculture (tractor attachments), and constructions (tools and inventory). Sensors data makes it especially suitable for cold chain refrigerator use cases. The built-in accelerometer can detect item movement, pitch and roll of the device. Magnet detection can be used for wireless open/close detection and notifications such as trailer door events, etc. EYE sensor supports iBeacon and Eddystone protocols. The device is fully compatible with the Teltonika firmware platform which provides extended functionality. Configure, scan, and update anytime anywhere with a dedicated Teltonika mobile app.
Precise temperature monitoring
Helping to ensure proper conditions in cold-chain logistics and various indoor environments
Movement and door opening detection
Know when your assets are on the move and the status of doors - opened or closed
Smart design
Compact EYE devices can be conveniently mounted in 4 different ways, while IP67-rated casing ensures reliability and durability
EYE APP
Intuitive and easy-to-use Teltonika mobile app for prompt configuration and data scanning
PRODUCT SPECIFICATIONS
Power
| Model | CR2450 |
| Type | Lithium, Manganese Dioxide (Li/MnO2) |
| Capacity | 600 mAh |
| Replaceable | No |
| Battery life |
Up to 2.5 years (Tx = 2 dBm; interval: 3s) Up to 4 years (Tx = 2 dBm; interval: 5s), DEFAULT Up to 5 years (Tx = 2 dBm; interval: 10s) |
Physical specification
| Dimensions | 56.6 x 38.0 x 13.0 mm (L x W x H) |
| Weight | 18 g |
Features
| Beacon ID | Yes |
| Sensors |
Temperature Humidity Movement Magnet detection |
| Scenarios | Temperature tracking, Mobile objects tracking, Door status monitoring, Management of heavy-duty vehicles, Goods tracking |
| Sleep mode | Hibernate |
| Configuration and firmware update | EYE APP |
Certification & Approvals
| Certificates | E-Mark (EU), FCC (USA), CE/RED (EU), RoHS (EU), REACH (EU), Anatel, IP rating, SIRIM QAS, SDPPI POSTEL |
Electronics
| Microcontroller | ST Microelectronics BlueNRG-2 |
| Bluetooth operating frequency | 2.402 - 2.480 GHz |
| Bluetooth antenna gain (peak) | 1.2 dBi |
Connectivity
| Bluetooth | Bluetooth 4.2 |
| Range | 80 m |
| Transmission power level | Up to 8 dBm |
| Sensitivity | -88 dBm |
Casing
| Ingress protection | IP67 |
| Mounting | Two mounting points on each side |
| Marking | Available branding customisation upon request |
Environmental requirements
| Humidity (non-condensing) | From 0% to 100% |
| Operational temperature | -20 °C / +60 °C (-4 °F / +140 °F) |
Protocol compatibility
| iBeacon |
Yes* *EYE APP on iOS doesn’t show devices with iBeacon protocol |
| Eddystone | Yes |
| Sensors (custom) | Yes |
