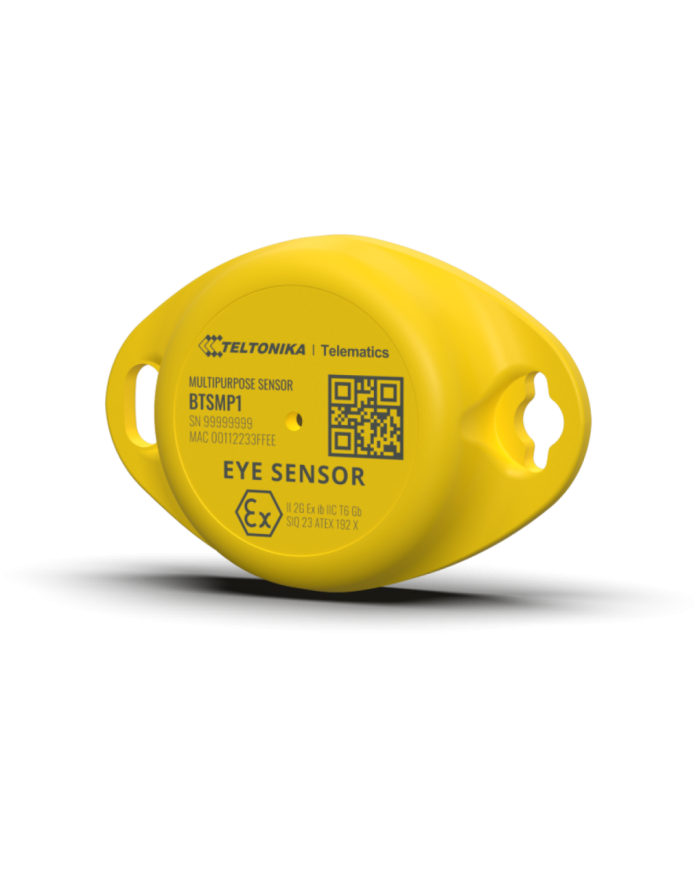

EYE Sensor ATEX
Ask for price
Bluetooth sensor to keep an eye on your assets by monitoring temperature, humidity, movement, and magnet status in hazardous environment
Long lifetime - 600 mAh capacity, up to 5 years long battery life
Water-resistant - IP67 protection casing with handy two mounting points
Mobile APP - Easy to use mobile app for configuration, data scanning, and updating
4 sensors set - Temperature, Humidity, Movement, Magnet detection sensors
Description
Product Details
Introducing the EYE Sensor ATEX, a Bluetooth Low Energy sensor designed for precise tracking and monitoring in hazardous environments. Certified for ATEX Zone 1, this sensor is perfectly suited for industries such as oil and gas and chemicals manufacturing, where robust safety and compliance standards are critical.
Equipped with temperature, humidity, magnet detection and movement sensors, the EYE Sensor ATEX provides comprehensive monitoring capabilities. It ensures reliable operation in high-risk areas, thanks to components that meet stringent ATEX requirements. Engineered to monitor as well as track equipment, personnel, cargo, and similar goods, whether indoors or in transit, it offers a dependable solution for detailed insight into the conditions affecting your assets. With a battery life of up to 5 years, this sensor supports long-term monitoring and asset management in challenging industrial settings.
Monitoring your assets in hazardous environment
Precise temperature measurement, asset movement and door status detection in various industries, including oil, gas, and chemical facilities
Enhanced robustness
ATEX-certified EYE devices are additionally reinforced for use in challenging conditions
Smart design
Compact EYE devices can be conveniently mounted in 4 different ways, while IP67-rated casing ensures reliability and durability
EYE APP
Intuitive and easy-to-use Teltonika mobile app for prompt configuration and data scanning
PRODUCT SPECIFICATIONS
Power
| Model | CR2450 |
| Type | Lithium, Manganese Dioxide (Li/MnO2) |
| Capacity | 600 mAh |
| Replaceable | No |
| Battery life |
Up to 2.5 years (Tx = 2 dBm; interval: 3s) Up to 4 years (Tx = 2 dBm; interval: 5s), DEFAULT Up to 5 years (Tx = 2 dBm; interval: 10s) |
Physical specification
| Dimensions | 56.6 x 38.0 x 13.0 mm (L x W x H) |
| Weight | 18 g |
Features
| Beacon ID | Yes |
| Sensors |
Temperature Humidity Movement Magnet detection |
| Scenarios | Temperature tracking, Mobile objects tracking, Door status monitoring, Management of heavy-duty vehicles, Goods tracking |
| Sleep mode | Hibernate |
| Configuration and firmware update | EYE APP |
Certification & Approvals
| Certificates | E-Mark (EU), FCC (USA), CE/RED (EU), RoHS (EU), REACH (EU), Anatel, IP rating, SIRIM QAS, SDPPI POSTEL, ATEX ZONE 1 |
Electronics
| Microcontroller | ST Microelectronics BlueNRG-2 |
| Bluetooth operating frequency | 2.402 - 2.480 GHz |
| Bluetooth antenna gain (peak) | 1.2 dBi |
Connectivity
| Bluetooth | Bluetooth 4.2 |
| Range | 80 m |
| Transmission power level | Up to 8 dBm |
| Sensitivity | -88 dBm |
Casing
| Ingress protection | IP67 |
| Mounting | Two mounting points on each side |
| Marking | Available branding customisation upon request |
Environmental requirements
| Humidity (non-condensing) | From 0% to 100% |
| Operational temperature | -20 °C / +60 °C (-4 °F / +140 °F) |
Protocol compatibility
| iBeacon |
Yes* *EYE APP on iOS doesn’t show devices with iBeacon protocol |
| Eddystone | Yes |
| Sensors (custom) | Yes |
