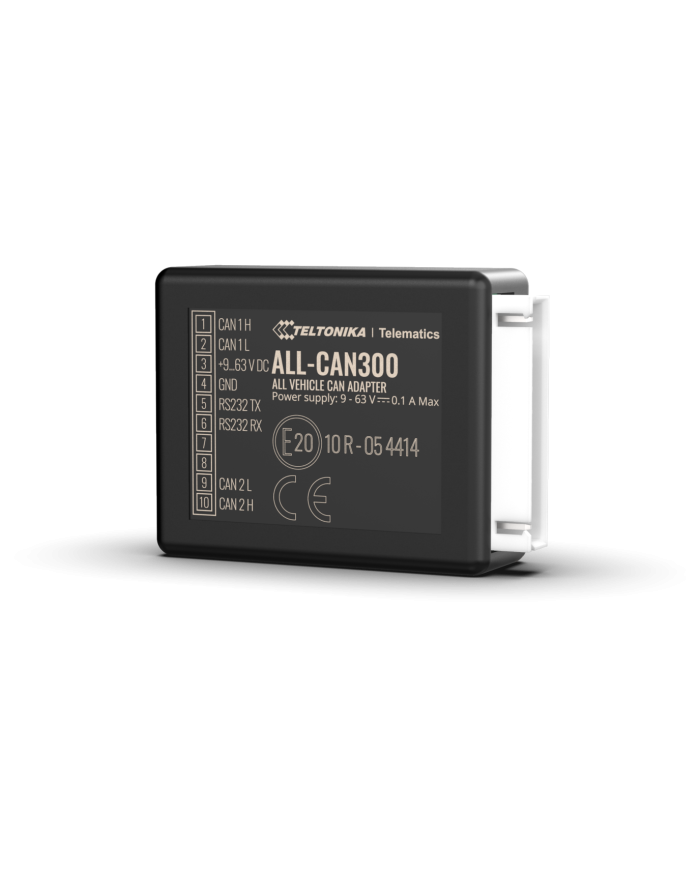

ALL-CAN300 CAN bus adapter
Ask for price
CAN adapter for reading CAN bus data from any vehicle and any kind of transport
ALL-CAN300 is designed to acquire CAN Bus data from:
- Light vehicles (including electric cars)
- Trucks
- Buses and coaches
- Agriculture transport
- Special transport (Utility, Forest, Construction machinery)
The communication network can provide a wide range of data that can be used to reduce running costs, improve driver safety, streamline maintenance processes, and support environmental responsibility.
Description
Product Details
ALL-CAN300 is designed to acquire data from special transport, agriculture and construction transport, light vehicles, vans, trucks and buses. With ALL-CAN300 you can easily get basic and additional 100 parameters from on-board computer such as door status, AdBlue level, Oil pressure/level, engine lifetime, airbag.
PRODUCT SPECIFICATIONS
Power
| Input voltage range | 9 - 63.5 V DC |
| Power consumption |
At 12 V < 0.4 mA (Standby) At 12 V < 23.5 mA (Working) At 24 V < 0.33 mA (Standby) At 24 V < 11.5 mA (Working) |
Physical specification
| Dimensions | 41 x 33 x 14.5 mm |
| Weight | 55 g |
Operating environment
| Operating temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | Max 85 % non-condensing |
Interface
| LED indication | 1 status LED light |
Suitable for
| Supported by | FMB1YX, FMU1YX, FMC1YX, FMM1YX, FM36YX, FM63YX, FMB64X, FMC64X, FMM64X series |
Technical data
| Features* |
Total fuel consumption Fuel level (Dashboard) Vehicle mileage Door status Engine speed (RPM) Oil pressure/level status Acceleration position Engine temperature Vehicle speed Accelerator pedal position VIN number Lights status CNG level Total CNG consumption Engine is working on CNG status AdBlue level (Dashboard) Webasto Simple Tacho Seat belt status Check engine And more… *Number of parameters depends on vehicle model, year and equipment. |
