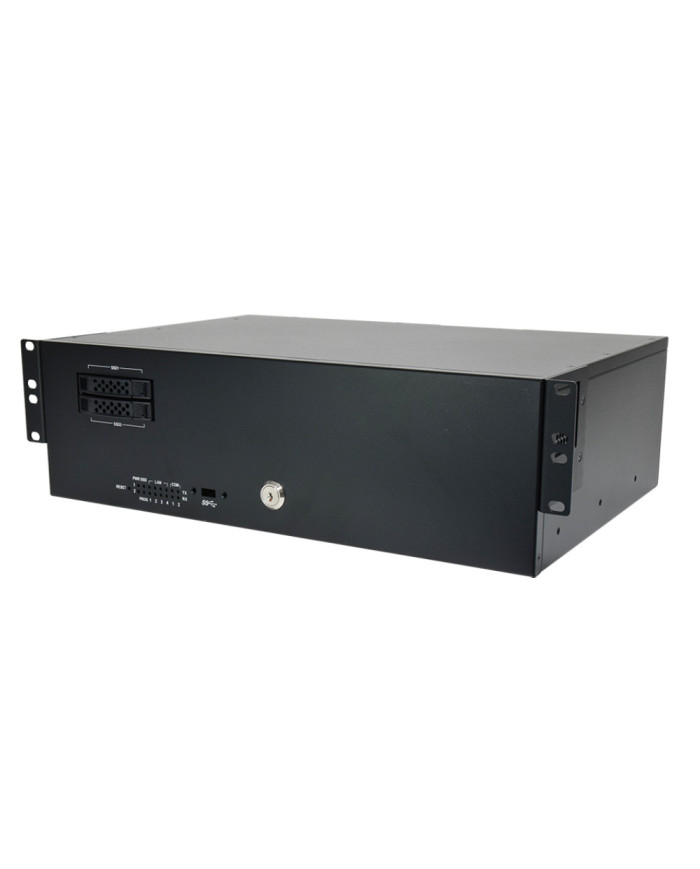

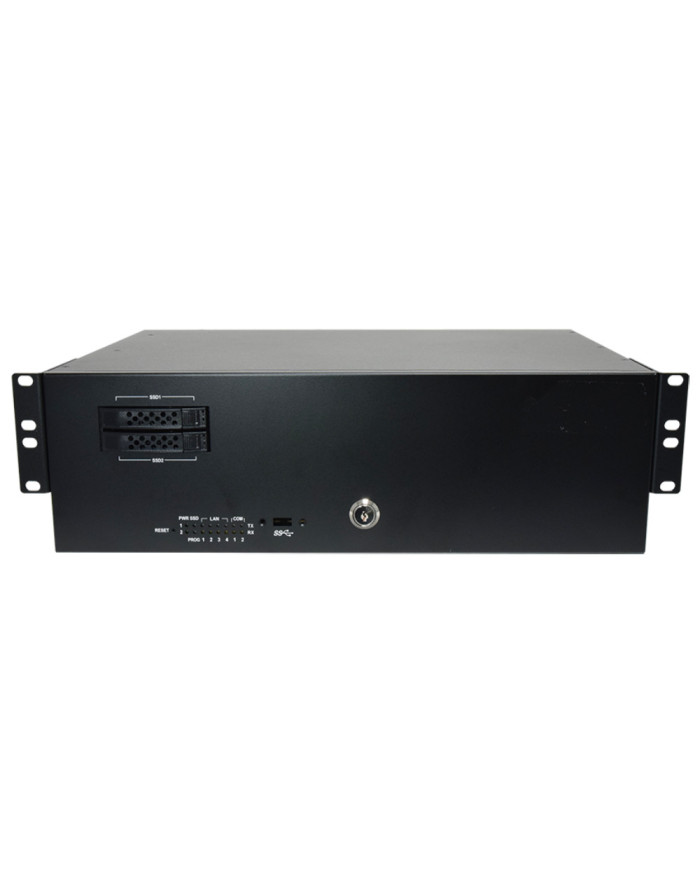

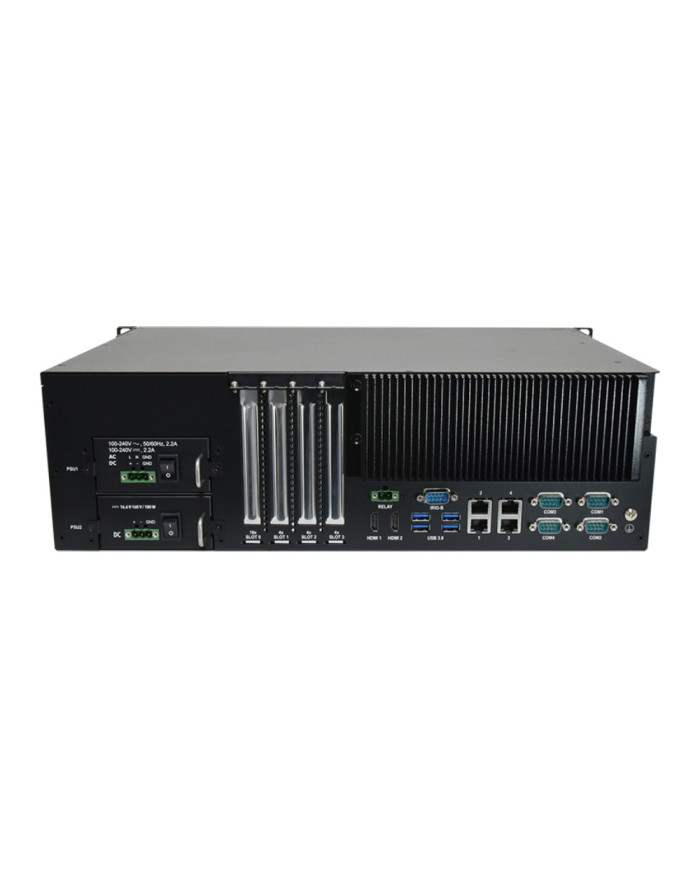

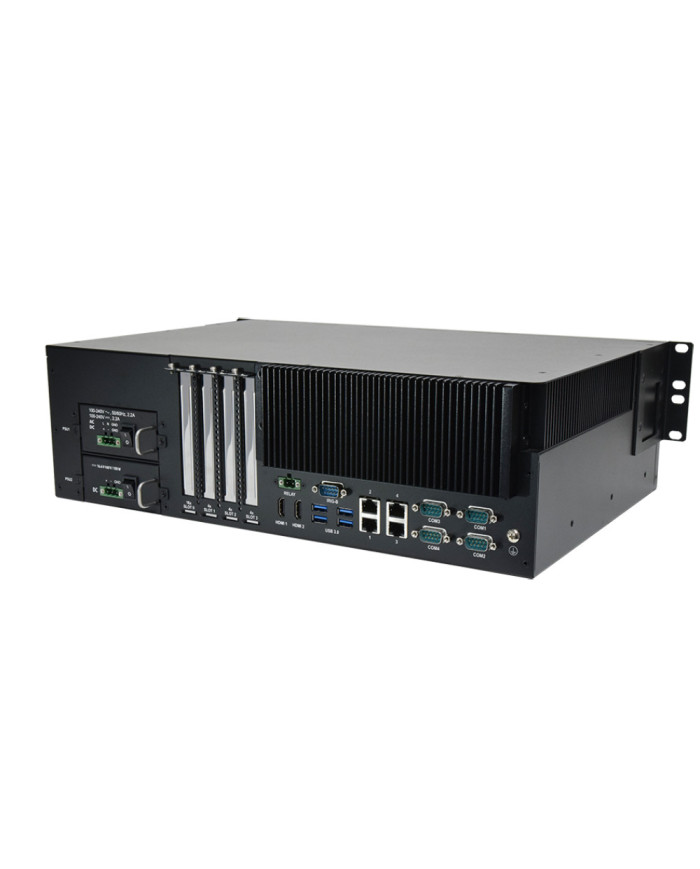

LEC-3340 industrial edge server
Ask for price
IEC 61850-3 Compliant 3U Rackmount Controller System for Power Substation
- IEC 61850-3 and IEEE 1613 Certified
- Support Intel Xeon W-11000 series CPU (Tiger Lake H)
- Support 2 x SO-DIMM DDR4 ECC memory up to 64 GB
- 4 x 2.5 GbE RJ45, 1 x PCIe x16, 3 x PCIe x4
- 5 x USB, 2 x HDMI, 2 x isolated COM ports
- 2 or 3 x 2.5”swappable drive bays (by SKU)
- Support dual power input
- Wide temperature range -40°C ~ 70°C
Description
Product Details
The LEC-3340, a robust 3U rackmount industrial edge server, plays a crucial role in modern digitalized substations by leveraging SCADA systems for the efficient collection and conversion of analog data from the entire power grid into a digital format. Powered by Intel Xeon E3-1505L V6, Core i5-7442EQ (Kaby Lake-H), or W-11000 series (Tiger Lake-H) processors, it delivers outstanding performance. Compliant with IEC-61850 and IEEE 1613 standards, this industrial-grade server features rich I/O functions, including 4 x PCIe slots, 4 x 2.5 GbE RJ45 ports, 5 x USB 3.0 ports, DP/DVI or 2 x new HDMI display ports, and 4 x isolated COM ports. With support for SATA M.2 and PCIe M.2 for booting drives, as well as up to 3 x swappable HDD/SSD drive bays with RAID support, the LEC-3340 enhances situational awareness, operational efficiency, and maintenance practices in digital substations.
Specifications
Platform
| CPU | Intel Xeon W-11865MLE/11555MLE/11155MLE/W-11555MRE |
| Chipset | Intel RM590 |
| BIOS | AMI SPI Flash BIOS |
| Memory Technology | DDR4 ECC |
| Memory Capacity | Up to 64 GB |
| Memory Socket | 2 x 260-pin SODIMM |
Storage
| SATA | 2 or 3 x 2.5” Swappable HDD/SSD drive bay support RAID 0,1/RAID 0,1,5 (by SKU) |
| PCIe | 1 x PCIe x4 M.2 2280 |
I/O
| Ethernet controller | Intel I226IT |
| Graphic controller | Intel HD Graphics P630 |
| Default LAN | 4 x 2.5 GbE RJ45 ports |
| Magnetic Isolation Protection | 2 KV Digital Isolation |
| Display output | 2 x HDMI |
| Magnetic Isolation Protection | 1.5 KV built-in |
| Serial ports | 4 x DB9 Male (COM1/COM2/COM3/COM4) onboard with isolation supports software selectable RS-232/422/485 1 x IRIG-B |
| Serial ESD protection | 15 KV ESD Protection |
| USB | 5 x USB 3.0 type A |
| TPM | TPM 2.0 Onboard |
Power
| Power input | 100 - 240 VAC (Single) 16.6 -160 VDC (Single) 100 - 240 VAC/VDC (Combo) |
Expansion
| PCIe | 1 x PCIe x16, 3 x PCIe x4 slots |
OS and Certifications
| Operating System | Windows 10 Embedded, Windows Server 2022, Kernel 5.18, Ubuntu, Windows 11 |
| Certifications | CE, FCC ClassA, CB, UL(w/o SKU H), IEC 61850-3, IEEE 1613 |
Physical and Environmental
| Storage temperature | -40°C to 85°C |
| Operating temperature | -40°C to 70°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 438 x 300.1 x 131.8 mm |
| Weight | 8.5 kg |
| Watchdog | Watchdog timer 256 level time interval system reset, software programmable |
| Casing material | Aluminum + Steel |
