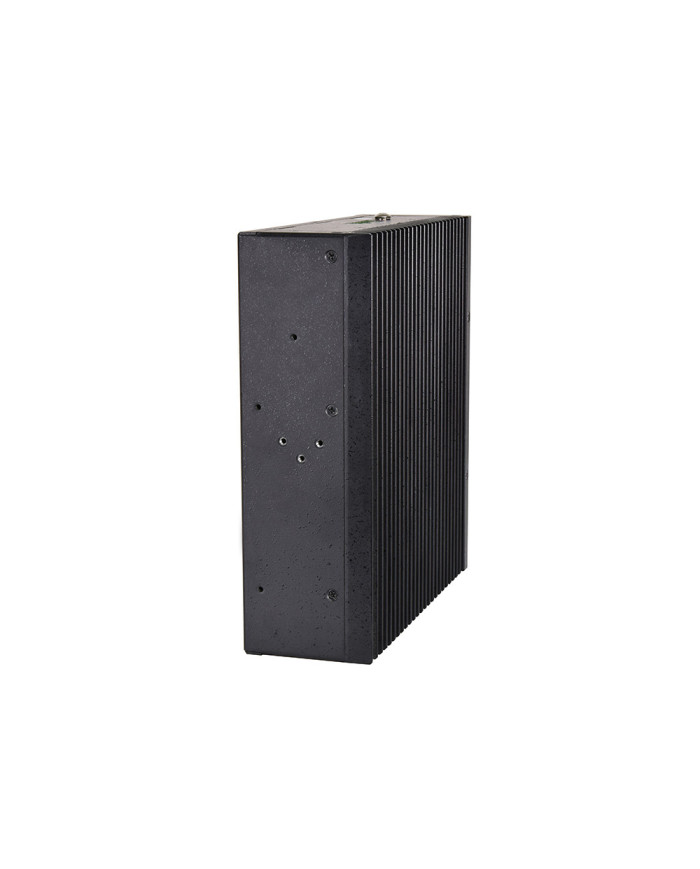

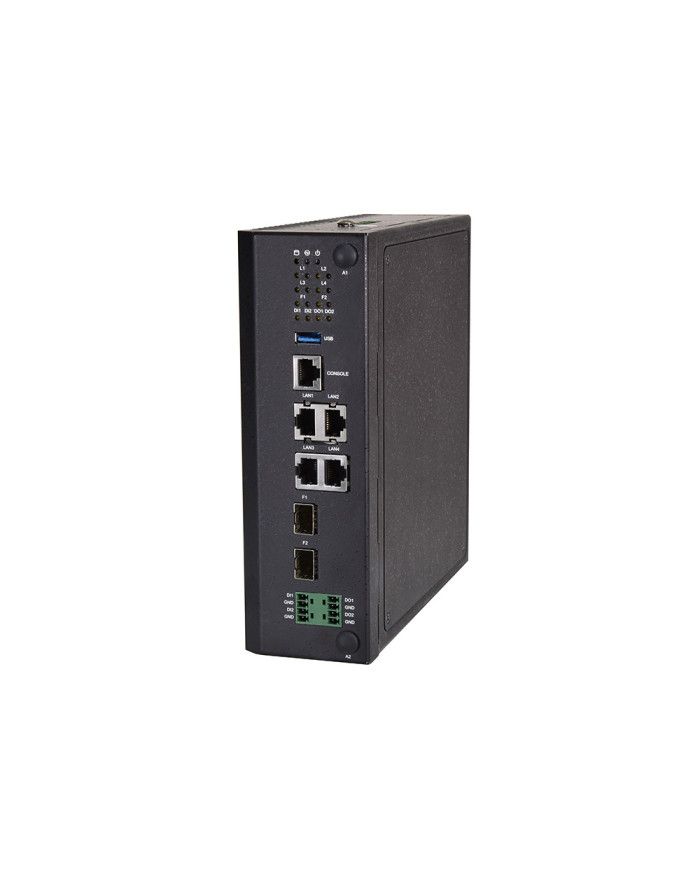

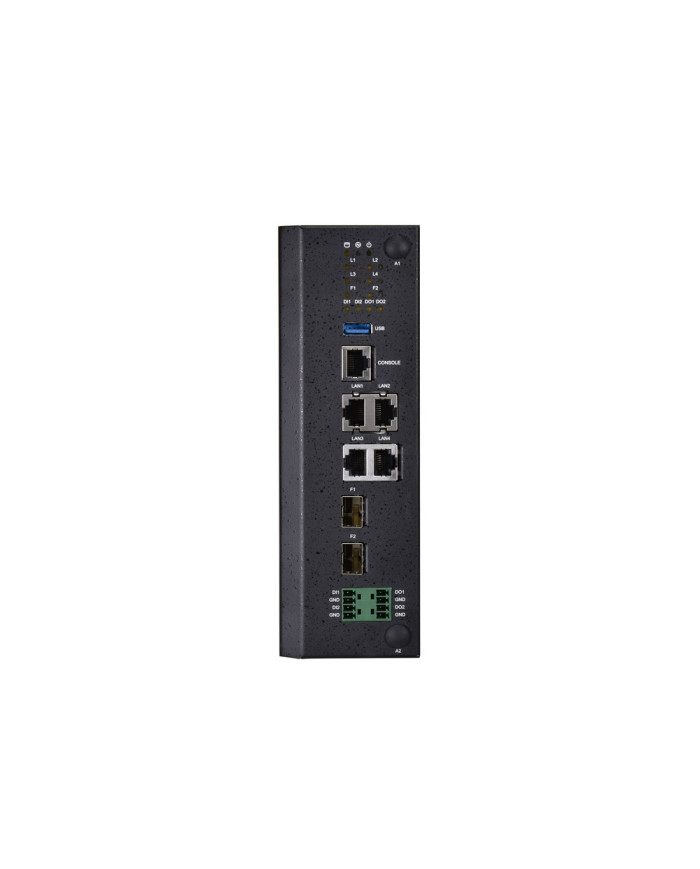

ICS-P570 industrial computer/gateway
Ask for price
IEC 61850-3 Wide Temperature Industrial Cybersecurity Computer/Gateway
- IEC 61850-3 & IEEE 1613 certified
- AMD Ryzen V1404I
- 6 x GbE RJ45 or 4 x GbE RJ45 + 2 x GbE SFP (1 pair LAN bypass by RJ45)
- 1 x RJ45 Console, 1 x USB 3.0, 2 x DIO
- 1 x M.2 3042 B-Key for LTE module with dual Nano-SIM
- Dual +12 ~ 48 VDC Power Input
- Wide Operating Temperature -40 ~ 70ºC
Description
Product Details
Lanner’s ICS-P570 is designed to protect communication in both IT and OT domains. Powered by the AMD Ryzen V1404I CPU for enhanced IoT platform and high processing performance, the next-generation industrial cybersecurity gateway ICS-P570 series possesses several key hardware features, including advanced LAN bypass technology, hardware security TPM 2.0 onboard, and wireless connectivity option. ICS-P371 is compliant with IEC 61850-3 and IEEE 1613, in addition to generous I/O ports supporting 6 x GbE RJ45 LAN ports, or 4 x GbE plus 2 x GbE SFP ports, 1x console port, 1 x USB port, and 2 x DIO. The system’s power supply voltage supports dual +12 ~ 48 VDC power input and operates in a wide range of temperatures from -40°C to 70°C. All the hardware design assures that the ICS-P570 computer will never have downtime while operating in hazardous surroundings such as the OT environment.
Specifications
Processor System
| CPU | AMD Ryzen V1404I |
| Frequency | Max: 3.6 GHz, Base: 2 GHz |
| Core Number | 4 |
| BIOS | AMI SPI Flash BIOS |
| Chipset | SoC |
| Fanless | Yes |
Memory
| Technology | ECC & non-ECC DDR4, 2400 MHz |
| Max. Capacity | 32 GB |
| Socket | 2 x 260-pin SODIMM |
Graphic
| Controller | Vega 8 Graphics |
| Interface | 1 x Internal HDMI pin-header |
Ethernet
| Controller | Intel i210IT/i210IS |
| Speed | RJ45: 100 Mbps/1 Gbps/2.5 Gbps, SFP: 1 Gbps |
| Interface | 6 x GbE RJ45 or 4 x GbE RJ45 + 2 x GbE SFP |
| Bypass | 1 pair LAN Bypass by RJ45 (LAN1, LAN2) |
Storage
| Type | SATA |
| Installation | 1 x M.2 2242 M-Key |
| Type | SD |
| Installation | 1 x Micro SD reader |
| Expansion | 1x M.2 3042 B-Key for LTE module, with dual Nano-SIM |
I/O
| Serial Port | 1 x RJ45 console |
| DIO | 2 x Isolated DIO |
| USB | 1 x USB 3.0 |
| Power-On/Reset Button | Reset button |
| TPM | Onboard TPM 2.0 |
| LED | 1 x POWER/STATUS/HDD LED (3 LEDs) 2 x LEDs per eth ports (total 12 LEDs) 1 x LED per DI or DO (total 4 LEDs) |
| Watchdog Timer | Watchdog timer 256 level time interval system reset, software programmable |
Power
| Power Supply Voltage | Dual +12 ~ 48 VDC |
| Connector | Phoenix contact 6-pin connector with lock |
| Power Adaptor | None |
Environment
| Operating Temperature | -40 ~ 70ºC |
| Storage Temperature | -40 ~ 85ºC |
| Relative Humidity | 5% ~ 95%, non-condensing |
Mechanical
| Dimension (W x D x H) | 65 x 196 x 201 mm |
| Packaging Dimension | 36 x 26.7 x 16.7 cm |
| Construction | Aluminum + SGCC |
| Weight | 2.5 kg |
| Packaging Weight | 3.3 kg |
| Mounting | DIN rail mount, optional wall mount |
Driver Support
| Linux | Linux Kernel 2.6X or later |
Certification
| EMC | FCC/CE Class A, UL (IEC-62368) |
| Others | IEC 61850-3, IEEE 1613 |
