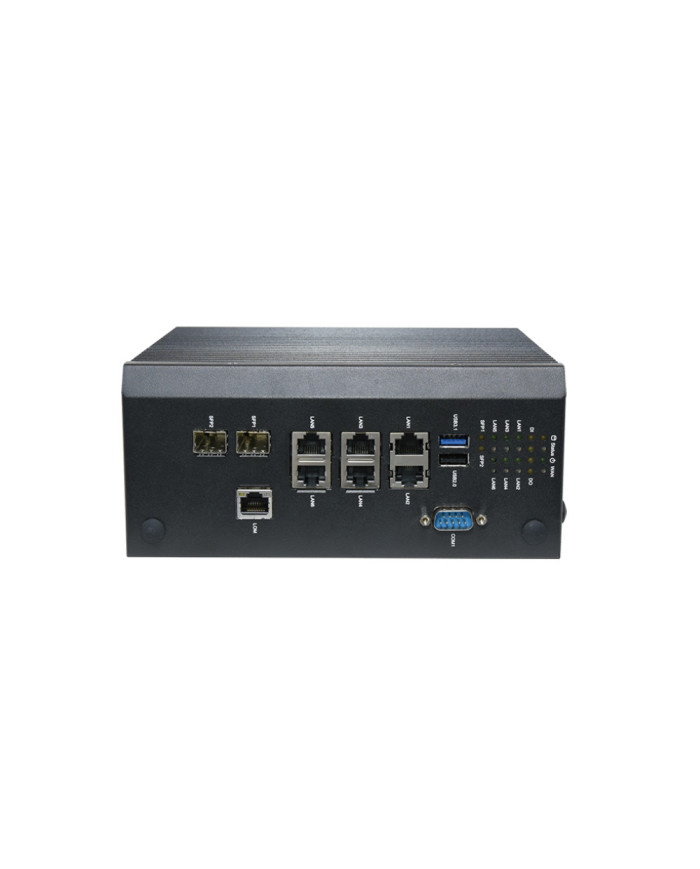

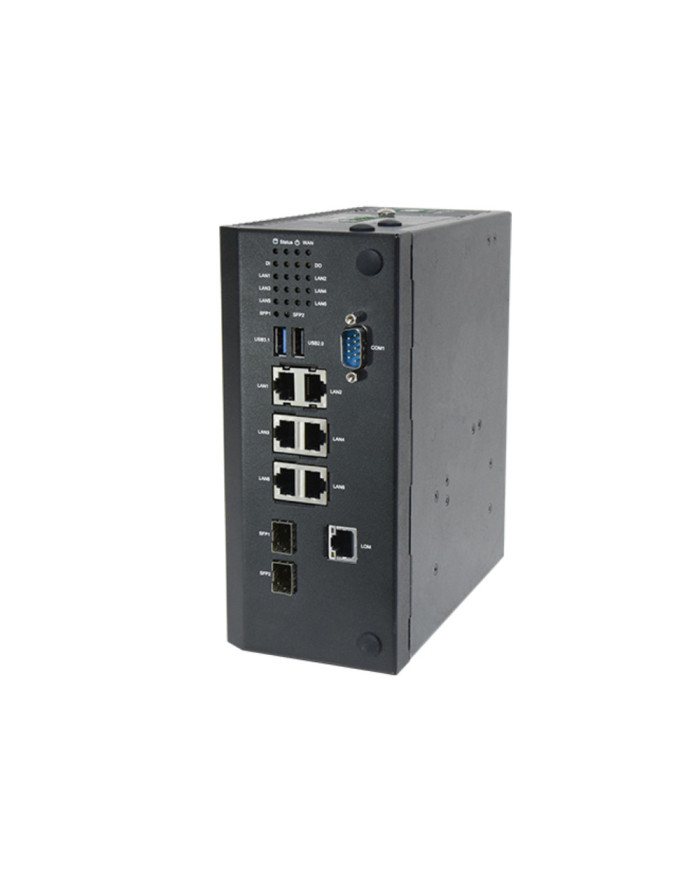

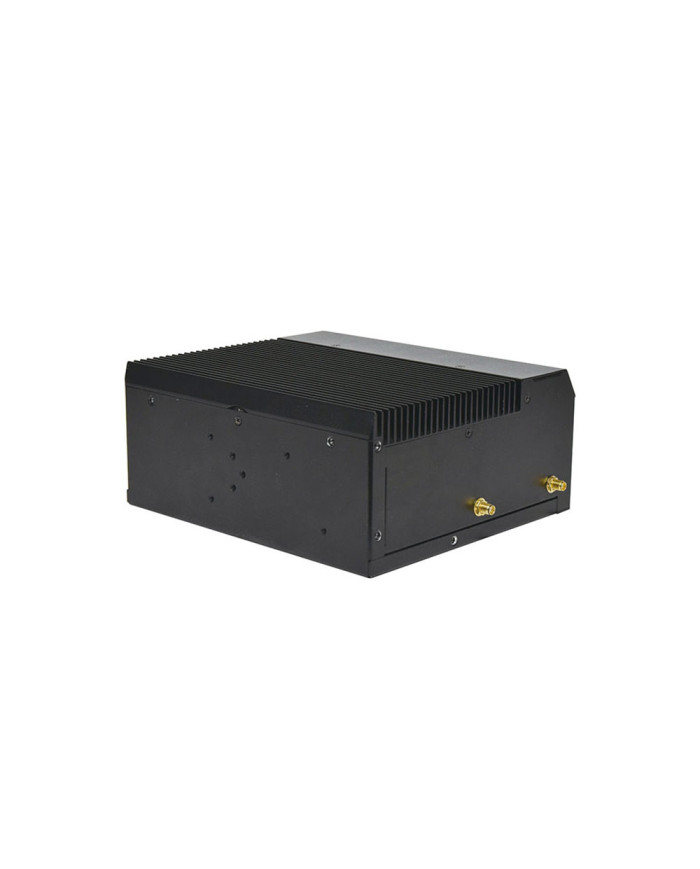

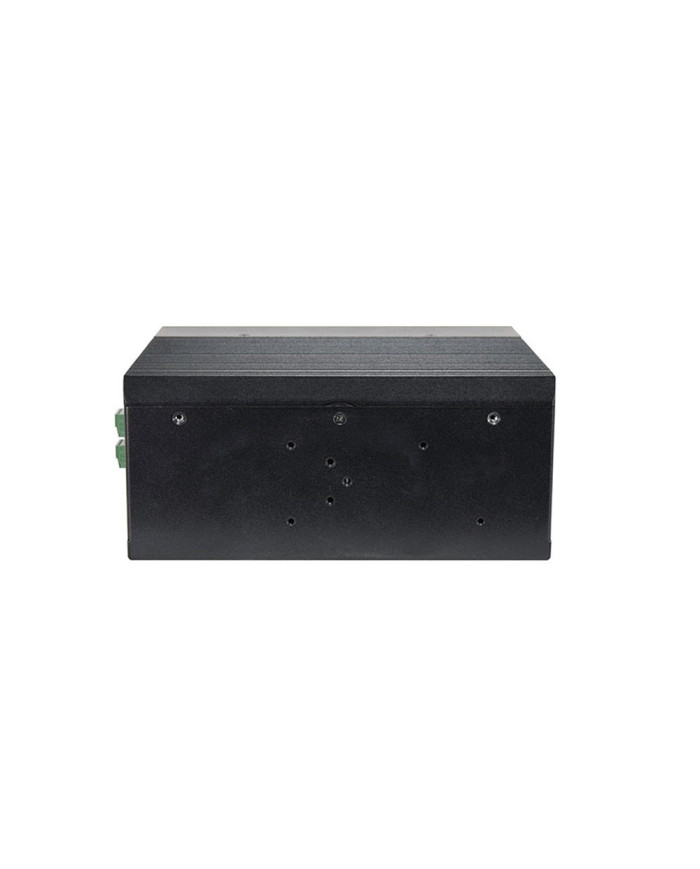

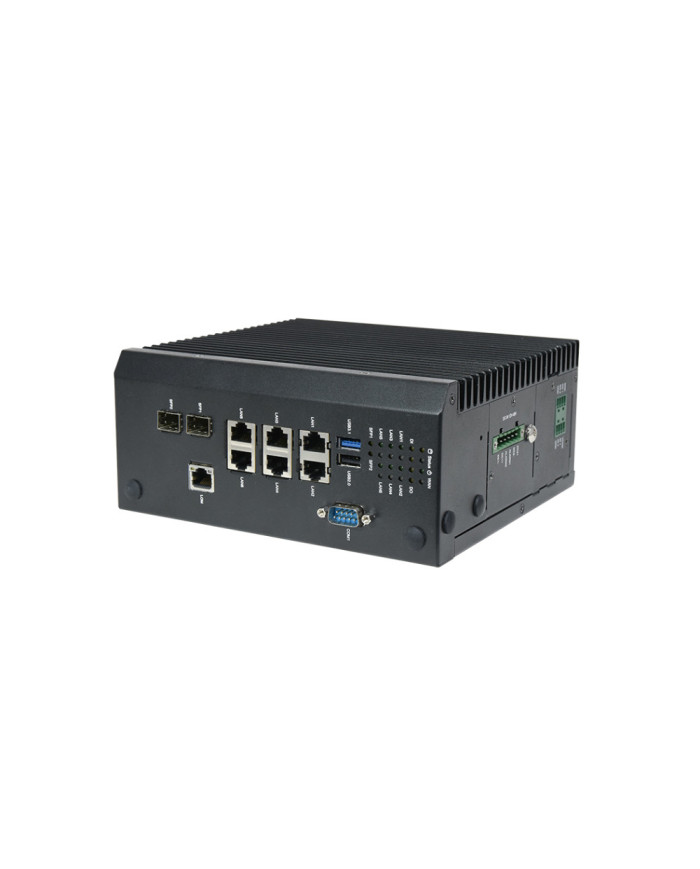

ICS-P371 industrial computer/gateway
Ask for price
IEC 61850-3 Wide Temperature Industrial Cybersecurity Computer/Gateway
- IEC 61850-3 and IEEE 1613 Certified
- Certified with IP30 rating for enhanced durability
- Intel Atom X6211E/X6413E/X6425E CPU (Elkhart Lake)
- 6 x 100 Mbps/1 Gbps/2.5 GbE RJ45 with 1 pair bypass, 2 x GbE SFP, TPM 2.0, 1 x COM, 2 x USB, 2 x DIO
- Chassis Intrusion Detection, TPM 2.0, Optional IPMI support
- 1 x M.2 B-Key For LTE/5G, 1x M.2 E-Key for Wi-Fi module
- Dual +12 ~ 48 VDC Power Input, Operating Temperature -40 ~ 70ºC
Description
Product Details
Lanner’s ICS-P371 is designed to protect communication in both IT and OT domains. Powered by the Intel AtomTM X6211E/X6413E/X6425E CPU (formerly Elkhart Lake) CPU for enhanced IoT platform and high processing performance, the next-generation industrial cybersecurity gateway ICS-P371 series possesses several key hardware features, including advanced LAN bypass technology, Chassis Intrusion Detection, and hardware security TPM 2.0 onboard. ICS-P371 is compliant with IEC 61850-3 and IEEE 1613, in addition to generous I/O ports supporting 6 x 100 Mbps/1 Gbps/2.5 GbE RJ45 LAN ports, and 2 x GbE SFP ports, 1 x COM, 2 x USB, and 2 x DIO. The system’s power supply voltage supports dual +12 ~ 48 VDC power input and operates in a wide range of temperatures from -40°C to 70°C. All the hardware design assures that the computer ICS-P371 will never have downtime while operating in hazardous surroundings such as the OT environment.
Specifications
Processor System
| CPU | Intel Atom X6211E/X6413E/X6425E |
| Frequency | Atom X6211E: 1.3 GHz Atom X6413E: 1.5 GHz Atom X6425E: 2.0 GHz |
| Core Number | Atom X6211E: 2, X6413E/X6425E: 4 |
| BIOS | AMI SPI Flash BIOS |
| Chipset | SoC |
| Fanless | Yes |
Memory
| Technology | DDR4, non ECC & IB-ECC |
| Max. Capacity | 32 GB |
| Socket | 1 x 260-pin SODIMM |
Ethernet
| Controller | Intel i226IT/i210IS |
| Speed | RJ45: 100 Mbps/1 Gbps/2.5 Gbps, SFP: 1 Gbs |
| Interface | 6 x RJ45, 1 x SFP, Optional IPMI ports |
| Bypass | 1 pair LAN 1/2 Bypass RJ45 (by SKU) |
Storage
| Type | SATA |
| Installation | 1 x 2.5” drive bay, 1 x M.2 M Key 2242 |
| Type | SD |
| Installation | 1 x Micro SD reader |
| Expansion | 1 x M.2 B-key 3042/3050/3052, USB 3.0+2.0 for LTE/5G sub6 with dual nano-sim reader, 1 x M.2 E-Key for Wi-Fi module |
I/O
| Serial Port | 1 x RS-232, DB9 male |
| DIO | 2 x Isolated DIO |
| USB | 1x USB 3.1 Gen1 5G, 1x USB 2.0 type A |
| Power-On/Reset Button | Reset button |
| LED | System Status, Ethernet Status & Programmable LEDs |
| Watchdog Timer | Watchdog timer 256 level time interval system reset, software programmable |
Power
| Power Supply Voltage | Dual +12 ~ 48 VDC |
| Connector | Phoenix contact 6-pin connector with lock |
| Power Consumption (Idle) | 24.2 W ~ 31.7 W |
| Power Consumption (Full Load) | 41.6 W ~ 46.8 W |
| Power Adaptor | None |
Environment
| Operating Temperature | -40 ~ 70ºC |
| Storage Temperature | -40 ~ 85ºC |
| Relative Humidity | 5% ~ 95%, non-condensing |
Mechanical
| Dimension (W x H x D) | 87 x 196 x 180 mm |
| Packaging Dimension | 366 x 251 x 150 mm |
| Construction | Aluminum + SGCC |
| Weight | 3.4 kg |
| Mounting | DIN rail mount or optional wall mount |
| IP Rating | IP30 |
Driver Support
| Linux | Linux Kernel 2.6X or later |
Certification
| EMC | FCC/CE Class A, UL (IEC-62368), C1D2 (SKU F Only) |
| Safety | IEC 61850-3, IEEE 1613 |
