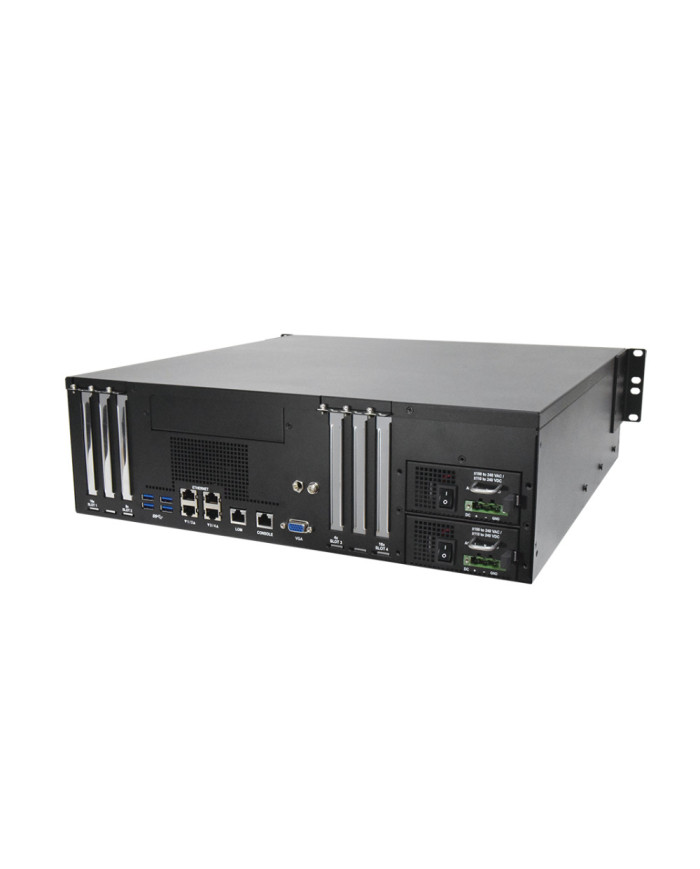

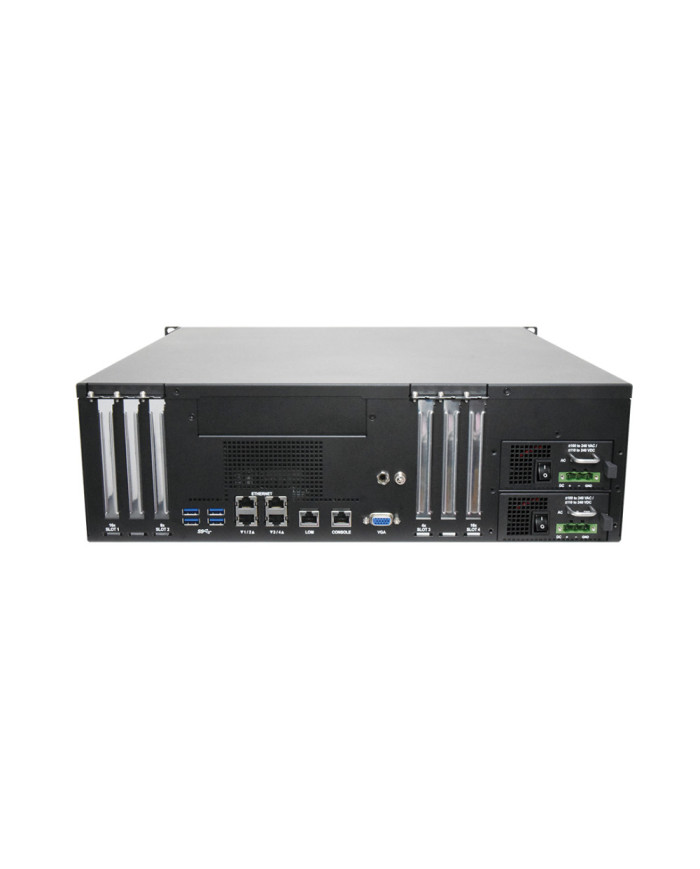

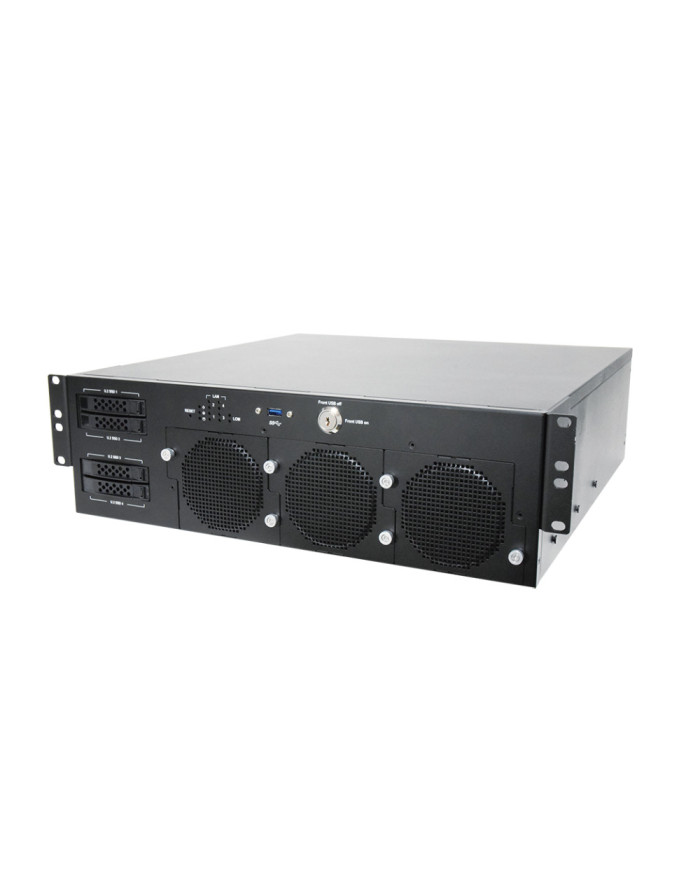

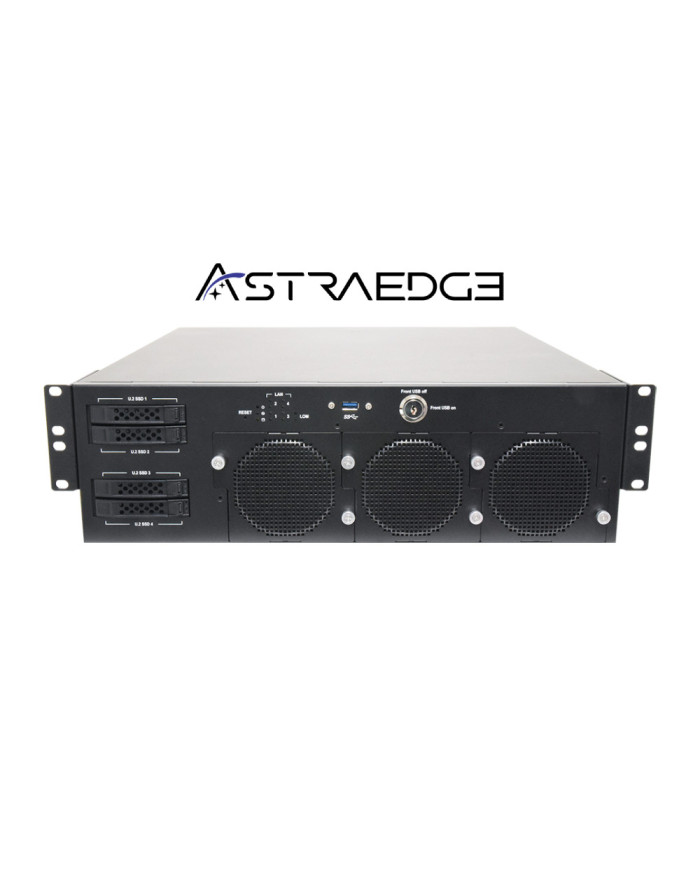

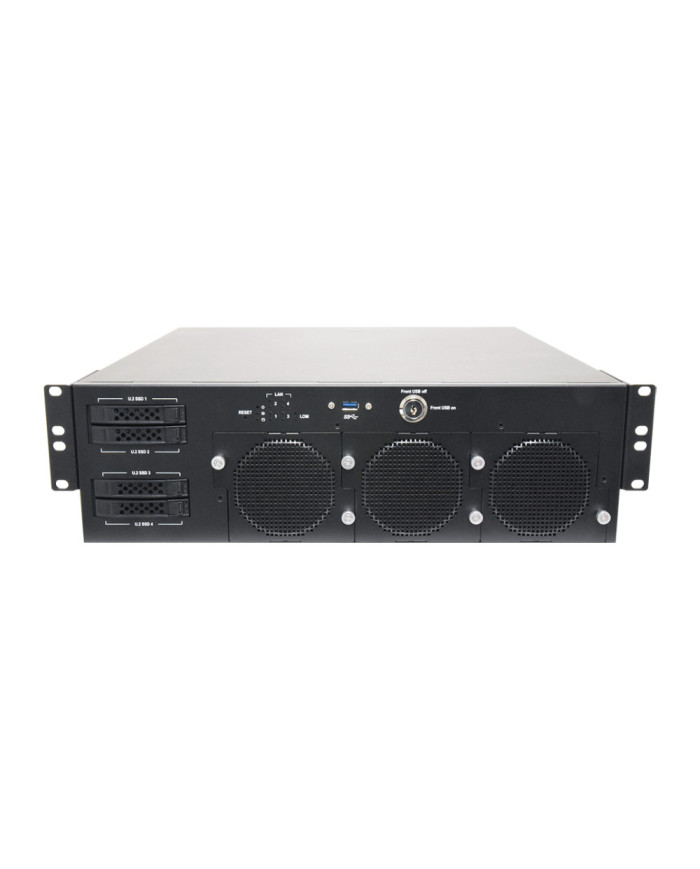

ICS-P770 industrial rack computer
Ask for price
IEC 61850-3 Certified Industrial Computer for Digital Substation
- Intel Xeon 6 Processor (Sierra Forest-SP)
- DDR5 Memory up to 512 GB
- 4 x 2.5 GbE RJ45; 4 x 25 GbE SFP28 or 2 x GbE RJ45 & 2 x 10 GbE RJ45 w/ SRIOV (by SKU)
- 1 x Console, 5 x USB 3.1, 1 x VGA
- 2 x FHFL PCIe x16, 1 x FHFL PCIe Gen5 x8, 1 x FHFL PCIe Gen5 x4
- 4 x 2.5” U.2 NVMe Hot-Swappable Drive Bays, 1 x M.2 2280/22110 M-Key (NVMe)
Description
Product Details
The ICS-P770 series is a powerful 3U computer designed for automation and security in digital substation. Featuring an Intel Xeon 6 Processor (Sierra Forest-SP), up to 512 GB DDR5 memory, and versatile networking options (including 2.5 GbE, 25 GbE, 10 GbE, and GbE ports with SR-IOV), it ensures high performance and flexibility. With PCIe Gen5 expansion and an IP30-rated rackmount chassis with smart cooling, it’s built for reliability and scalability.
Specifications
Platform
| CPU | Intel Xeon 6 Processor (Sierra Forest-SP) |
| CPU TDP | Max. 205 W |
| Security Acceleration | Intel QuickAssist Technology |
| BIOS | AMI SPI Flash BIOS |
System Memory
| Technology | 8 x DDR5 6400 MHz RDIMM with ECC |
| Max. Capacity | 512 GB |
Ethernet
| Interface | 4 x 2.5 GbE RJ45; (By SKU) 4x 25 GbE SFP28 or 2x GbE RJ45 & 2x 10 GbE RJ45 w SRIOV |
| Speed | 10/100/1000/2500 Mbps |
LOM/OOB
| Type | IPMI |
| Interface | 1 x RJ45 |
| OPMA Slot | Yes |
I/O Interface
| Reset Button | 1 |
| Serial | 1 x RJ45 Console |
| Display | 1 x VGA |
| USB | 5 x USB 3.1 Gen1 |
Storage
| HDD/SSD Support | 4 x 2.5” U.2 NVMe Hot-Swappable Drive Bays |
| Onboard Slots | 1 x M.2 2280/22110 M-Key (PCIe Gen5) |
Expansion
| PCIe | 2 x FHFL PCIe Gen5 x16 1 x FHFL PCIe Gen5 x8 1 x FHFL PCIe Gen5 x4 |
Miscellaneous
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | TPM 2.0 |
Cooling
| Processor | Passive CPU Heatsink |
| System | 3 x Smart Fans |
Environmental Parameters
| Temperature | -40ºC ~ 55ºC |
| Humidity (RH) | 5 ~ 90% Operating 5 ~ 95% Non-Operating |
System Dimensions
| W x H x D | 438 x 131.8 x 455 mm |
| Mounting | 3U 19” Rackmount, IP30 |
Power
| Type / Watts | Dual Power Input up to 750 W each |
| Input | ±100 ~ 240 VAC / ±110 ~ 240 VDC |
Driver Support
| OS | Linux, Windows 11 |
Certification
| EMC | CE/UKCA, FCC Class A, RoHS, MTBF |
| Safe | EN 50121-4, UL + CB, IEC-61850-3, IEEE 1613 |
