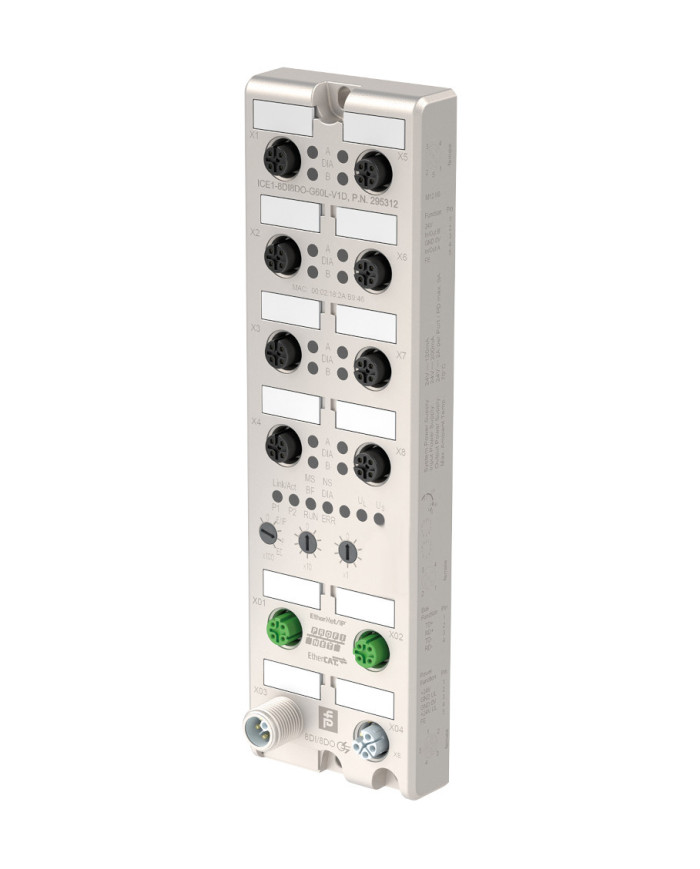

ICE11 - 8IOL - G60L - V1D IO-Link Master Module
Ask for price
Ethernet IO-Link module with eight IO-Link ports compatible with protocols: EtherCAT, PROFINET, EtherNet/IP, CC-Link, and Modbus TCP.
- 8 IO-Link ports Class A
- Multiprotocol-compatible
- M12 power connector, L-coded
- Sturdy metallic housing
- Web-based configuration
- Extended temperature range
Description
Product Details
The module is a multiprotocol fieldbus module with 8 type A IO-Link master ports according to IO-Link standard V1.1.3.
The G60L design in fully cast metal housing is resistant to mechanical damage and environmental influences. The G60L has protection class IP65/IP67.
The fieldbus module serves as an interface between the controller of a fieldbus system and the field level. Thanks to its multiprotocol capability, the fieldbus module supports the Ethernet communication protocols PROFINET, EtherNet/IP, EtherCAT, CC-Link and Modbus TCP.
An L-coded M12 connector plug used for supplying power enables a current rating of up to 2 x 16 A. The inputs and outputs are equipped with A-coded M12 connector plugs. Connection to the fieldbus is achieved using a D-coded M12 connector plug.
The communication protocols are configured either manually via a rotary switch or automatically. The diagnostics display status information for each channel via LEDs. An integrated web server enables access to the fieldbus module. Information regarding the status of the module is also displayed and network parameters such as the IP address and subnet mask can be configured.
Technical data
General specifications
| UL File Number | E223772 |
Indicators/operating means
| LED indication | see manual | |
| Rotary switch | Setting the fieldbus protocol |
Electrical specifications
| Rated operating voltage | Ue | 20 … 30 V |
| Nominal voltage | 24 V DC (SELV/PELV) | |
| Current consumption | typ. 160 mA ± 20 % at nominal voltage | |
| Current loading capacity | max. 16 A per module |
Interface
| Interface type | Industrial Ethernet | |
| Physical | M12, D-coded | |
| Protocol | PROFINET IO, EtherNet/IP, EtherCAT, CC-Link IE Field Basic, MODBUS TCP | |
| Transfer rate | Fast Ethernet 10/100Â Mbps, full duplex |
Inputs/Outputs
| Number/Type |
8 x IO-Link Class A (X1 – X8)
Configurable as: max. 8 IO-Link and 8 digital inputs/outputs max. 16 digital inputs/outputs short-circuit protected |
|
| Sensor supply | max. 4 A per port (X1 - X8) via L+ (pin 1) | |
| Output current | Ie |
max. 500 mA per port (X1 - X8) via C/Q (Ch. A/pin 4)
max. 2 A per port (X1 - X8) via DO (Ch. B/pin 2) |
Directive conformity
| Electromagnetic compatibility | |||||
|
|||||
Standard conformity
| Degree of protection | ENÂ 60529:2000 | |
| Fieldbus standard | Type 1 according to IECÂ 61131-2 | |
| Shock resistance | EN 61131-2:2004 |
Approvals and certificates
| UL approval | |||||
|
|||||
Ambient conditions
| Ambient temperature | -40 … 70 °C (-40 … 158 °F) | |
| Storage temperature | -40 … 70 °C (-40 … 158 °F) | |
| Relative humidity | max. 95 % | |
| Altitude | 0 … 2000 m | |
| Shock and impact resistance | 50 g, 11 ms, all axes | |
| Vibration resistance | 15 g at 5 - 500 Hz | |
| Pollution degree | 3 |
Mechanical specifications
| Contact elements | PA | ||||||||||
| Degree of protection | IP65 / IP67 / IP69K | ||||||||||

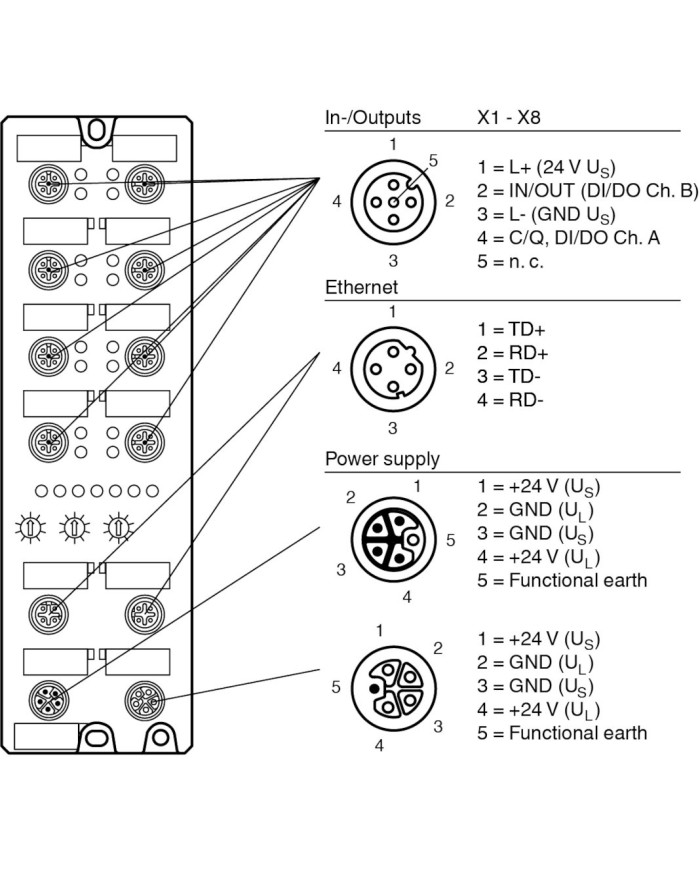

| Connection |
Power Supply M12, L-coded
Fieldbus M12, D-coded Inputs/Outputs M12, A-coded |
||||||||||
| Material | |||||||||||
|
|||||||||||
| Mass | 480 g | ||||||||||
| Tightening torque, fastening screws | 1 Nm | ||||||||||
| Tightening torque, cable gland | 0.5 Nm | ||||||||||

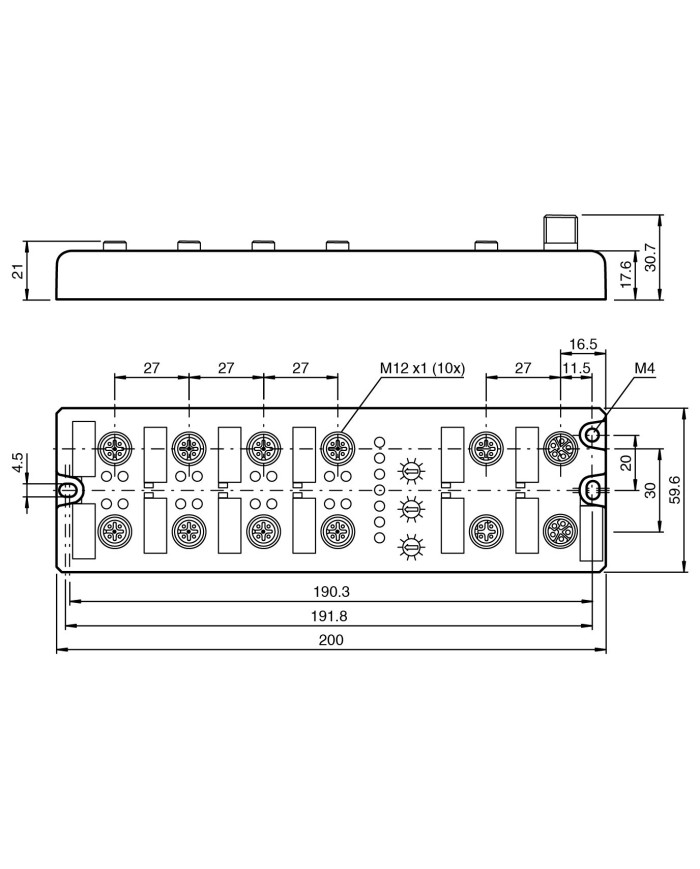

| Dimensions | |||||||||||
|
|||||||||||
| Construction type | Field housing | ||||||||||
| Tightening torque of clamping screws | 0.5 Nm | ||||||||||
