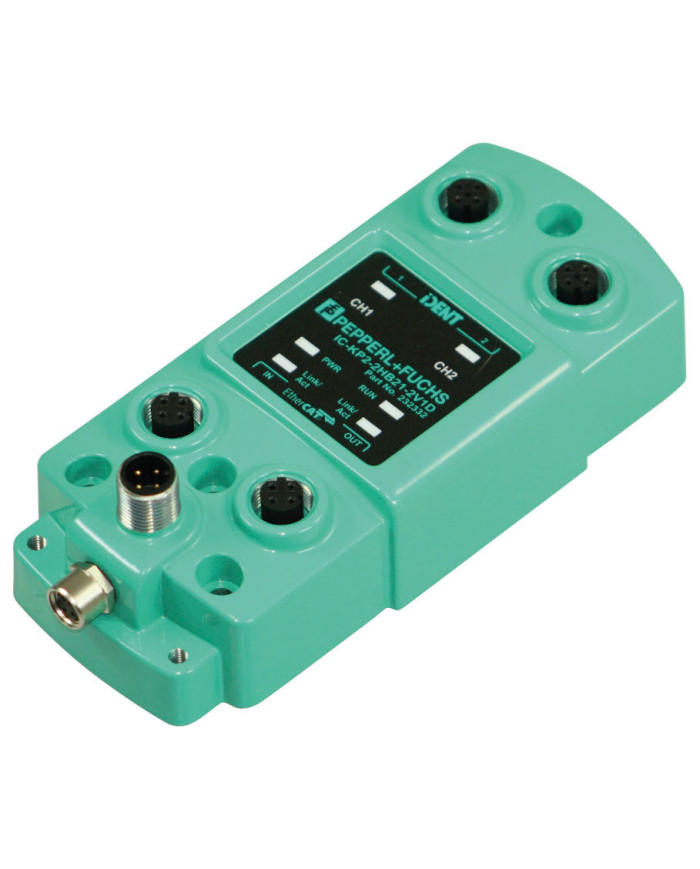

IC - KP2 - 2HB21 - 2V1D EtherCAT RFID Evaluation Unit
Ask for price
IDENTControl Compact RFID evaluation unit with EtherCAT interface
- LED status indicator of bus communication and read/write heads
- Max. 2 read/write heads can be connected
- Alternatively 1 read/write head and 1Â trigger sensor can be connected
Description
Product Details
The RFID identification system IDENTControl Compact from Pepperl+Fuchs offers a vast number of benefits compared to other systems, thanks to its innovative design. The control interfaces IDENTControl and IDENTControl Compact make up the core of the system.
With its integrated interfaces to all commercially available fieldbus systems such as PROFIBUS, PROFINET, Ethernet, EtherCAT, CC-Link, serial connections (RS 232 or RS 485) and numerous connection options for read/write heads available for frequency ranges LF, HF and UHF, the IDENTControl Compact control interface can be easily and flexibly adapted to your requirements.
LEDs on the front of the housing indicate bus communication, connected read/write heads and active read/write commands. Reliability of the application is further increased by using trigger sensors.
The system is equally suited for use in control cabinets and field use in IP67. The interface to the higher-level fieldbus is integrated in the housing, and all connections are designed such that they are pluggable. This enables simple installation and quick, problem-free replacement in case of device failure. The consistent EMC design, with metal housing, grounding and shielded wires, offers a high degree of reliability.
Technical data
General specifications
| Number of read/write heads |
max. 2
alternatively 1 read/write head and 1 trigger sensor |
|
| UL File Number | E87056 | |
| MTBF | 80 a (operation at +40 °C) |
Indicators/operating means
| LEDs 1, 2 |
status indicator for read/write heads
green: command at read/write head active yellow: approx. 1 second long, if command was successfully executed |
|
| LEDs CH1, CH2 |
green: read head detected
red: configuration error |
|
| LED PWR/ERR |
green: power on
red: hardware fault |
|
| LED RUN |
off: init
flashing (green): pre-operational single flash (green): safe-operational on (green): operational |
Electrical specifications
| Rated operating voltage | Ue | 20 … 30 V DC, PELV |
| Ripple | ≤ 10 % at 30 V DC | |
| Current consumption | ≤ 4 A incl. read/write heads | |
| Power consumption | P0 | 3.5 W without read/write heads |
| Galvanic isolation | basic insulation acc. to DIN EN 50178, rated insulation voltage of 50 Veff |
Interface 1
| Interface type | EtherCAT (IN) | |
| Physical | Ethernet | |
| Protocol | EtherCAT | |
| Transfer rate | 100 MBit/s |
Interface 2
| Interface type | EtherCAT (OUT) | |
| Physical | Ethernet | |
| Protocol | EtherCAT | |
| Transfer rate | 100 MBit/s |
Interface 3
| Interface type | diagnostic interface | |
| Physical | RS 232 | |
| Protocol | ASCII | |
| Transfer rate | 38.4 kBit/s |
Directive conformity
| Electromagnetic compatibility | |||||
|
|||||
| RoHS | |||||
|
|||||
Standard conformity
| Degree of protection | IEC 60529 |
Ambient conditions
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Climatic conditions |
air humidity max. 96 %
salt spray resistant to ENÂ 60068-2-52 |
|
| Shock and impact resistance |
Oscillation (Sine): 5 g, 10 - 1000 Hz to EN 60068-2-6
Shock (Half-sine): 30 g, 11 ms in accordance with EN 60068-2-27 |
Mechanical specifications
| Degree of protection | IP67 | ||||||||||
| Connection |
read/write heads: shielded, 4-pin, M12 connector
power supply: M12 connector protective earth: M4 earthing screw diagnostic RSÂ 232: M8 connector EtherCAT: M12 connector, D-coded |
||||||||||
| Material | |||||||||||
|
|||||||||||
| Installation | screw fixing | ||||||||||
| Mass | approx. 300 g | ||||||||||

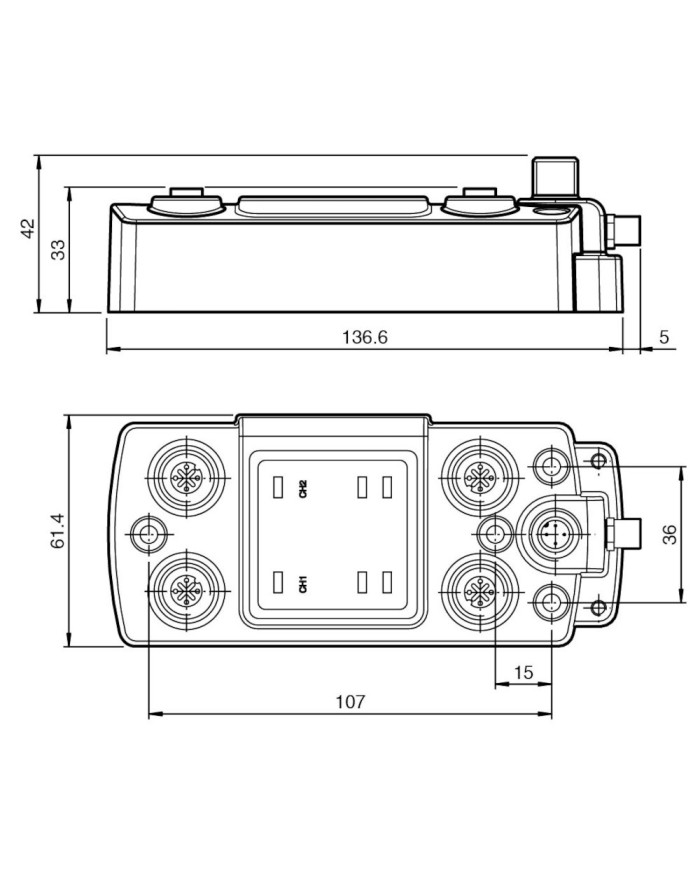

| Dimensions | |||||||||||
|
|||||||||||
