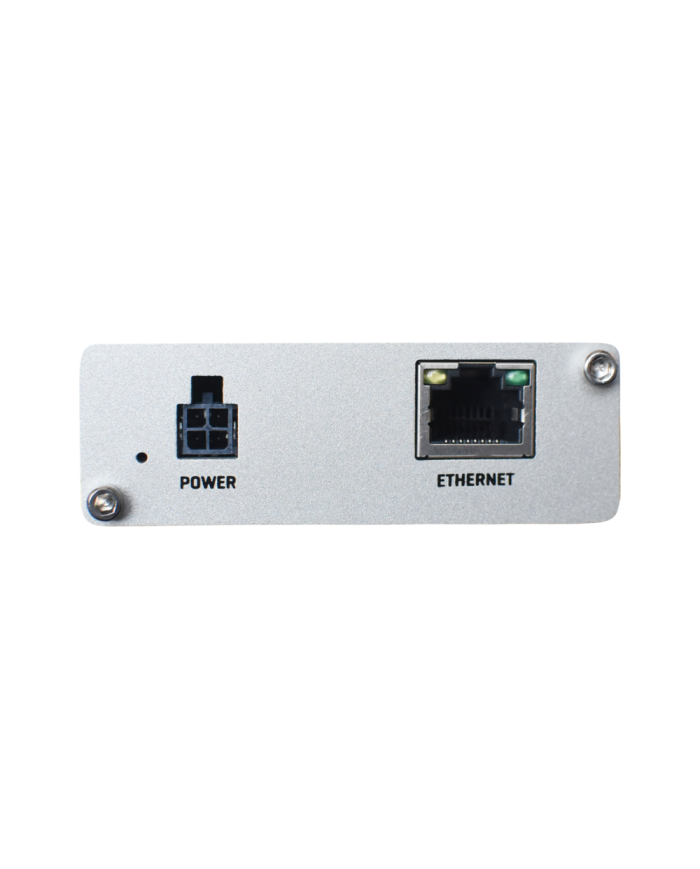

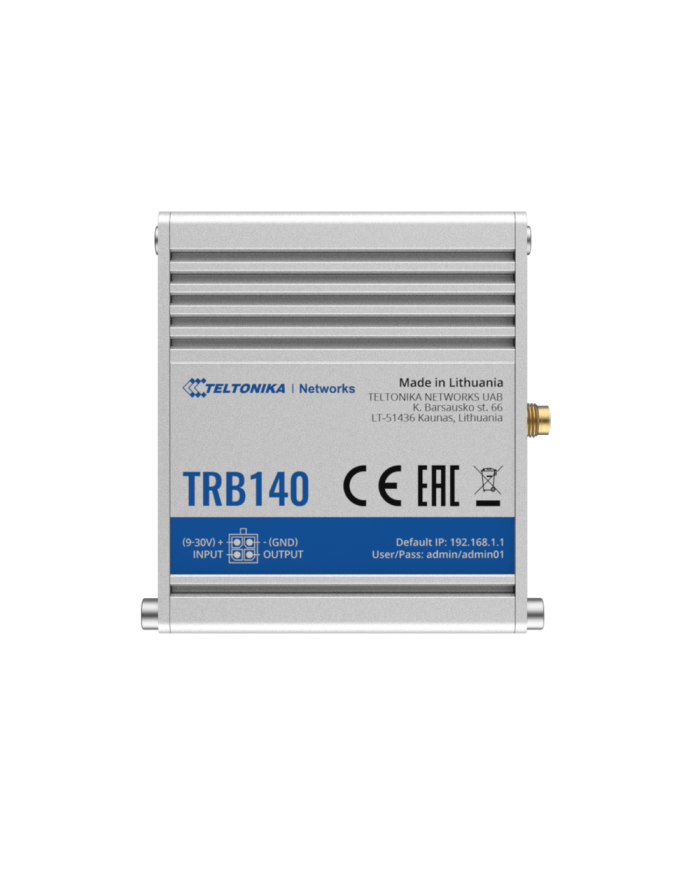

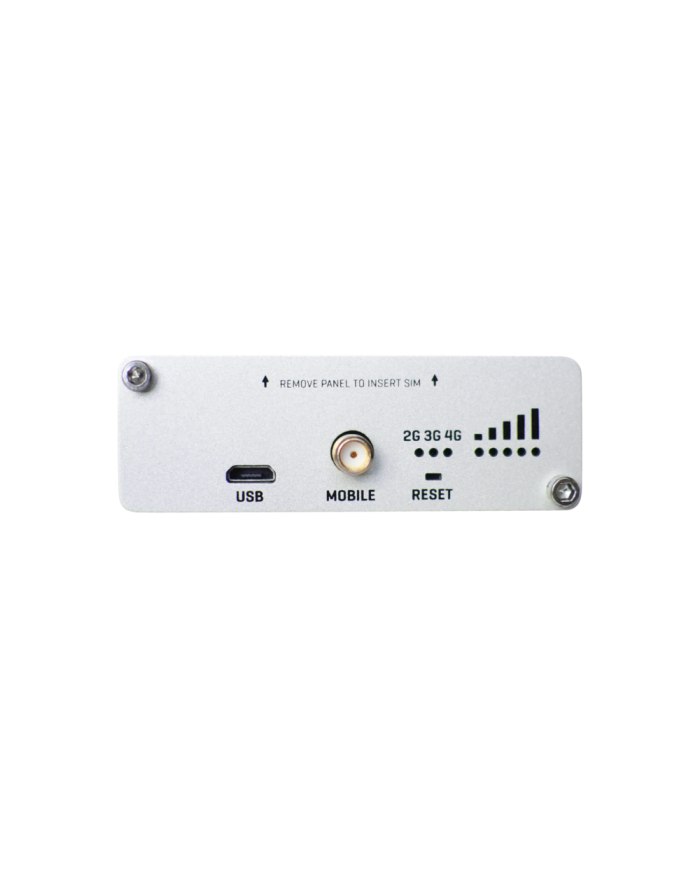

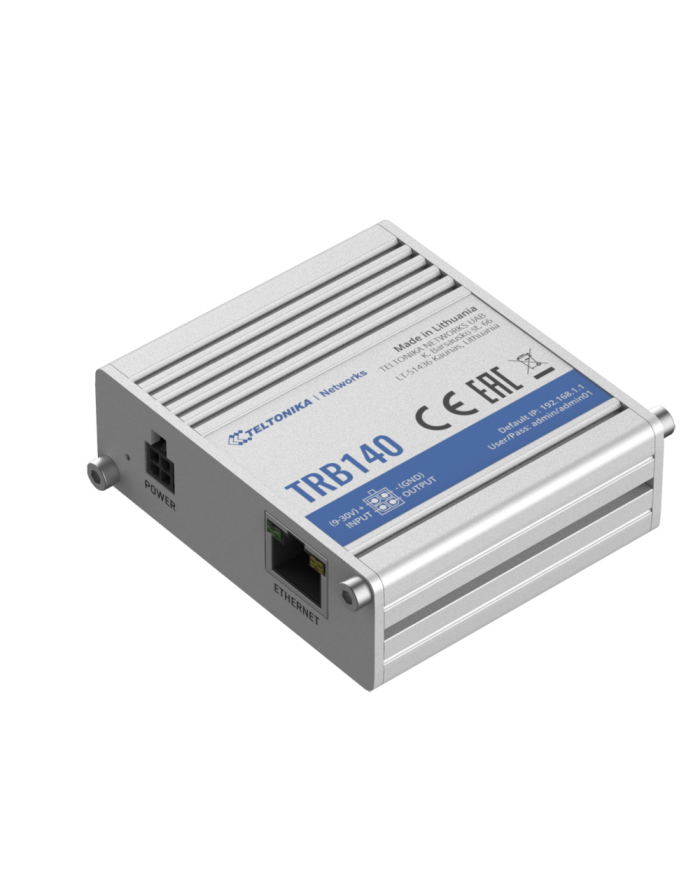

TRB140 Gateway
Ask for price
Industrial Rugged LTE Gateway
Connectivity: 4G/LTE (Cat 4), 3G, 2G
Durability: rugged aluminium housing
RUTOS: easy to use, secure and feature rich OpenWRT based operating system
9-30V: wide range of supported power supply voltages
Compactness: small size, easy installation
RMS: compatible with Teltonika Remote Management System
Description
Product Details
TRB140 is an ultra-small, lightweight, and energy-efficient industrial gateway equipped with mission-critical LTE Cat 4 capabilities, Gigabit Ethernet interface, digital Inputs/Outputs, and micro-USB port. Because of its compact design, this product is perfect for projects and applications where a sole gadget requires reliable internet connectivity. TRB140 is specially engineered to be used in the industrial sector and has a wide range of software security features, such as SMS control, Firewall, Open VPN, IPsec, Remote Management System (RMS), and FOTA support. The device offers a wide range of supported power supply voltages (9-30 V) and operating temperatures (-40°C ~ +75°C).
Standard package contains
- TRB140 Gateway
- 9 W PSU
- 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
- Micro-USB cable (0.8 m)
- 1 x hex key
- LAN cable
- QSG (Quick Start Guide)
- RMS Flyer
- Packaging box
Full technical specification is available in Attachments.
Data sheet
| Ethernet ports | 1 |
|---|---|
| Ethernet speed | 10/100/1000 Mbps |
| Operating voltage | 9-30 VDC |
| Connectivity | 2G 3G 4G/LTE Cat 4 |
| Maximum power consumption | 5 W |
| Dimensions | 74,5 x 25 x 64,4 mm |
| Weight | 134 g |
| Mounting options | DIN rail flat surface wall |
| Operating temperature | -40°C ~ +75°C |
| IP degree of protection | IP30 |
| USB ports | 1 |
| Digital inputs | 2 |
| Digital outputs | 2 |
| SIM slots | 1 |
| Operating system | RutOS (OpenWrt based Linux OS) |
| VPN | IPsec OpenVPN WireGuard |
