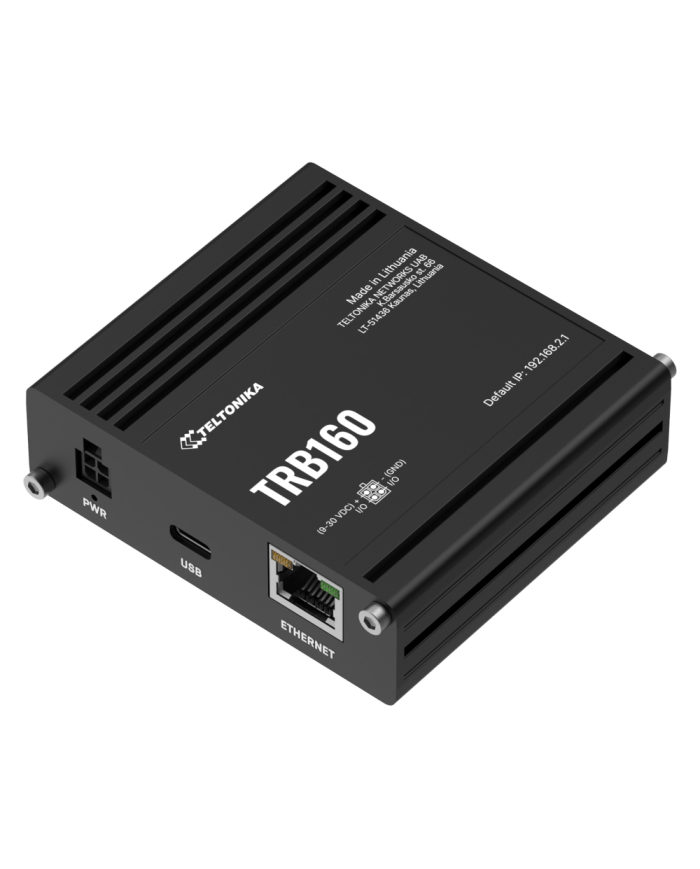

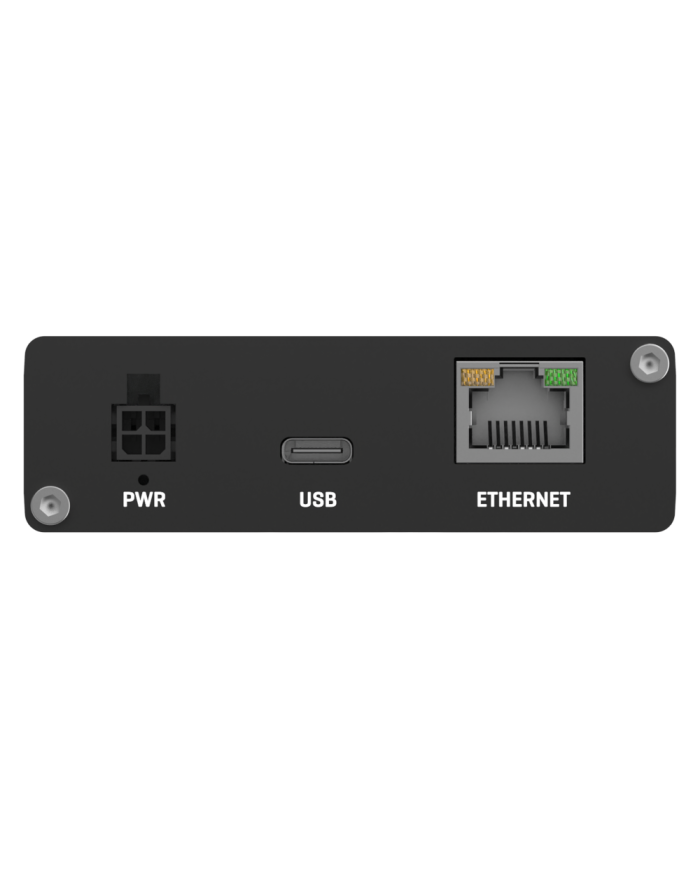

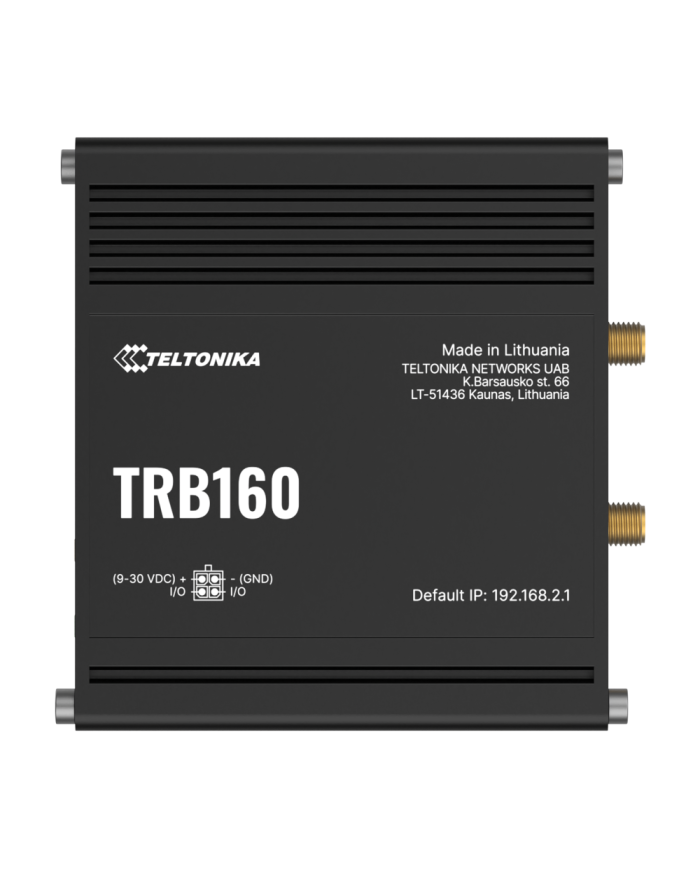

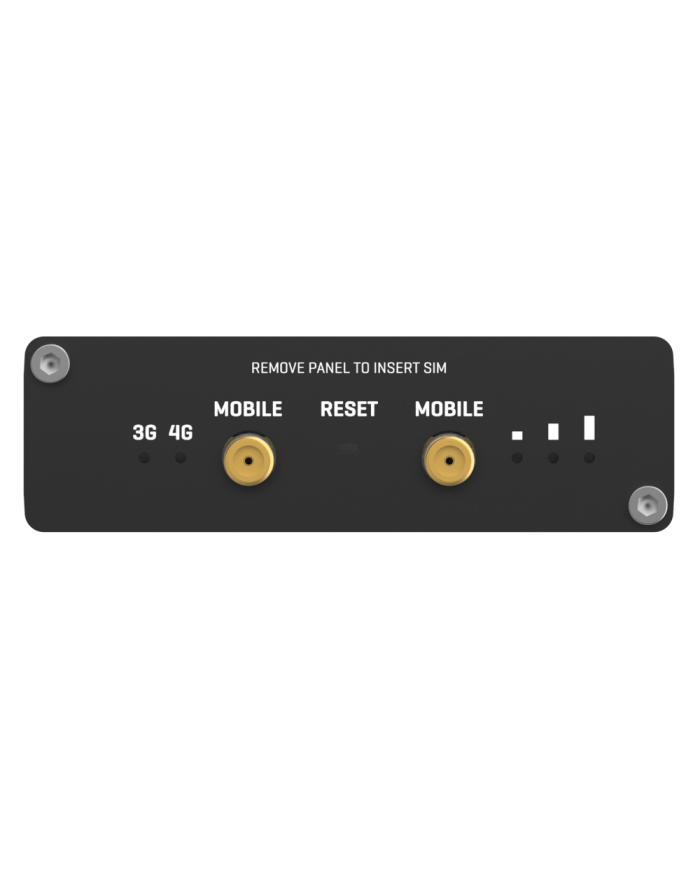

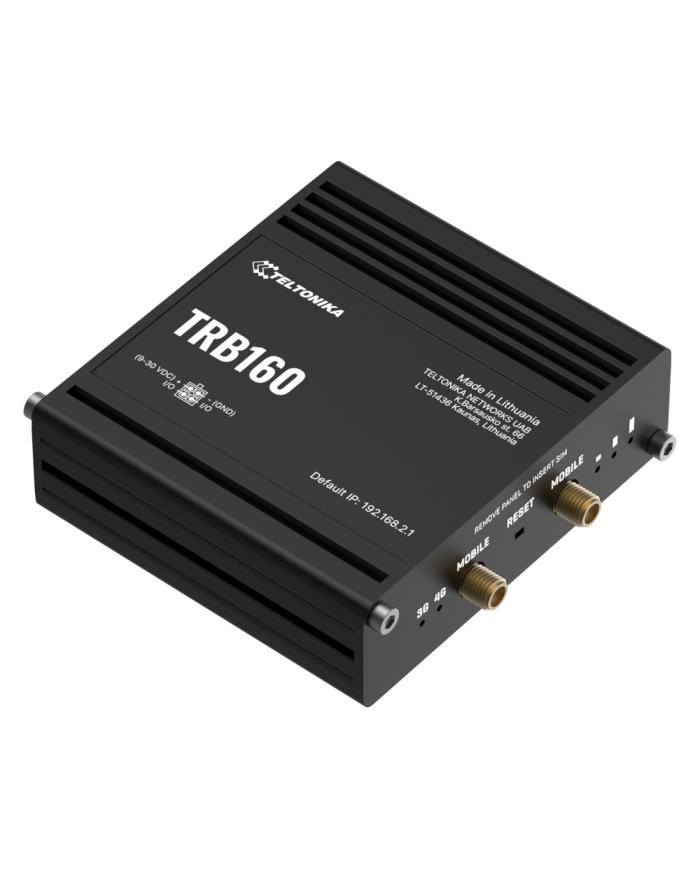

TRB160 Gateway
Ask for price
Industrial 4G/LTE Cat 6 IoT Gateway
4G/LTE Cat 6 - Cellular speeds of up to 300 Mbps with carrier aggregation
USB type-C - For simultaneous powering and network data provision
Protocols - OPC UA, Modbus, Data to Server, MQTT, DNP3, DLMS, and more
Compactness - Small size, easy installation
Description
Product Details
The TRB160 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE Cat 6, Gigabit Ethernet, and a virtual network interface via USB Type-C for simultaneous powering and network data provision. This IoT gateway can reach cellular speeds of up to 300 Mbps with carrier aggregation in a broad range of applications and supports a wide range of industrial-grade protocols for M2M communication.
KEY FEATURES
Hardware
| Mobile | 4G (LTE) - Cat 6 up to 300 Mbps, 3G - Up to 42 Mbps |
| CPU | Qualcomm, 1.2 Ghz, ARM Cortex-A7 |
| RAM | 128 MB |
| FLASH storage | 256 MB |
| Powering options |
4-pin industrial DC power socket, 9 - 30 VDC USB Type-C: 5 VDC |
| SIM | 1 x Internal SIM slot (Mini SIM - 2FF), 1.8 V/3 V, eSIM (Optional) |
| Antenna connectors | 2 x SMA for Mobile |
| Ethernet | 1 x RJ45 port, 10/100/1000 Mbps |
| Inputs/Outputs | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Other | 1x USB Type-C Connector USB 3.0 (For power and data) |
| Status LEDs | 2 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED |
| Operating temperature | -40 °C to 75 °C |
| Housing | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 83 x 25 x 74.2 mm |
| Weight | 172 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | Status, SMS, USSD, Black/White list, Multiple PDN, Band management, APN, Bridge, Passthrough |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Monitoring and management | WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Hotspot | Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes |
Standard package
- TRB160 Gateway
- 9 W PSU
- 2 x Mobile antenna (magnetic mount, SMA male, 3 m cable)
- USB Type-C cable (0.8 m)
- 1x hex key
- Ethernet cable (1.5 m)
- QSG (Quick Start Guide)
- Packaging box
