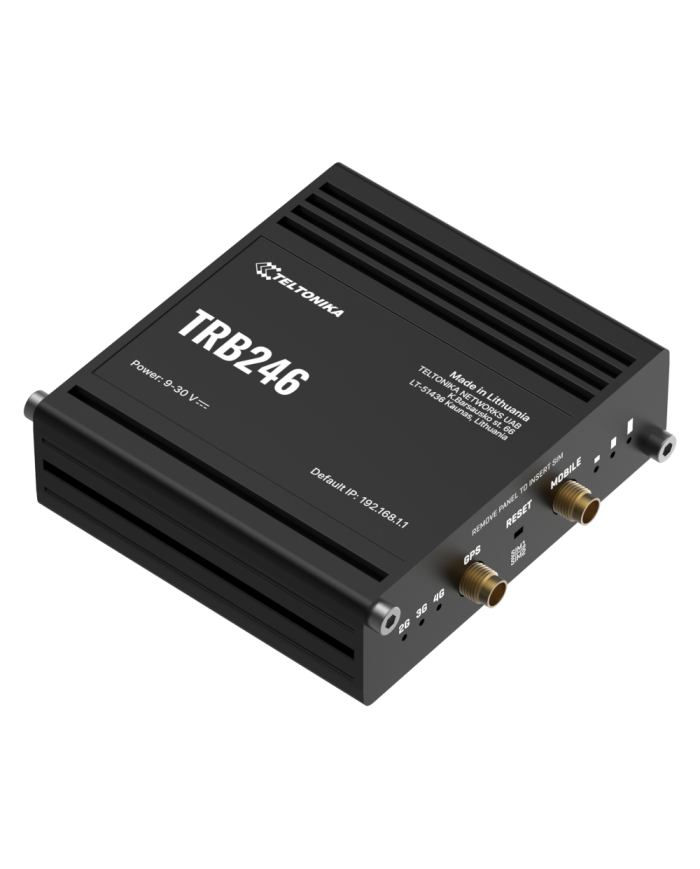

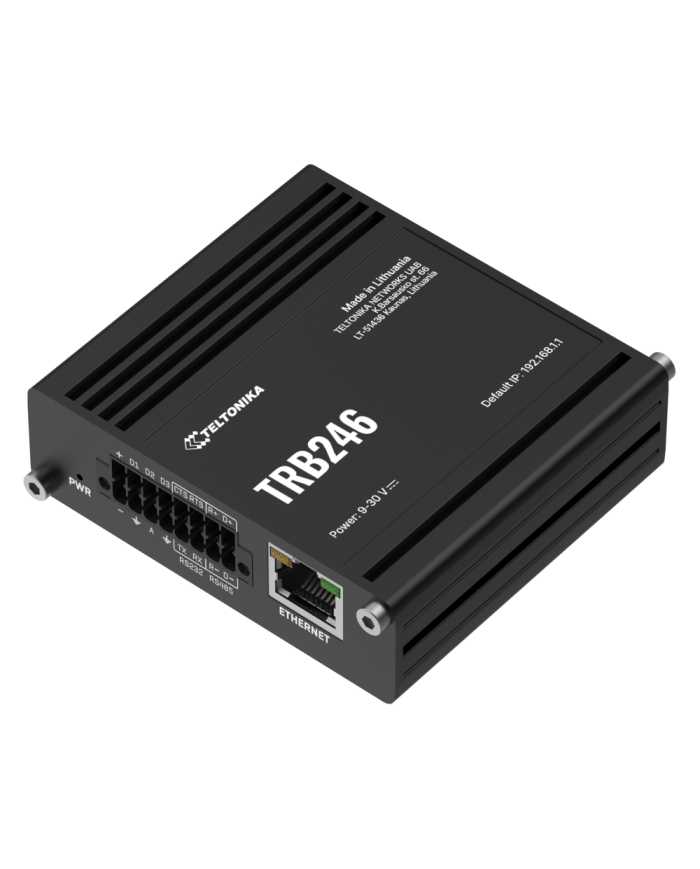

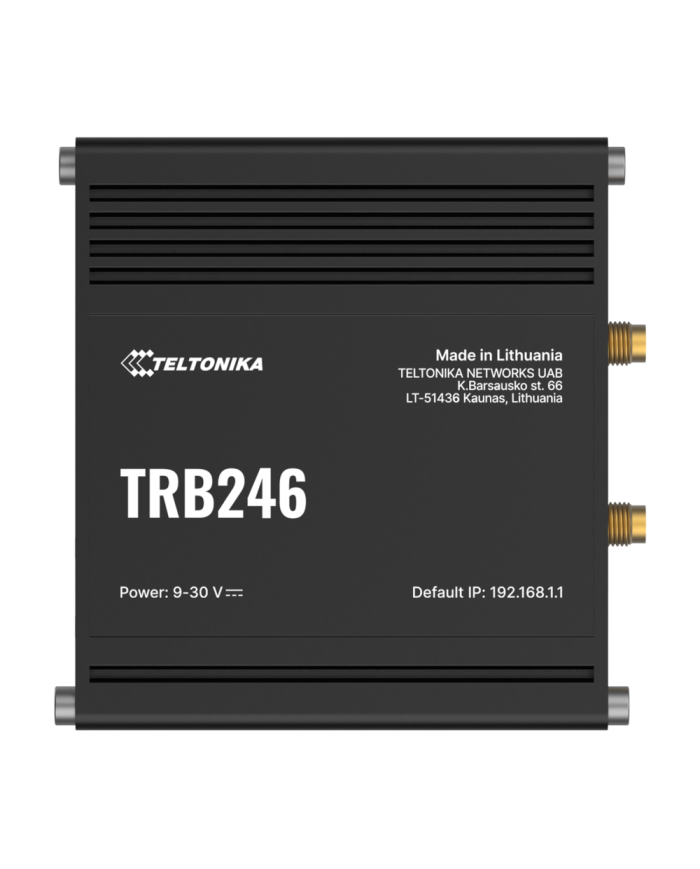

TRB246 Gateway
Ask for price
Industrial IoT Gateway
Connectivity - 4G/LTE (Cat 4), 3G, 2G
Dual SIM - Auto-failover, backup WAN, and more switching scenarios

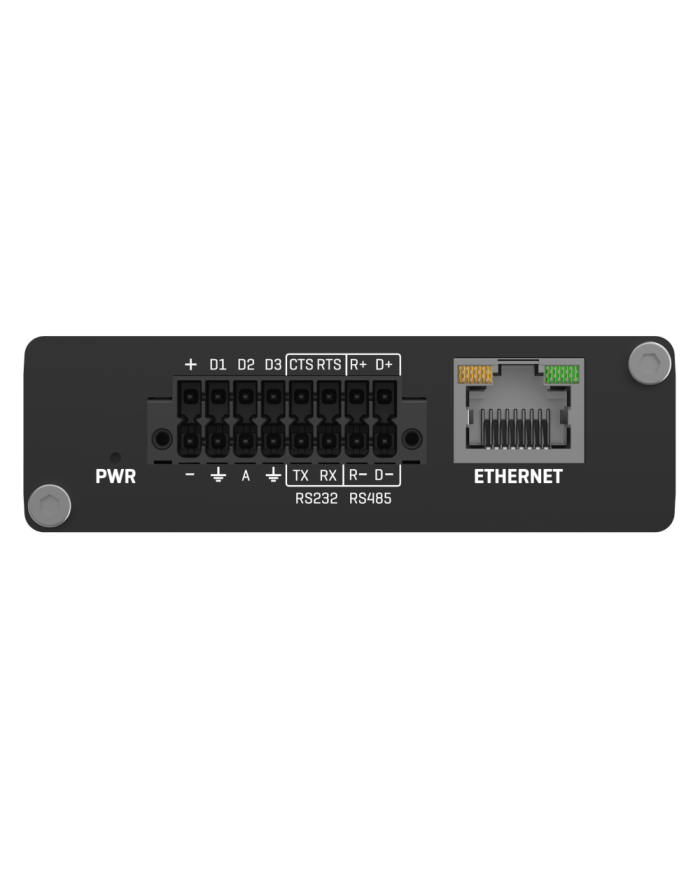

Interfaces - Ethernet, I/Os, and serial (RS232, RS485) interfaces with 16-pin terminal block
Protocols - Supports DNP3, DLMS, Modbus, and other communication protocols
Description
Product Details
The TRB246 is an industrial 4G/LTE gateway equipped with I/Os, RS232, RS485, and Ethernet interfaces for IoT solutions requiring versatility and reliable M2M communication support. This gateway has dual SIM functionality and supports multiple protocols, like DNP3, DLMS, and Modbus, vital for ensuring smooth data transmission. Encased in aluminium housing, this industrial-grade IoT gateway can tolerate extreme environmental conditions in manufacturing, agriculture, or construction.
KEY FEATURES
Hardware
| Mobile | 4G (LTE) - LTE Cat 4 150 Mbps DL, 50 Mbps UL; 3G - 42 Mbps DL, 5.76 Mbps UL; 2G - 296 Kbps DL, 236.8 Kbps UL |
| CPU | Mediatek, 580 Mhz, MIPS 24KEc |
| RAM | 128 MB |
| FLASH storage | 16 MB |
| Powering options | 16-pin terminal, 9-30 VDC |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, double stacked SIM tray |

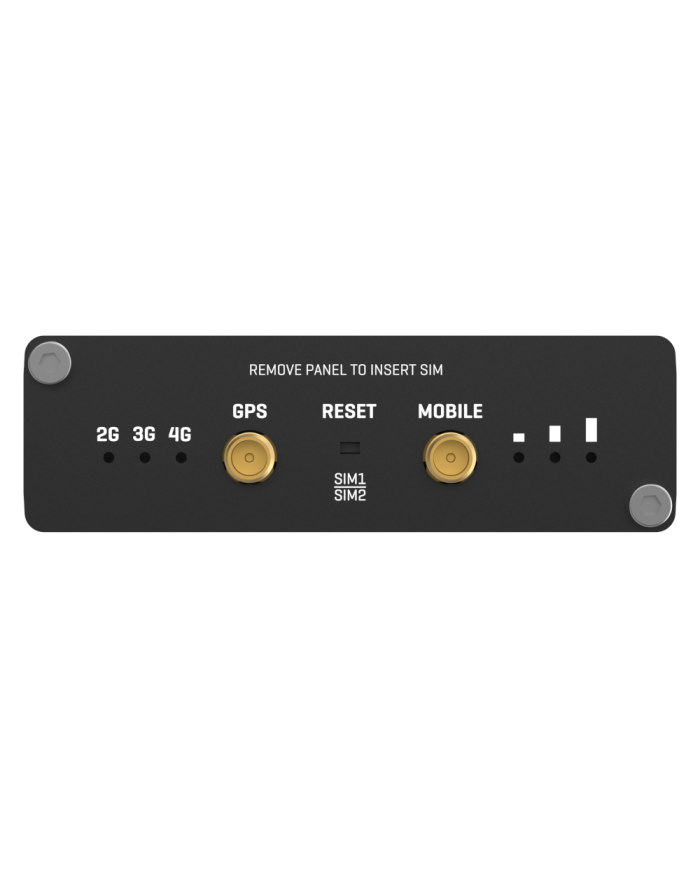

| Antenna connectors | 1 x SMA connector for Mobile, 1 x SMA connector for GNSS |
| Ethernet | 1 x RJ45 port, 10/100 Mbps |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Inputs/Outputs | 3 x Configurable digital I/O in 16-pin terminal block |
| Serial | 1 x RS232, 1 x RS485 |
| Status LEDs | 3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x ETH port status LED |
| Operating temperature | 40 °C to 75 °C |
| Housing | Aluminium housing |
| Dimensions (W x H x D) | 83 x 25 x 74.2 mm |
| Weight | 165 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits, Bridge, Passthrough |
| Network features | Routing, Network protocols, VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DDNS, Network backup, SSHFS |
| Monitoring and management | WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Cloud solutions | RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Hotspot | Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes |
| GNSS | GNSS, Coordinates, NMEA, NTRIP, Server software, Geofencing |
Standard package
- Gateway TRB246
- 16-pin terminal block
- 1x hex key
- QSG (Quick start guide)
- Packaging box
