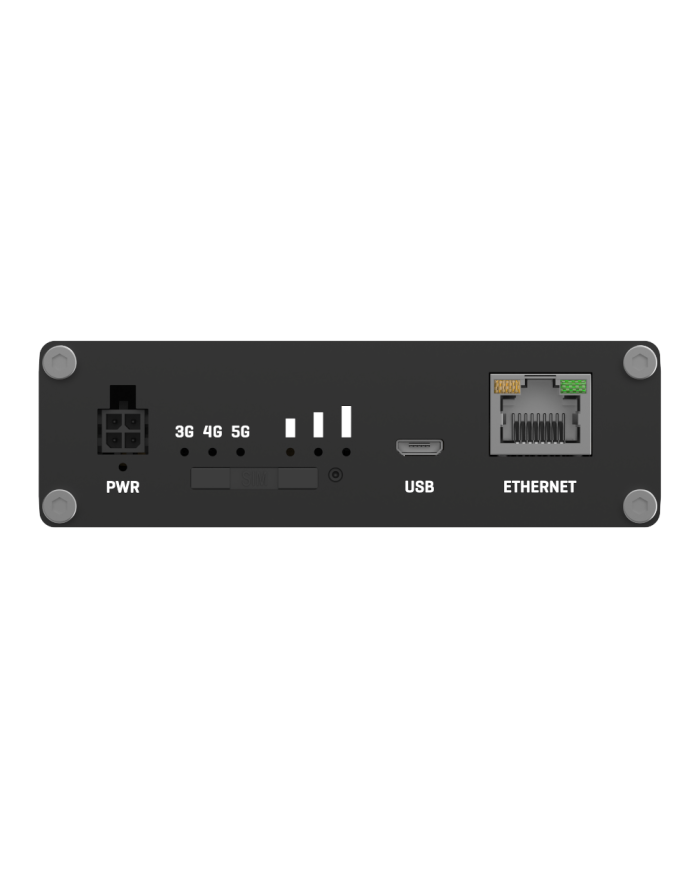

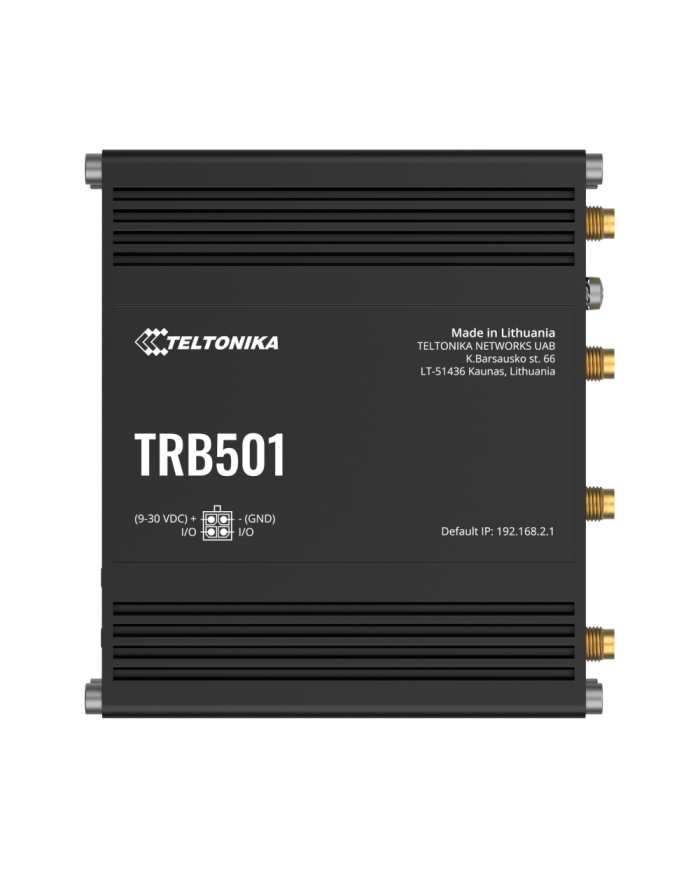

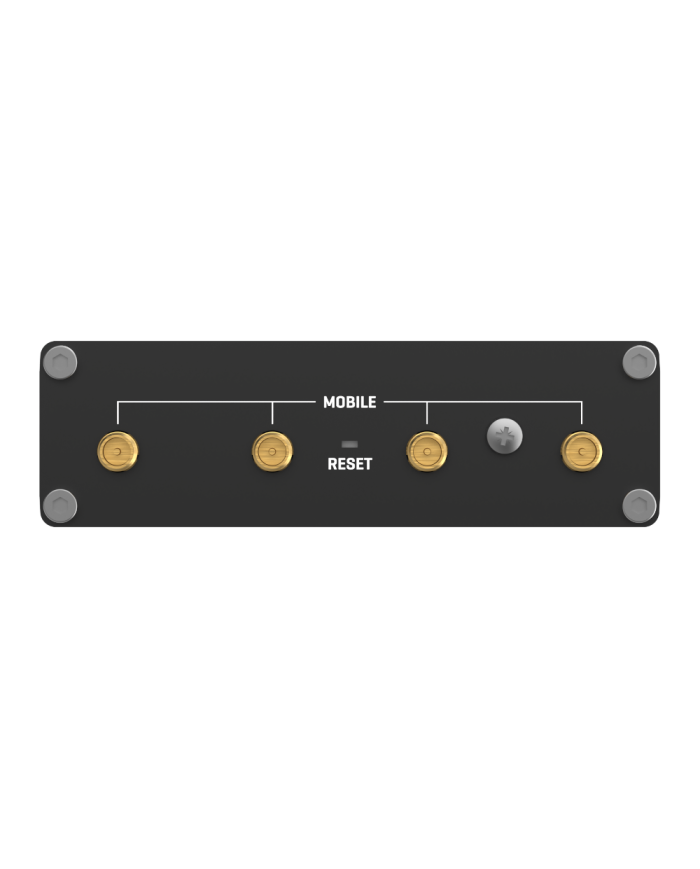

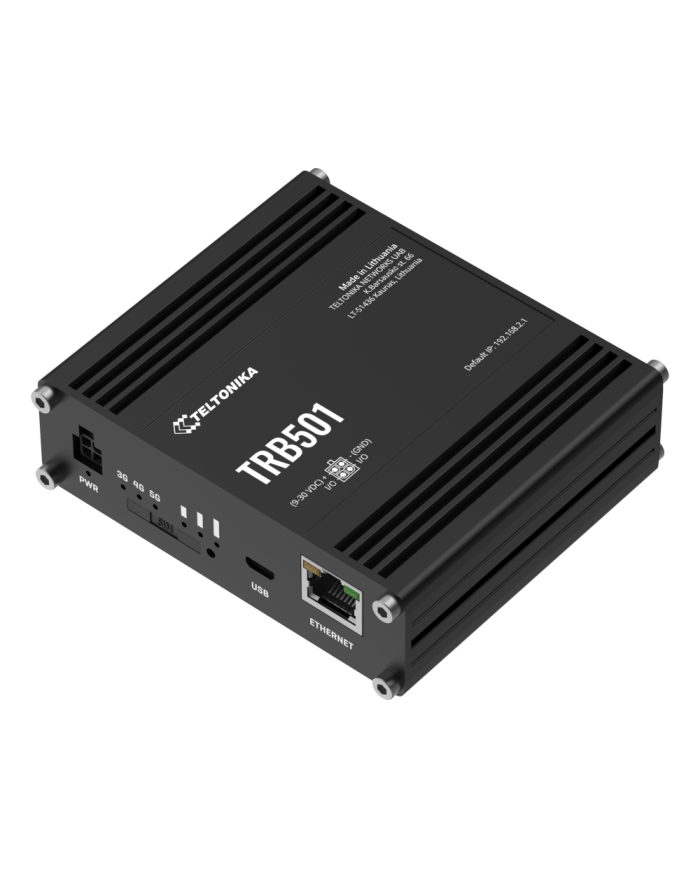

TRB501 Gateway
Ask for price
Industrial 5G Gateway
Next-Gen 5G - Lower latency, better spectrum use, and 5G carrier aggregation
High-speed Ethernet - Ultra-high wired data speeds of up to 2.5 Gbps
Compactness - 5G in limited spaces without compromising performance
IIoT protocol-ready - Modbus, DNP3 and DLMS for SCADA, smart grid, and telemetry
Description
Product Details
Experience the power of next-gen connectivity with the TRB501 Industrial 5G Gateway. Designed for demanding environments, it delivers blazing-fast, low-latency 5G for a new era of automation and efficiency. Built to push data faster with a 2.5 Gbps Ethernet and coupled with 5G carrier aggregation (3GPP Release 16), this compact device is ideal for solutions like POS systems, security installations, and IIoT applications.
KEY FEATURES
Hardware
| Mobile | 5G Sub-6 Ghz SA/NSA: 2.4/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE: Cat 19 1.6 Gbps DL, Cat 18 200 Mbps UL; 3G: 42 Mbps DL, 5.76 Mbps UL |
| CPU | Qualcomm, Single-Core, 1.5 Ghz, ARM Cortex-A7 |
| RAM | 512 MB |
| Storage | 512 MB |
| SIM | 1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder |
| Antenna connectors | 4 x SMA for Mobile |
| Ethernet | 1 x RJ45 port, 10/100/1000/2500 Mbps |
| Inputs/Outputs |
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Grounding | 1 x Grounding screw |
| Status LEDs | 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED |
| Operating temperature | -40° C to 75° C |
| Housing | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 100 x 30 x 93.4 mm |
| Weight | 241 g |
Software
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | SMS, USSD, Block/Allow list, Band management, SIM PIN code management, APN, Bridge, Passthrough, Framed routing |
| Network features | VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, Hotspot, Hotspot 2.0, SSHFS, VRF support, Traffic Management, IGMP Proxy, Port Mirroring |
| Security | Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, SSL certificate generation |
| VPN and tunneling | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| Monitoring and management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Cloud solutions | RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core |
| Services | OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS/COSEM |
Standard package
- TRB501 Gateway
- 9 W PSU
- 4x Mobile antennas (swivel, SMA male)
- Micro-USB cable (0.8 m)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
Data sheet
| Ethernet ports | 1 |
|---|---|
| Ethernet speed | 10/100/1000/2500 Mbps |
| Connectivity | 3G 4G/LTE Cat 19 5G |
