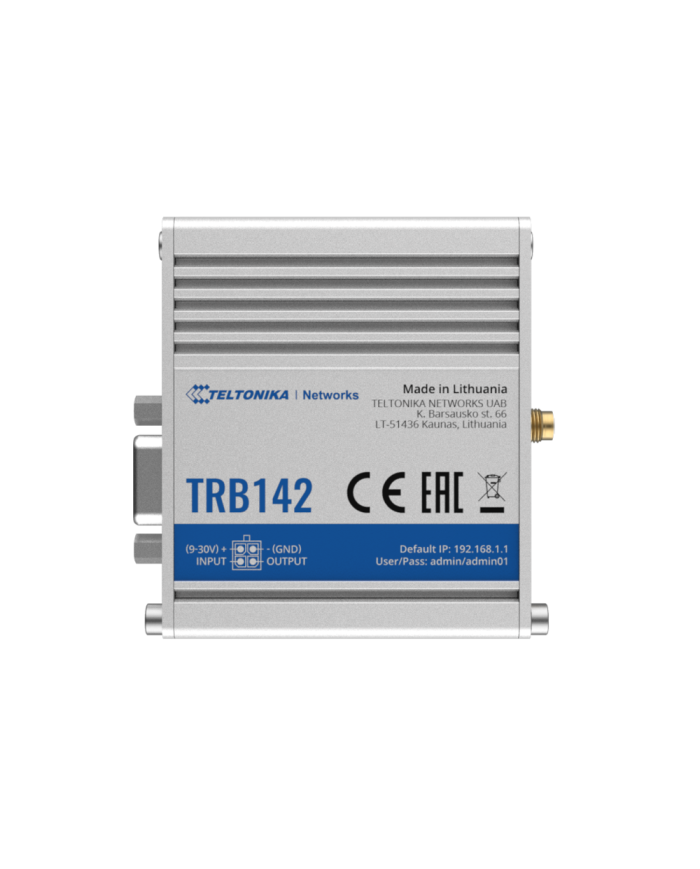

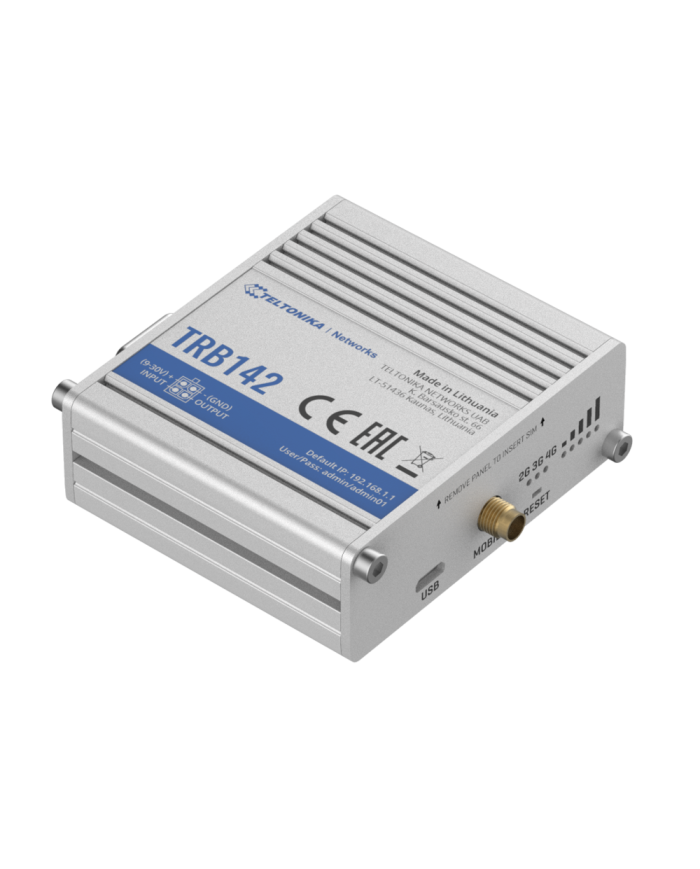

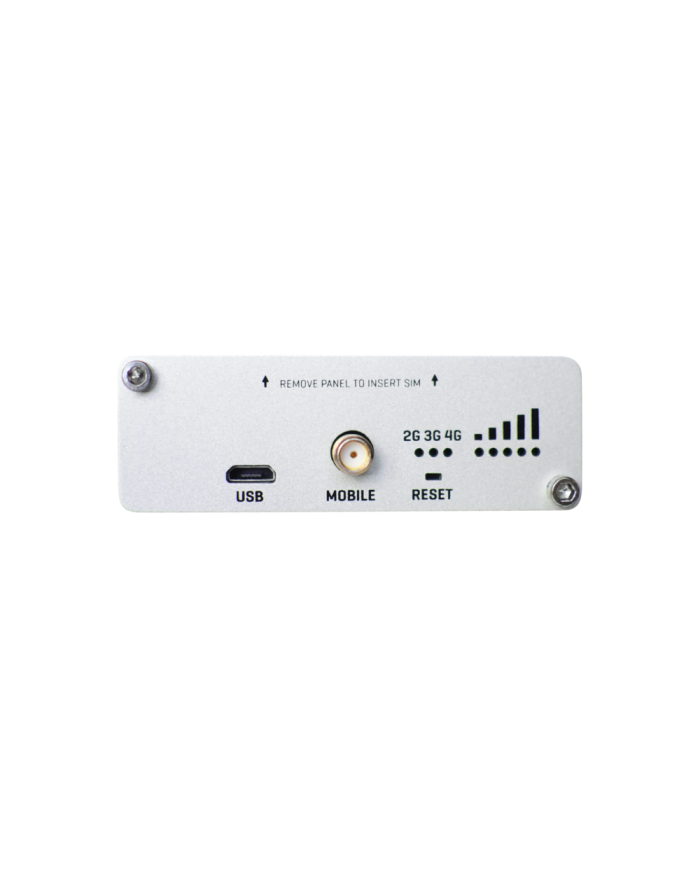

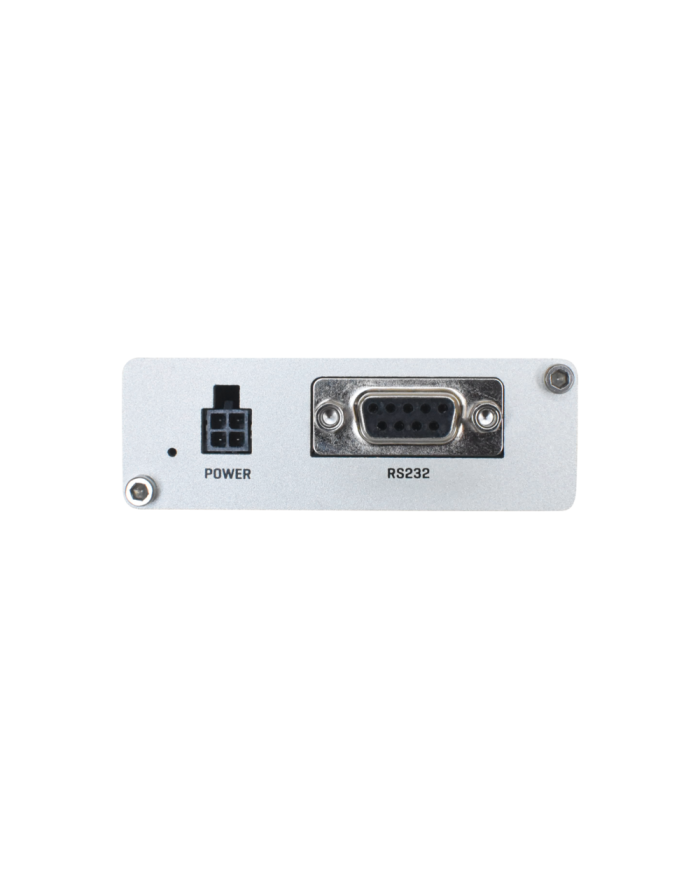

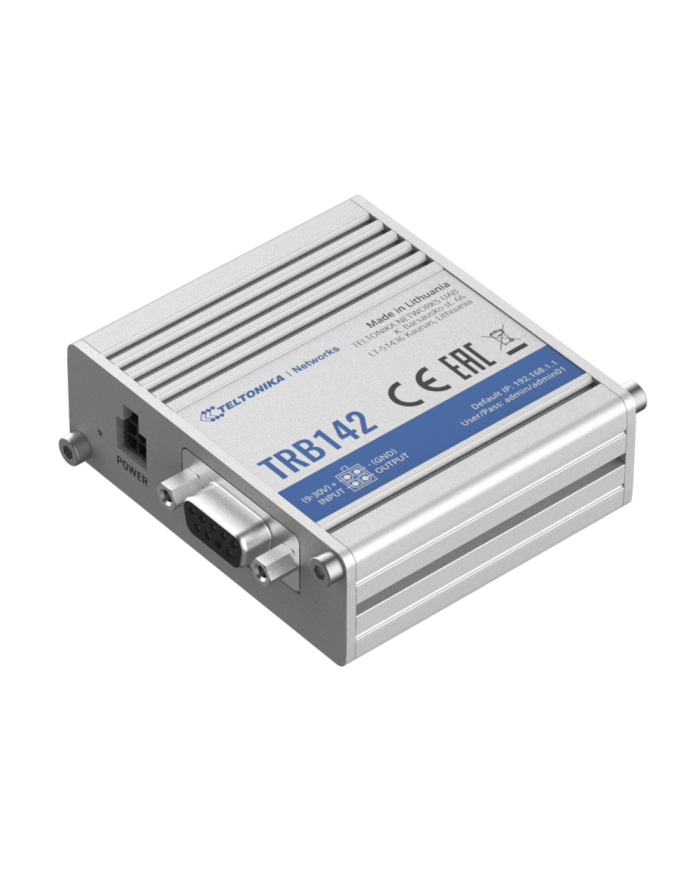

TRB142 Gateway
Ask for price
Industrial Rugged LTE RS232 Gateway
Connectivity: 4G/LTE (Cat 1), 3G, 2G
Durability: rugged aluminium housing
Serial ports: equipped with RS232 for serial communication
9-30V: wide range of supported power supply voltages
Compactness: small size, easy installation
RMS: compatible with Teltonika Remote Management System
Description
Product Details
TRB142 comes with a widely used RS232 interface for remote device management. It is equipped with mission-critical LTE Cat 1 capabilities and software based on OpenWRT, hence offering a high degree of customization. Just like the other TRB series products, it provides a wide range of software features such as SMS control, VPN, IPsec, Firewall, and FOTA support. This gateway is durable, offers a wide range of power supply voltages and operating temperatures (-40°C ~ +75°C). What is more, it is compatible with Teltonika Networks Remote Management System (RMS).
Standard package contains
- TRB142 Gateway
- 9W PSU
- 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
- Micro-USB cable (0.8 m)
- 1 x hex key
- QSG (Quick Start Guide)
- RMS flyer
- Packaging box
Full technical specification is available in Attachments.
Data sheet
| Operating voltage | 9-30 VDC |
|---|---|
| Connectivity | 2G 3G 4G/LTE Cat 1 |
| Maximum power consumption | 5 W |
| Dimensions | 74,5 x 25 x 64,4 mm |
| Weight | 135 g |
| Mounting options | DIN rail flat surface wall |
| Operating temperature | -40°C - 75°C |
| Serial ports | RS232 |
| IP degree of protection | IP30 |
| USB ports | 1 |
| Configurable I/O | 2 |
| SIM slots | 1 |
| Operating system | RutOS (OpenWrt based Linux OS) |
| VPN | IPsec OpenVPN WireGuard |
