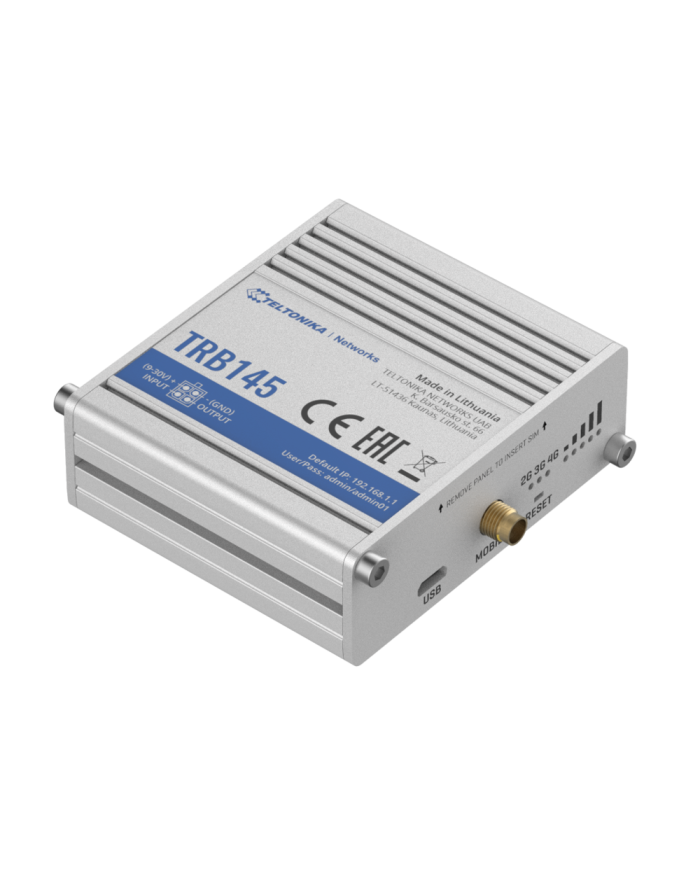

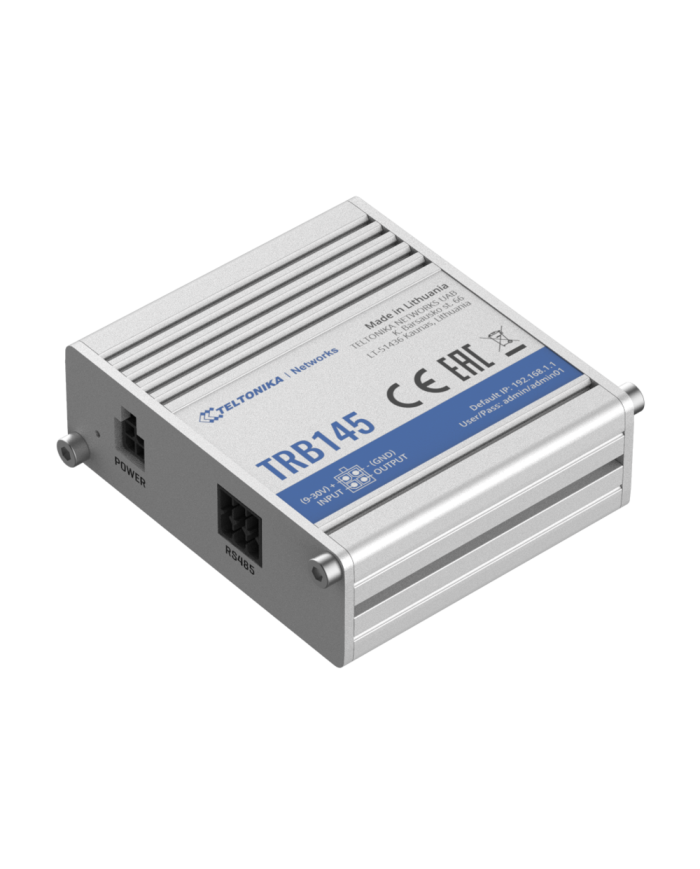

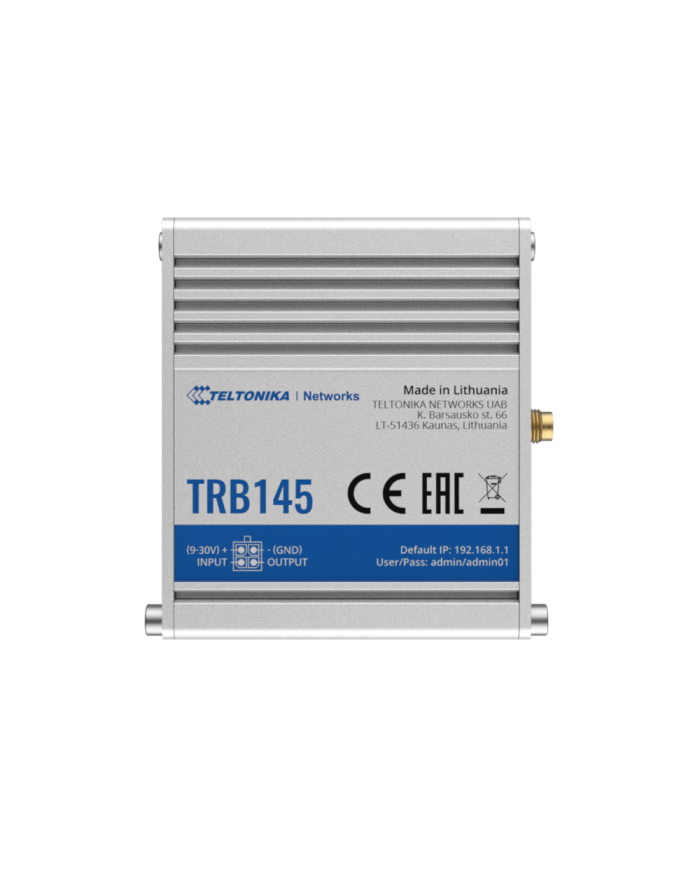

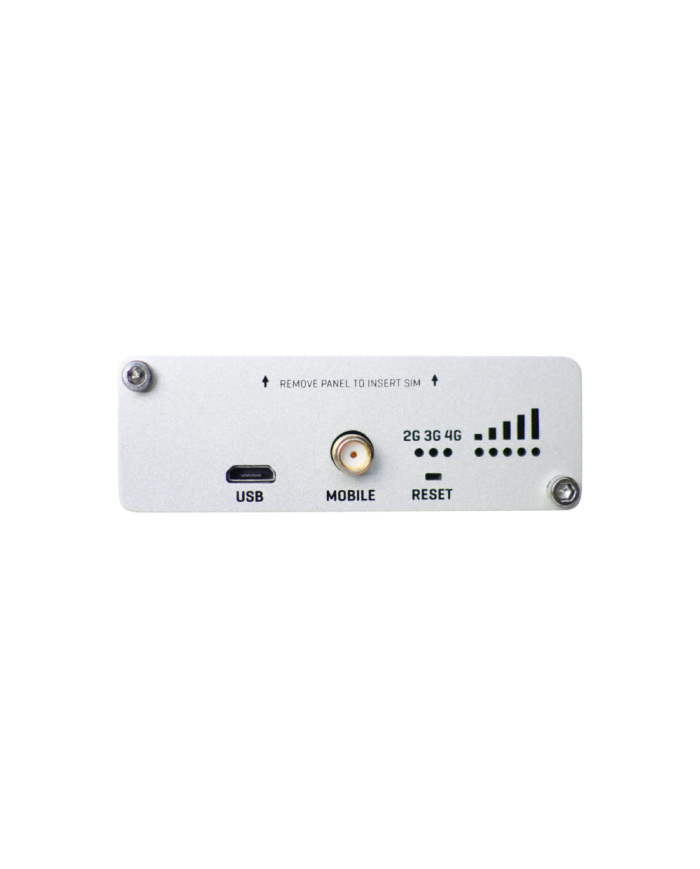

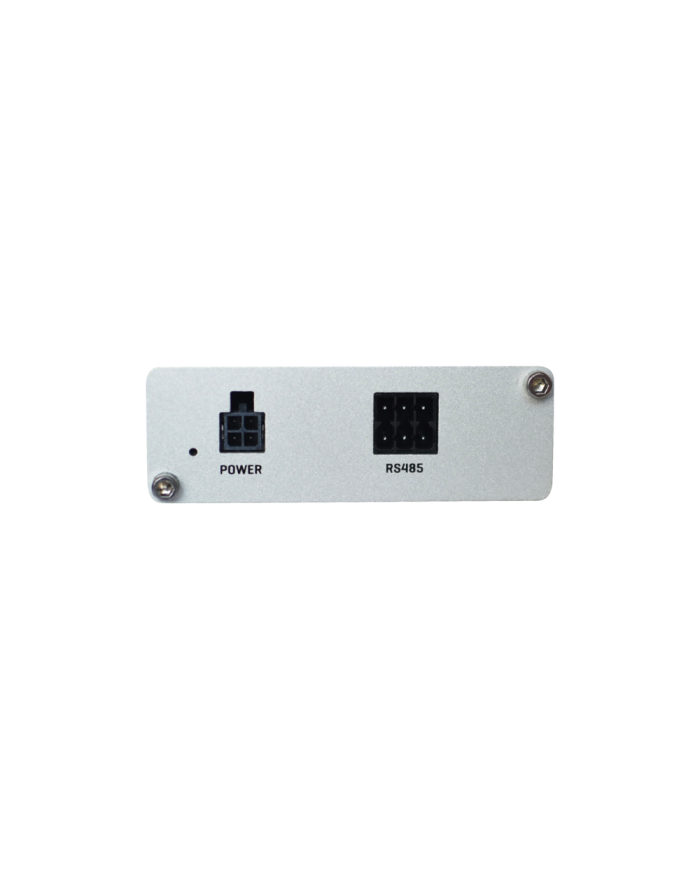

TRB145 Gateway
Ask for price
Industrial Rugged LTE RS485 Gateway
Connectivity: 4G/LTE (Cat 1), 3G, 2G
Durability: rugged aluminium housing
Serial ports: equipped with RS485 for serial communication
9-30V: wide range of supported power supply voltages
Compactness: small size, easy installation
RMS: compatible with Teltonika Remote Management System
Description
Product Details
TRB145 is a mission-critical LTE Cat 1 gateway, equipped with RS485 interface. Compact design and easy installation make this gateway perfect for applications, where a sole gadget must be remotely controlled over the RS485 serial interface. Just like the rest of TRB products, TRB145 is engineered to be used in industrial applications. Therefore, it has a wide range of software features, such as SMS control, Firewall, Open VPN, IPsec, Teltonika Networks Remote Management System (RMS), and FOTA support. The device offers a wide range of supported power supply voltages (9-30 V) and operating temperatures (-40°C ~ +75°C).
Standard package contains
- TRB145 Gateway
- 9W PSU
- 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
- Micro-USB cable (0.8 m)
- 1 x hex key
- RS485 connector
- QSG (Quick Start Guide)
- RMS Flyer
- Packaging box
Full technical specification is available in Attachments.
Data sheet
| Operating voltage | 9-30 VDC |
|---|---|
| Connectivity | 2G 3G 4G/LTE Cat 1 |
| Maximum power consumption | 5 W |
| Dimensions | 74,5 x 25 x 64,4 mm |
| Weight | 130 g |
| Mounting options | DIN rail flat surface wall |
| Operating temperature | -40°C - 75°C |
| IP degree of protection | IP30 |
| USB ports | 1 |
| Configurable I/O | 2 |
| SIM slots | 1 |
| Operating system | RutOS (OpenWrt based Linux OS) |
| VPN | IPsec OpenVPN WireGuard |
