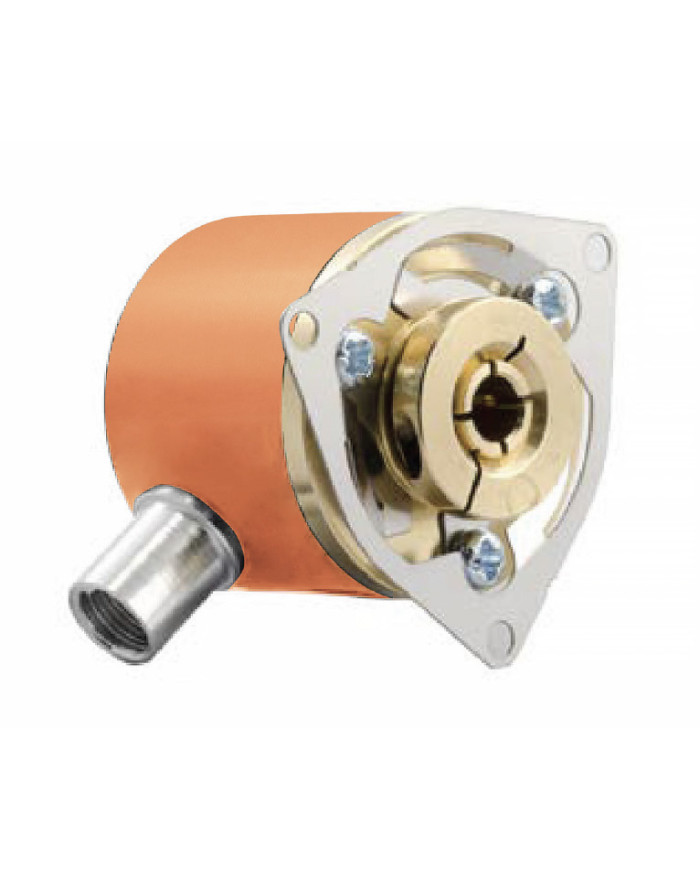

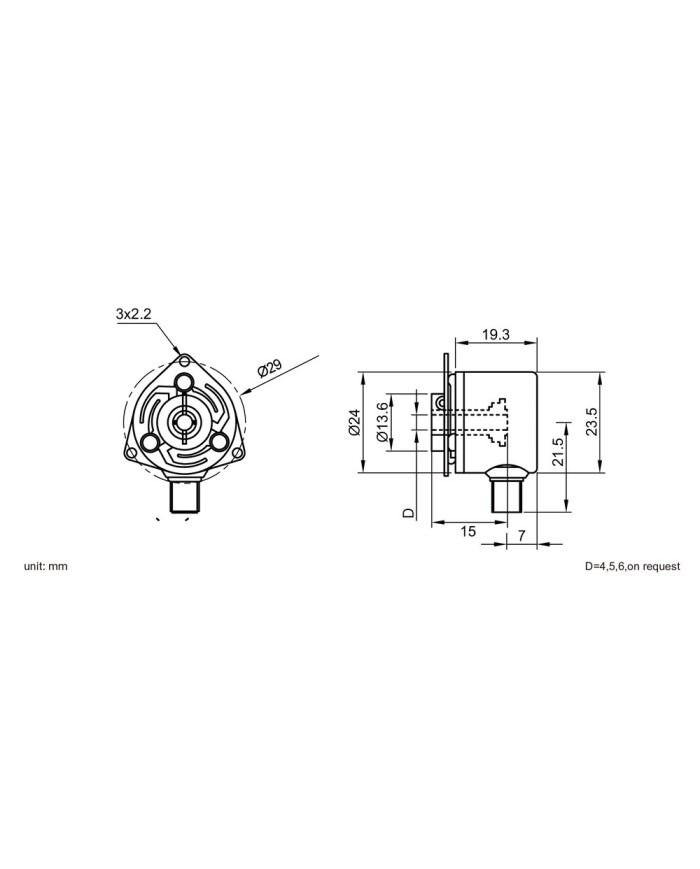

EINB24 Micro Blind Shaft Incremental Encoder
Ask for price
- ⌀ 24mm micro od, suitable for small space
- Fast response and high precision
- Max. 2500 pulses
- Suitable for small instrument applications
Description
Product Details
| Electrical Specifications | |
|---|---|
| Supply Voltage | 10-30VDC |
| Current Consumption | 60mA (P-P) |
| Output Circuit | PUSH-PULL output |
| Resolution | 2500PPR (Max. ) |
| Output Frequency | 150kHz |
| Permissible Load/Channel | Max. 30mA |
| Rise Time | 200ns |
| Electrical Protection |
Short Circuit, reverse polarity and
lightning Protection |
| Level signal | H: >70%VCC L: <1V |
| Mechanical Specifications | |
|---|---|
| Maximum speed | 6000rpm |
| Shaft load | Axial 20N Radial 20N |
| Starting Torque |
<0.005Nm
<0.005Nm |
| Shock Resistance | EN 60068-2-27 1000m/s² 6ms |
| Vibration Resistance | EN 60068-2-6 100m/s² 55…2000HZ |
| Operating Temperature | -25°C to +85°C |
| Protection Class | IP65 |
| Material | Aluminum |
| Weight | 50g |
| Connection | 3A / 3R |
|---|---|
| GND | white |
| VCC | brown |
| A | green |
| B | yellow |
| Z | grey |
| AÌ„ | pink |
| BÌ„ | blue |
| ZÌ„ | red |
| Ordering Code | |||||
|---|---|---|---|---|---|
|
Example: EINB2404A593R-1024
24 micro blind shaft encoder 1024 pulse push-pull output with ABZ inverse signal, aperture 4mm, radial straight out cable |
|||||
| EINB24 | shaft | output | signals | connection | resolution |
|
04=4mm
05=5mm 06=6mm XX=custom-made |
A5=10-30V
push-pull |
8=ABZ
9=ABZAÌ„BÌ„ZÌ„ |
3A=axial output
3R=radial output |
36/50/100
125/128/200 256/500/512 1000/1024 1250/1500 2000/2048 2500 36-2500 customizable |
|
