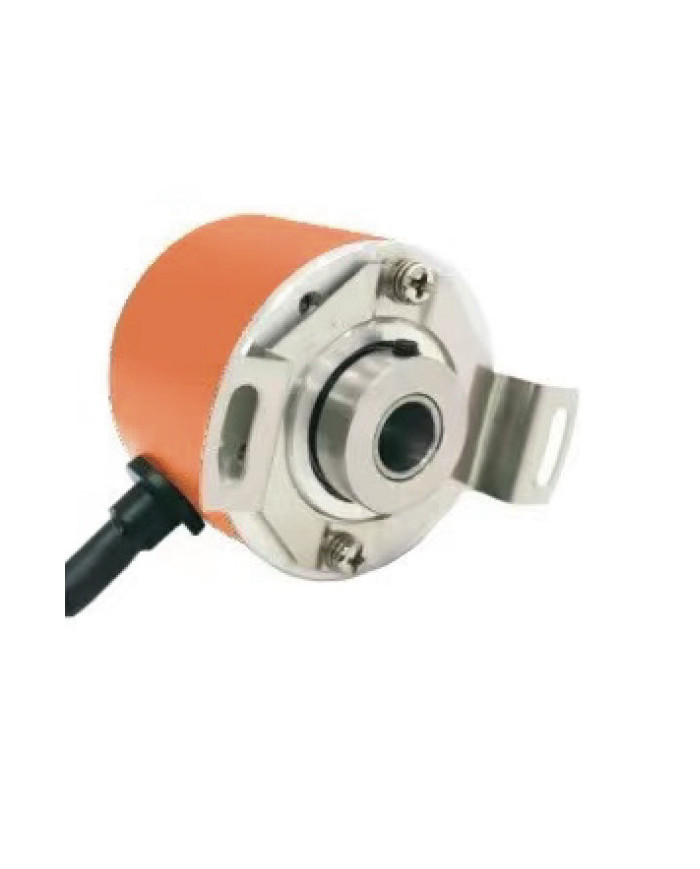

EINB40 Small Blind Shaft Incremental Encoder
Ask for price
- High precision, Stable working performance
- ⌀38mm OD, Optional IP67
- Max. 5000 pulses
- Suitable for robot, machine tool and other applications
Description
Product Details
| Electrical Specifications | |
|---|---|
| Supply Voltage | 5VDC, 10-30VDC |
| Current Consumption | 60mA (P-P) , 140mA (RS422) |
| Output Circuit | PUSH-PULL output , RS422 |
| Resolution | 5000PPR(Max. ) |
| Output Frequency | 150kHz |
| Permissible Load/Channel | Max. 30mA |
| Rise Time | 200ns |
| Electrical Protection |
Short Circuit, reverse polarity and
lightning Protection |
| Level signal | H: >70%VCC L: <1V |
| Mechanical Specifications | |
|---|---|
| Maximum speed | 10000rpm |
| Shaft load | Axial 30N Radial 60N |
| Starting Torque | <0.025Nm |
| Shock Resistance | EN 60068-2-27 1000m/s² 6ms |
| Vibration Resistance | EN 60068-2-6 100m/s² 55…2000HZ |
| Operating Temperature | -25°C to +85°C |
| Protection Class | IP65/IP67(Option) |
| Material | Aluminum |
| Weight | 120g |
| Connection | 3R |
|---|---|
| GND | white |
| VCC | brown |
| A | green |
| B | yellow |
| Z | grey |
| AÌ„ | pink |
| BÌ„ | blue |
| ZÌ„ | red |
| Ordering Code | |||||
|---|---|---|---|---|---|
|
Example: EINB4006A593R-1024
40 small blind shaft encoder 1024 pulse push-pull output with ABZ inverse signal, aperture 6mm, radial straight out cable |
|||||
| EINB40 | shaft | output | signals | connection | resolution |
|
06=6mm
08=8mm XX=custom-made |
A2=5V RS422
A5=10-30V push-pull |
8=ABZ
9=ABZAÌ„BÌ„ZÌ„ |
3R=axial output |
100/125/128
200/256/500 512/1000/1024 1250/1500 2048/2000 2500/3000 3600/4000 4096/5000 50-5000 customizable |
|
