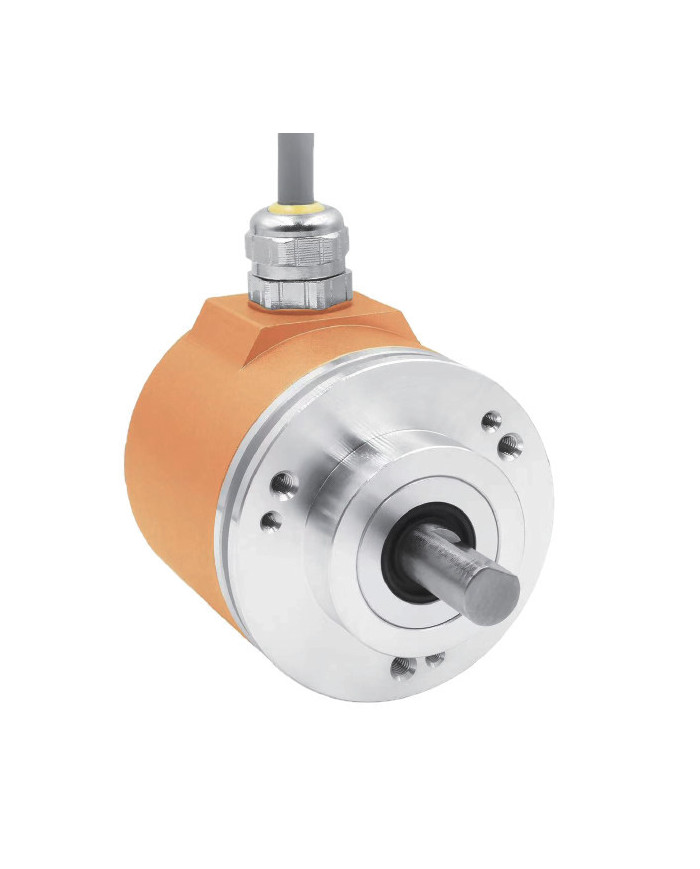

EINS58 Standard Solid Shaft Encoder
Ask for price
- High protection grade, up to IP67, suitable for various occasions
- Standard ⌀58mm OD, easy to install and pair
- Max. 10000 pulses
- Suitable for applications such as industrial automation and drive control
Description
Product Details
| Electrical Specifications | |
|---|---|
| Supply Voltage | 5VDC, 10-30VDC |
| Current Consumption | 60mA (P-P), 140mA (RS422) |
| Output Circuit | PUSH-PULL output, RS422 |
| Resolution | 10000PPR (Max.) |
| Output Frequency | 150kHz |
| Permissible Load/Channel | Max. 30mA |
| Rise Time | 200ns |
| Electrical Protection |
Short Circuit, reverse polarity and
lightning Protection |

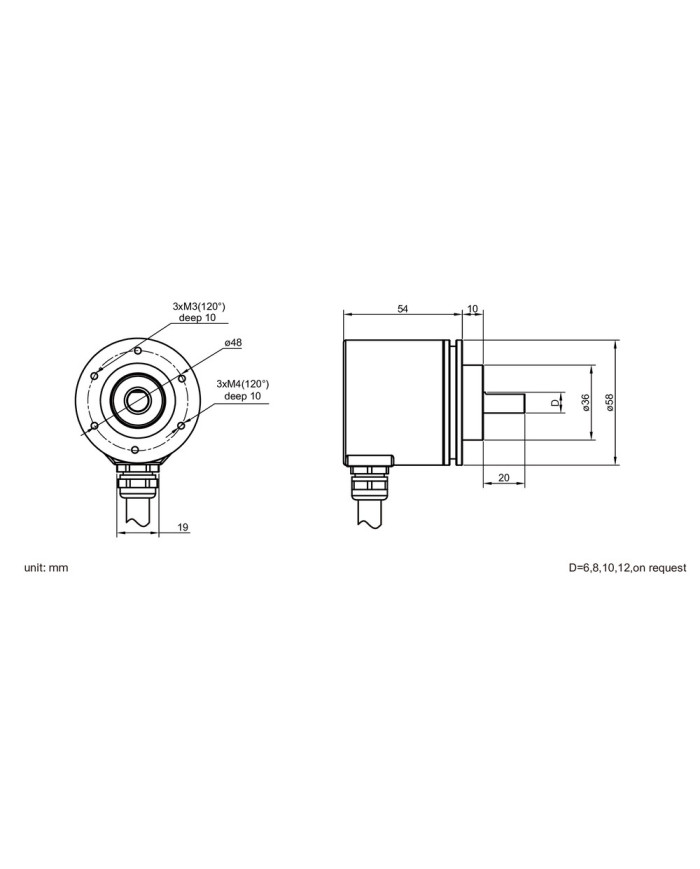

| Level signal | H: >70%VCC L: <1V |
| Mechanical Specifications | |
|---|---|
| Maximum speed | 12000rpm |
| Shaft load | Axial 50N Radial 100N |
| Starting Torque | <0.05Nm |
| Shock Resistance | EN 60068-2-27 1000m/s² 6ms |
| Vibration Resistance | EN 60068-2-6 100m/s² 55…2000HZ |
| Operating Temperature | -25°C to +85°C |
| Protection Class | IP65/IP67 (option) |
| Material | Aluminum alloy / Stainless steel |
| Weight | 300g |
| Connection | 3A / 3R | 6A/6R/8A/8R |
|---|---|---|
| GND | white | 1 |
| VCC | brown | 2 |
| A | green | 3 |
| B | yellow | 4 |
| Z | grey | 5 |
| AÌ„ | pink | 6 |
| BÌ„ | blue | 7 |
| ZÌ„ | red | 8 |
| Ordering Code | |||||
|---|---|---|---|---|---|
|
Example: EINS5806A593R-1024
58 standard solid shaft encoder 1024 pulse push-pull output with ABZ inverse signal, axle diameter 6mm, radial straight out cable |
|||||
| EINS58 | shaft | output | signals | connection | resolution |
|
06=6x10mm
08=8x12mm 10=10x20mm 12=12x25mm XX=custom-made |
A2=5V RS422
A5=10-30V push-pull |
8=ABZ
9=ABZAÌ„BÌ„ZÌ„ |
3A=axial output
3R=radial output 6A=connector axial output (cw) 6R=connector radial output (cw) 8A=connector axial output (ccw) 8R=connector radial output (ccw) |
200/256/500
512/1000/1024 1250/1500 2000/2048 2500/3000 3600/4000 4096/5000 6000/7000 7500/8000 8192/9000 10000 50-10000 customizable |
|
