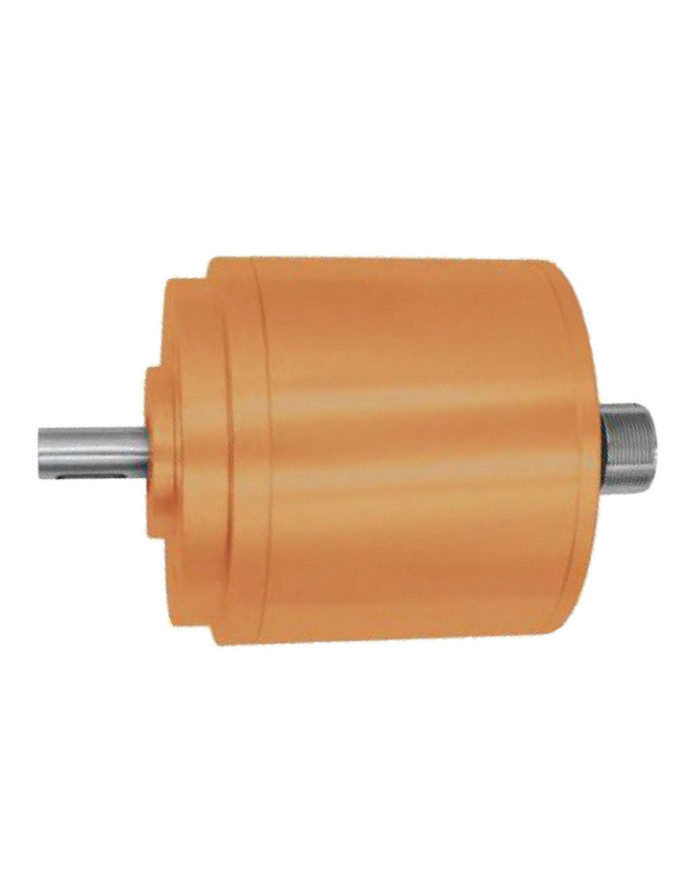

EINS90 Heavy-duty Solid Shaft Encoder
Ask for price
- Heavy-duty encoder
- High precision, short response time used
- Max. 6000 pulses
- Suitable for crane, excavator and other heavy machinery
Description
Product Details
| Electrical Specifications | |
|---|---|
| Supply Voltage | 5VDC, 10-30VDC |
| Current Consumption | 60mA (P-P), 140mA (RS422) |
| Output Circuit | PUSH-PULL output, RS422 |
| Resolution | 6000PPR (Max.) |
| Output Frequency | 100kHz |
| Permissible Load/Channel | Max. 30mA |
| Rise Time | 200ns |
| Level signal | H:>70%VCC L:<1V |
| Electrical Protection |
Short Circuit, reverse polarity
and lightning Protection |

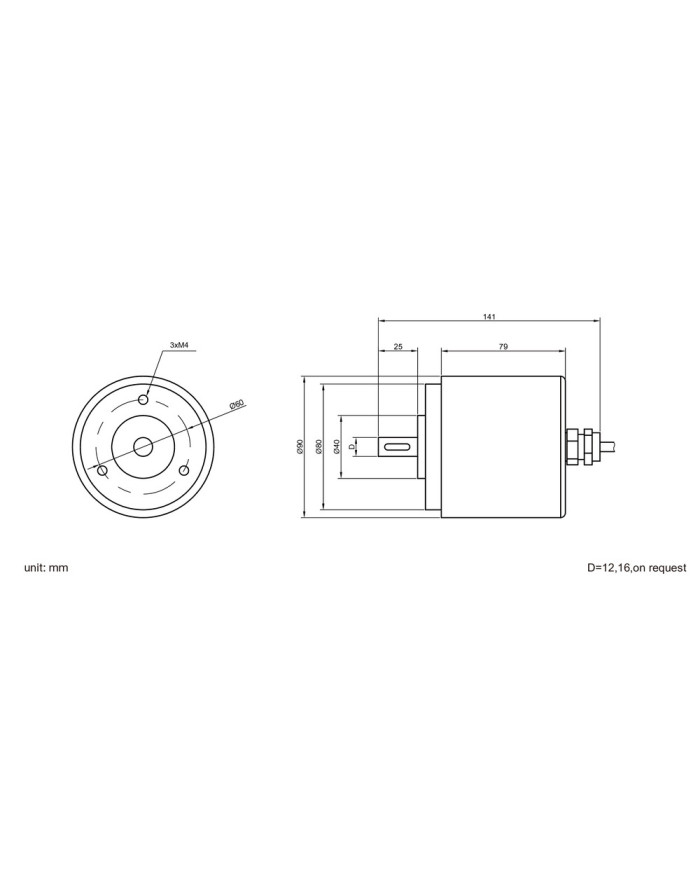

| Mechanical Specifications | |
|---|---|
| Maximum speed | 5000rpm |
| Shaft load | Axial 100N Radial 200N |
| Starting Torque | <0.08Nm |
| Shock Resistance | EN 60068-2-27 1000m/s²6ms |
| Vibration Resistance |
068-2-6 100m/s² 55…2000HZ
EN 60068-2-6 100m/s²55…2000HZ |
| Operating Temperature | -20°C to +85°C |
| Protection Class | IP66 |
| Material | Aluminum alloy / Stainless steel |
| Weight | 850g |
| Connection | 3A / 3R | 6A/6R/8A/8R |
|---|---|---|
| GND | white | 1 |
| VCC | brown | 2 |
| A | green | 3 |
| B | yellow | 4 |
| Z | grey | 5 |
| AÌ„ | pink | 6 |
| BÌ„ | blue | 7 |
| ZÌ„ | red | 8 |
| Ordering Code | |||||
|---|---|---|---|---|---|
|
Example: EINS9012A593R-1024
90 heavy-duty solid shaft encoder 1024 pulse push-pull output with ABZ inverse signal, axle diameter 12mm, radial straight out cable |
|||||
| EINS90 | shaft | output | signals | connection | resolution |
|
12=12x25mm
16=16x30mm XX=custom-made |
A2=5V RS422
A5=10-30V push-pull |
8=ABZ
9=ABZAÌ„BÌ„ZÌ„ |
3A=axial output
3R=radial output 6A=connector axial output (cw) 6R=connector radial output (cw) 8A=connector axial output (ccw) 8R=connector radial output (ccw) |
200/256/500
512/1000/1024 1250/1500 2000/2048 2500/3000 3600/4000 4096/5000 6000 50-6000 customizable |
|
