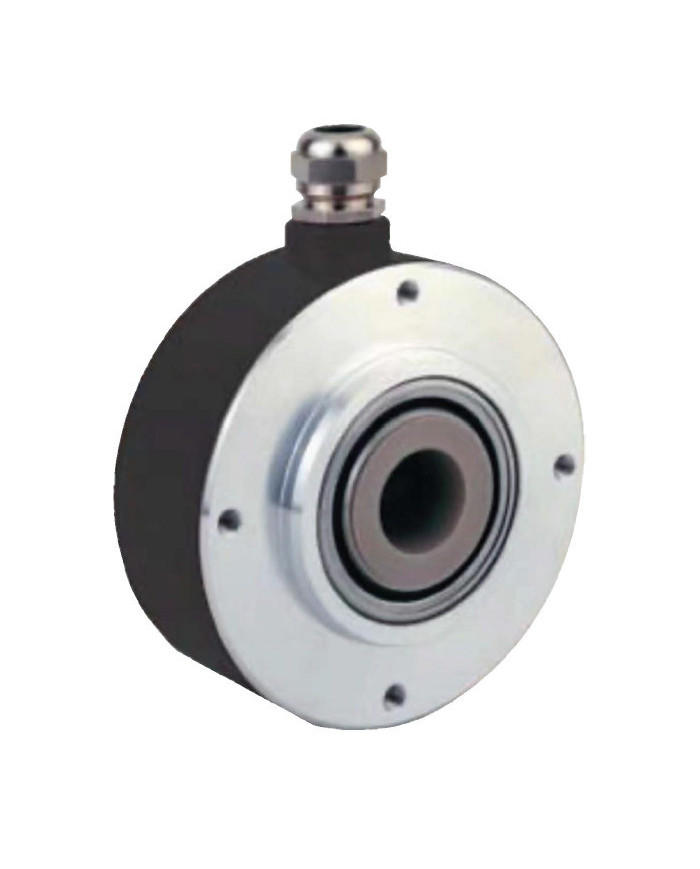

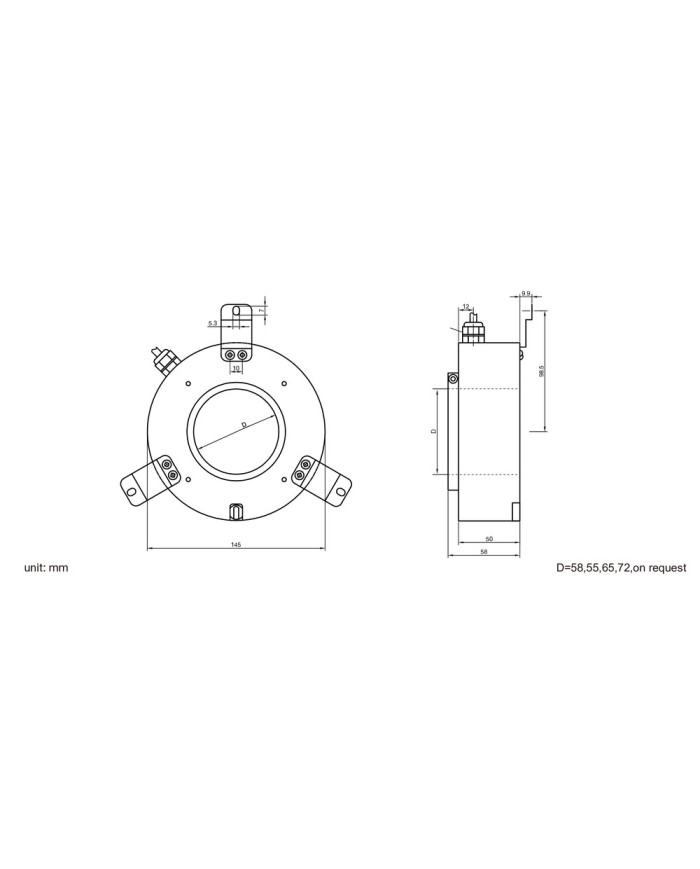

EINH145 Heavy-duty Hollow Shaft Encoder
Ask for price
- Large aperture, suitable for large spindle size
- Can be equipped with shaft sleeve protection
- Max. 2500 pulses
- Suitable for large motor, large water pump control and other applications
Description
Product Details
| Electrical Specifications | |
|---|---|
| Supply Voltage | 5VDC, 10-30VDC |
| Current Consumption | 60mA (P-P), 140mA (RS422) |
| Output Circuit | PUSH-PULL output, RS422 |
| Resolution | 2500PPR (Max.) |
| Output Frequency | 100kHz |
| Permissible Load/Channel | Max. 30mA |
| Rise Time | 200ns |
| Level signal | H:>70%VCC L:<1V |
| Electrical Protection |
Short Circuit, reverse polarity
and lightning Protection |
| Mechanical Specifications | |
|---|---|
| Maximum speed | 800rpm |
| Shaft load | Axial 200N Radial 200N |
| Starting Torque | <1.5Nm |
| Shock Resistance | EN 60068-2-27 1000m/s² 6ms |
| Vibration Resistance | 50m/s² 10…2000Hz |
| Operating Temperature | -10°C to +70°C |
| Protection Class | IP54 |
| Material | Aluminum |
| Weight | 1700g |
| Connection | 3R | 6R |
|---|---|---|
| GND | white | 1 |
| VCC | brown | 2 |
| A | green | 3 |
| B | yellow | 4 |
| Z | grey | 5 |
| AÌ„ | pink | 6 |
| BÌ„ | blue | 7 |
| ZÌ„ | red | 8 |
| Ordering Code | |||||
|---|---|---|---|---|---|
|
Example: EINH14548A593R-1024
145 heavy-duty hollow shaft encoder 1024 pulse push-pull output with ABZ inverse signal, aperture 48mm, radial straight out cable |
|||||
| EINH145 | shaft | output | signals | connection | resolution |
|
48=48mm
55=55mm 65=65mm 72=72mm XX=custom-made |
A2=5V RS422
A5=10-30V push-pull |
8=ABZ
9=ABZAÌ„BÌ„ZÌ„ |
3R=radial output
6R=connector radial output (CW) |
1024/2500
50-2500 customizable |
|
