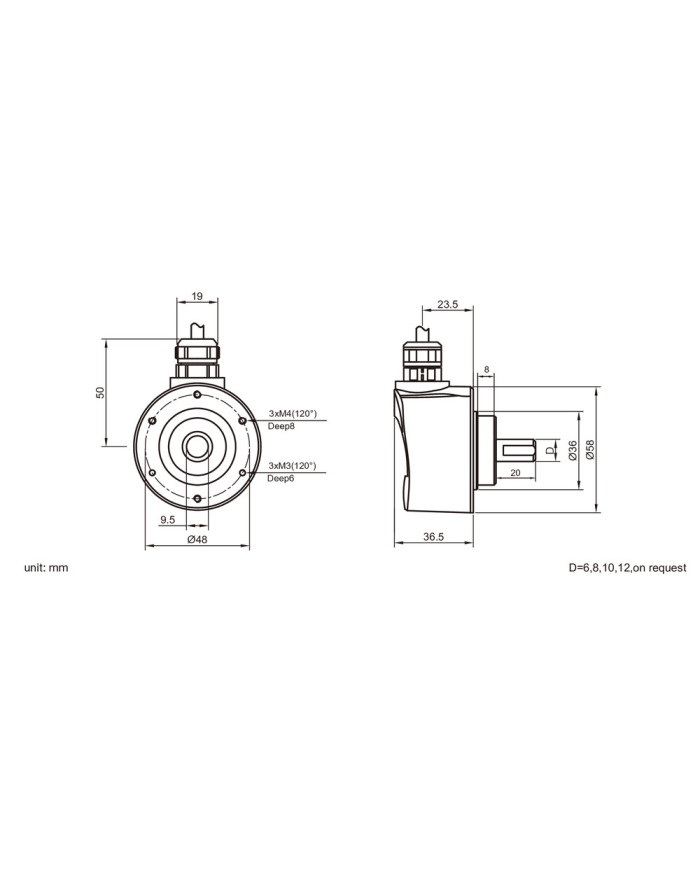

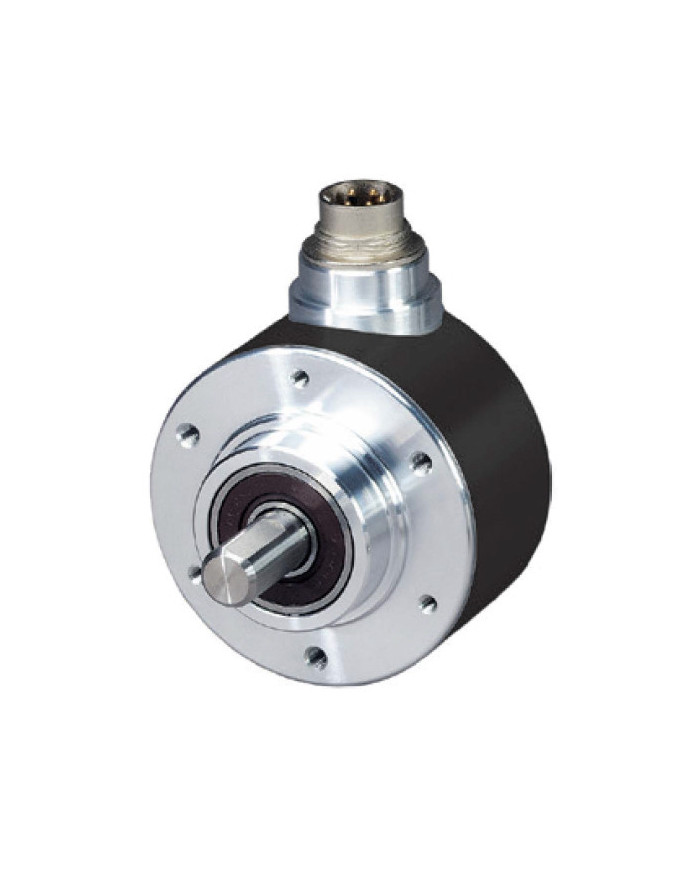

FINS58 High Performance Solid Shaft Encoder

Ask for price

Excellent performance, wide selection, IP67 structure option
Optional sinusoidal output or square wave output, the resolution can be double frequency output
Maximum 80000 pulses, can be equipped with special accessories and FINH58 (FINS58) combination
Suitable for paper making equipment, steel industry and other industrial fields

Attachments:
FINS58 Data Sheet

Electrical Specifications
Supply Voltage	5VDC, 10-30VDC
Current Consumption	60mA (P-P), 140mA (RS422)
Output Circuit	PUSH-PULL output, RS422
Resolution	Square Wave: 10000PPR (Max. ) Sine Wave: 6000PPR Adjustable: 50-6000PPR
Output Frequency	300kHz
Permissible Load/Channel	Max. 30mA
Rise Time	200ns
Level signal	H:>70%VCC L:<1V
Electrical Protection	Short Circuit, reverse polarity and lightning Protection

Mechanical Specifications
Maximum speed	15000rpm
Shaft load	Axial 50N Radial 100N
Starting Torque	<0.05Nm
Shock Resistance	EN 60068-2-27 1000m/s² 6ms
Vibration Resistance	EN 60068-2-6 100m/s² 55…2000HZ
Operating Temperature	-25°C to +85°C
Protection Class	IP65/IP67 (option)
Material	Aluminum (shell) , stainless steel (shaft)
Weight	260g

Ordering Code
Example: FINS5806A593R-1024 58 high performance solid shaft encoder 1024 pulse push-pull output with ABZ inverse signal, axle diameter 6mm, radial straight out cable
FINS58	shaft	output	signals	connection	resolution
	06=6x10mm 08=8x12mm 10=10x20mm 12=12x25mm XX=custom-made	A2=5V RS422 (TTL) A5=10-30V push-pull A8=10-30V RS422 (HTL) sine S1=sine wave output 1V PP frequency doubling D2=5V RS422 (TTL) D5=10-30V push-pull D8=10-30V RS422 (HTL)	8=ABZ 9=ABZĀB̄Z̄	3R=radial output 6R=connector radial output (cw) 8R=connector radial output (ccw)	standard Max. 80000 frequency doubling: basic resolution Max. 6000 sine: Max. 2500
