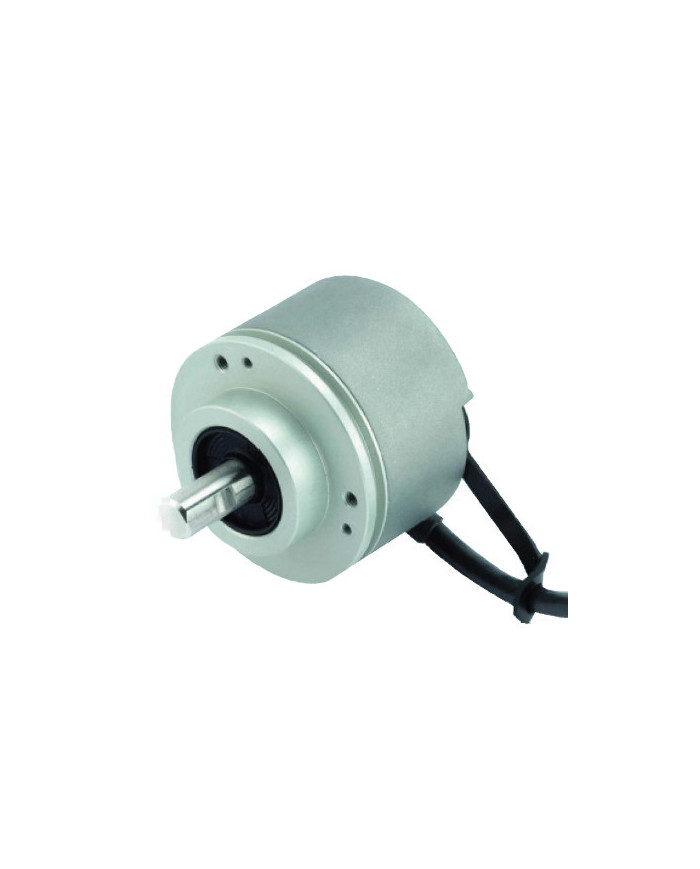

MINS58 Programmable Solid Shaft Encoder
Ask for price
- Resolution, output, direction and so on can be freely programmed by supporting software

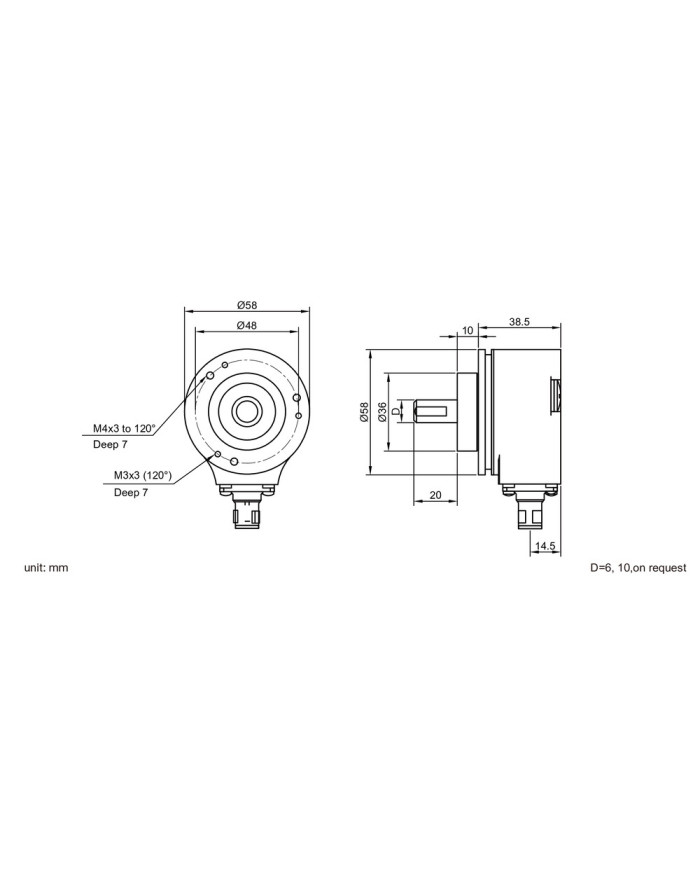

- Standard ⌀58mm OD, easy to install
- Max programmable to 65536 pulses
- Suitable for pipeline monitoring, servo system and other applications
Description
Product Details
| Electrical Specifications | |
|---|---|
| Supply Voltage | 5VDC, 10-30VDC |
| Current Consumption | 60mA (P-P) |
| Output Circuit | PUSH-PULL output, RS422 |
| Resolution |
65536 PPR (Max.),
Software Modification |
| Output Frequency | 900kHz |
| Permissable Load/Channel | Max. 30mA |
| Rise Time | 200ns |
| Level signal | H:>70%VCC L:<1V |
| Electrical Protection |
Short Circuit, reverse polarity
and lightning Protection |
| Mechanical Specifications | |
|---|---|
| Maximum speed | 6000rpm |
| Shaft load | Axial 40N Radial 80N |
| Starting Torque | <0.02Nm |
| Shock Resistance | EN 60068-2-27 1000m/s² 6ms |
| Vibration Resistance | EN 60068-2-6 100m/s² 55…2000HZ |
| Operating Temperature | -20°C to +85°C |
| Protection Class | IP65 |
| Material |
Aluminum (shell),
stainless steel (shaft) |
| Weight | 300g |
| Connection | 3R | 8R |
|---|---|---|
| GND | white | 1 |
| VCC | brown | 2 |
| A | green | 3 |
| B | yellow | 4 |
| ZÌ„ | grey | 5 |
| AÌ„ | pink | 6 |
| BÌ„ | blue | 7 |
| ZÌ„ | red | 8 |
| Ordering Code | |||||
|---|---|---|---|---|---|
|
Example: PINS5806A593R-1024
58 programmable solid shaft encoder 1024 pulse push-pull output with ABZ inverse signal, axle diameter 6mm, radial straight out cable |
|||||
| PINS58 | shaft | output | signals | connection | resolution |
|
06=6x10mm
10=10x20mm XX=custom-made |
A5=5-30V
push-pull |
8=ABZ
9=ABZAÌ„BÌ„ZÌ„ |
3R=radial output
8R=connector radial output (ccw) |
1-65536
(Customer setup) |
|
