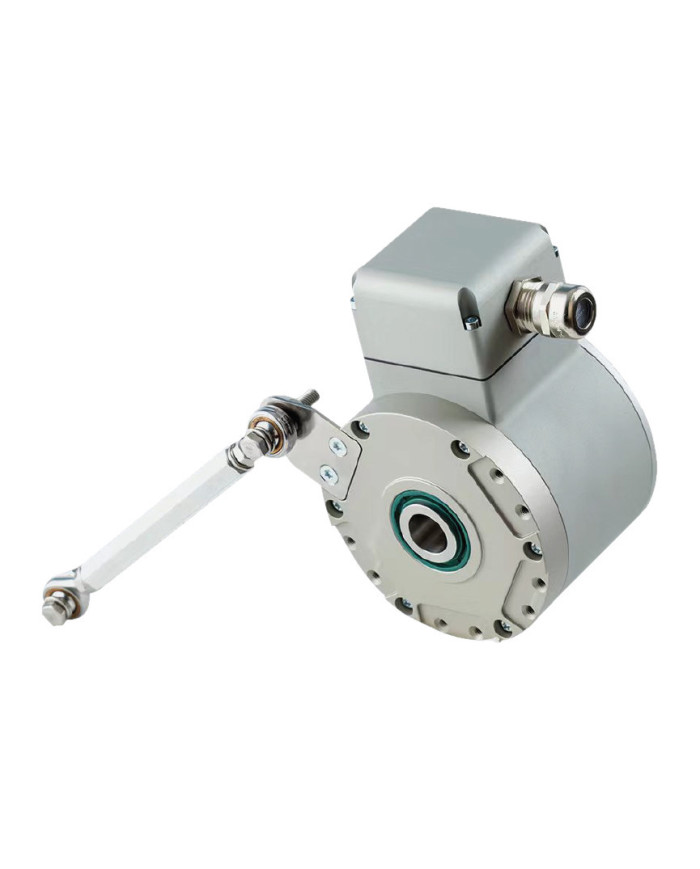

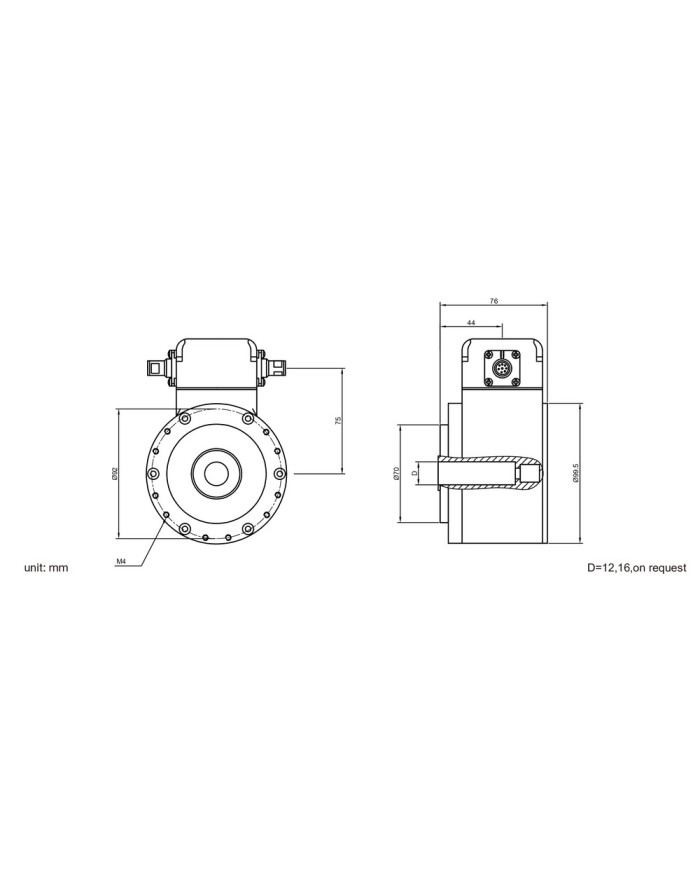

MINH100 Dual-output Hollow Shaft Encoder
Ask for price
- Double output type, no response time difference
- Heavy-duty encoder
- Max. 5000 pulses
- Suitable for large machinery monitoring and other applications
Description
Product Details
| Electrical Specifications | |
|---|---|
| Supply Voltage | 5VDC, 10-30VDC |
| Current Consumption | 60mA (P-P), 140mA (RS422) |
| Output Circuit | PUSH-PULL output, RS422 |
| Resolution | 5000PPR (Max.) |
| Output Frequency | 200kHz |
| Permissible Load/Channel | Max. 30mA |
| Rise Time | 200ns |
| Level signal | H:>70%VCC L:<1V |
| Electrical Protection |
Short Circuit, reverse polarity
and lightning Protection |
| Mechanical Specifications | |
|---|---|
| Maximum speed | 6000rpm |
| Shaft load | Axial 400N Radial 500N |
| Starting Torque | <0.06Nm |
| Shock Resistance | EN 60068-2-27 2500m/s² 6ms |
| Vibration Resistance | EN 60068-2-6 300m/s² 55…2000HZ |
| Operating Temperature | -20°C to +85°C |
| Protection Class | IP66 |
| Material | Aluminum |
| Weight | 1700g |
| Connection | BR |
|---|---|
| GND | 1 |
| VCC | 2 |
| A | 3 |
| B | 4 |
| Z | 5 |
| AÌ„ | 6 |
| BÌ„ | 7 |
| ZÌ„ | 8 |
| Ordering Code | |||||
|---|---|---|---|---|---|
|
Example: MINH10012A593R-1024D
100 dual-output hollow shaft encoder 1024 pulse push-pull output with ABZ inverse signal, aperture 12mm, radial straight out cable |
|||||
| MINH100 | shaft | output | signals | connection | resolution |
|
12=12mm
16=16mm XX=custom-made |
A2=5V RS422
(TTL) A5=10-30V A8=10-30V RS422 (HTL) |
8=ABZ
9=ABZAÌ„BÌ„ZÌ„ |
BR=terminal |
single channel:
1024/2048 2500/4096 5000 double channel: 1024D.2048D 50-6000 customizable |
|
