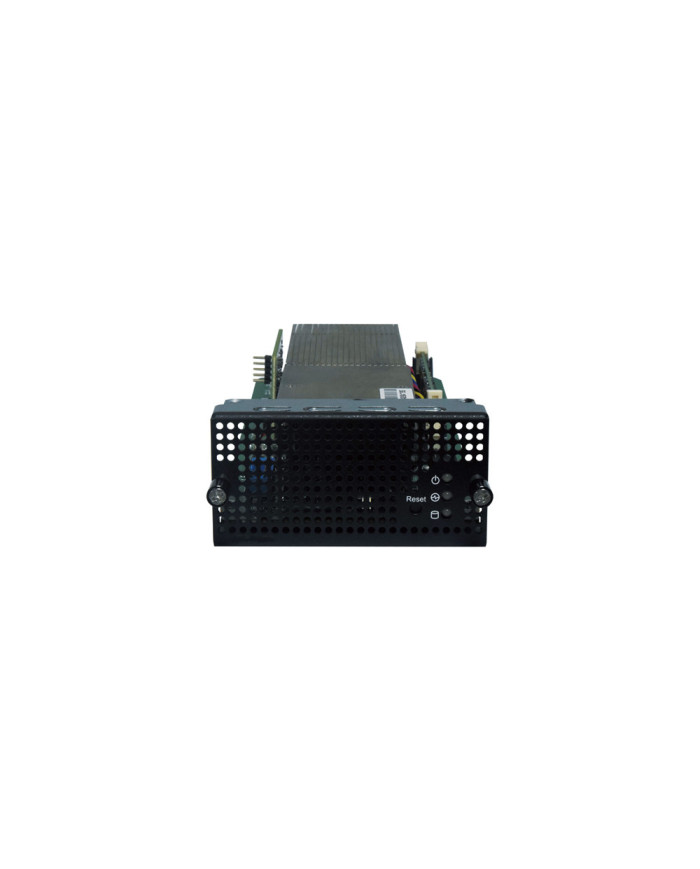

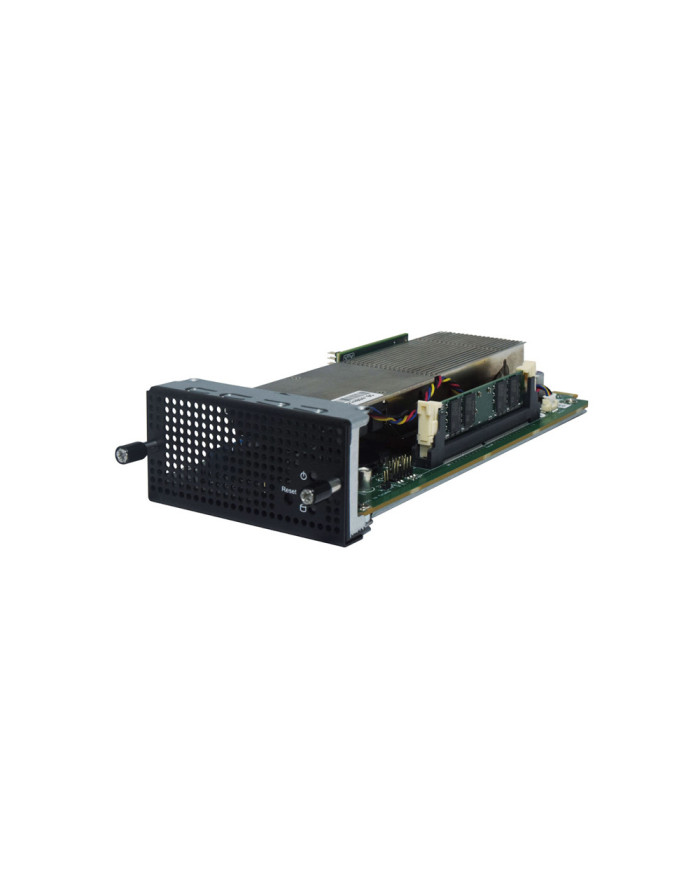

NCS2-VT04 video transcoding module
Ask for price
Video transcoding NIC module powered by Intel i7-1185G7E or Celeron 6305E CPU (codenamed Tiger Lake U)
- Intel Tiger Lake U (i7/Celeron)
- Max. 32 GB DDR4 UDIMM
- Power/LAN/status LED
Description
Product Details
The video transcoding NIC module NCS2-VT04’s support for 10bit HEVC encoding enables de-interlacing, image scaling, frame rate conversion and graphical acceleration for transcoding efficiency that makes available high quality and bandwidth-hungry video content.
Specifications
PCB
| VT04A/VT04D |
Chipset
| Intel Tiger Lake U (i7/Celeron) |
Interface
| PCIe Gen3*8 |
Connector
| PCIe*8 Golden Finger |
System Compatibility
| Lanner x86 Appliances |
Temperature
| Operating | 0 ~ 40ºC |
| Storage | -40 ~ 70ºC |
Humidity
| 5% ~ 90% RH, non-condensing |
Mechanical
| Dimension (W x D x H) | 77 mm x 185.2 mm x 39 mm |
| Weight | 1 kg |
Certification
| CE | Class A |
| FCC | Class A |
| UL | Yes |
| RoHS | Yes |
