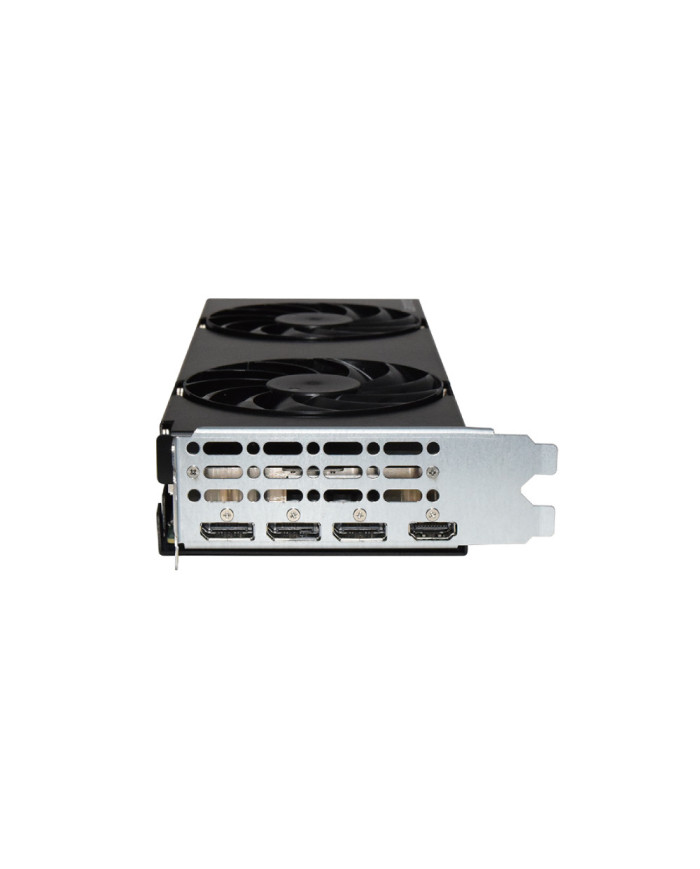

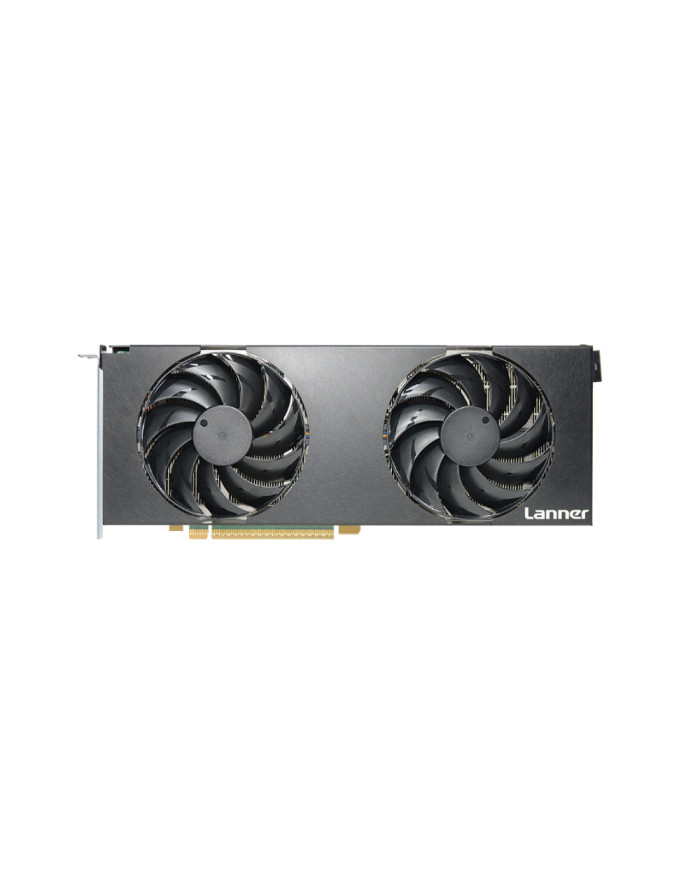

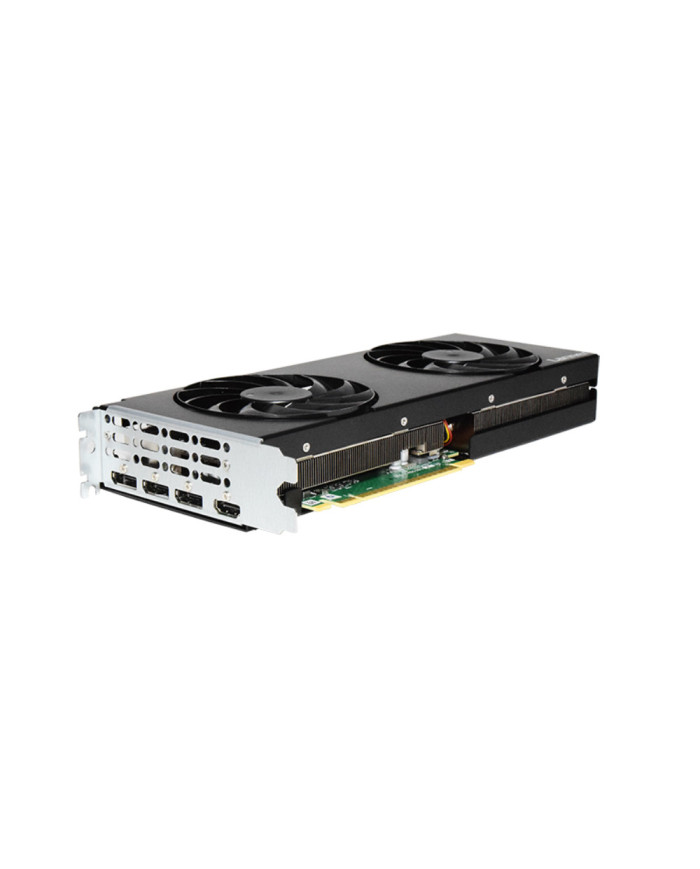

AV-DG301 AI accelerator
Ask for price
Intel Arc Pro B60 dual-slot GPU card for AI-accelerated workloads
- GPU accelerator powered by Intel Arc Pro B60
- PCIe Gen 5 FHFL interface
- Max.197 GPU TOPS, 2.4 GHz graphic clock
- Built-in 24 GB GDDR6 Memory
- 200 W total board power
- Support Intel’s Xe Matrix eXtensions (XMX AI Engines)
- 3x DP 2.1 (by SKU), 1x HDMI 2.1
Description
Product Details
Lanner AV-DG301 is a dual-slot GPU solution powered by the Intel Arc Pro B60, designed for AI-accelerated workloads. It supports 24 GB of dedicated memory and connects through PCIe 5.0 x16 for high-speed performance. Featuring multi-GPU LLM support and 160 XMX AI engines, the AV-DG301 delivers advanced capabilities for agentic AI, video transcoding, AI-powered security and other edge AI applications.
Specifications
Platform
| GPU Chip | Intel Arc Pro B60 |
| Xe Cores | 20 |
| Ray Tracing Units | 20 |
| Intel Xe Matrix Extensions (Intel XMX) AI Engines | 160 |
| Memory Size and Type | 24 GB GDDR6 |
| Memory Interface | 192-bit |
| Memory Bandwidth | 456 GB/s |
| Graphics Clock | 2400 Mhz |
| GPU Peak Tops (Int8) | Up to 199 |
| Total Board Power | 200 W |
| PCIe | PCIe Gen 5 x16 FHFL |
Cooling
| Processor | Active/passive cooling |
| System |
SKU A: Axial fan SKU B: Blower fan SKU C: Passive cooling |
Environmental Parameters
| Temperature |
0ºC ~ 40ºC operating 0ºC ~ 40ºC ambient storage |
| Humidity (RH) |
5% ~ 90% operating 5% ~ 95% non-operating |
System Dimensions
| Dimension (H x W) | 272 x 115 mm |
Package Dimensions
| Dimensions (W x D x H) | 450 x 324 x 195 mm |
OS
| Operating system | Windows 10, Windows 11, Linux |
Certification
| EMC | CE, FCC Class A |
