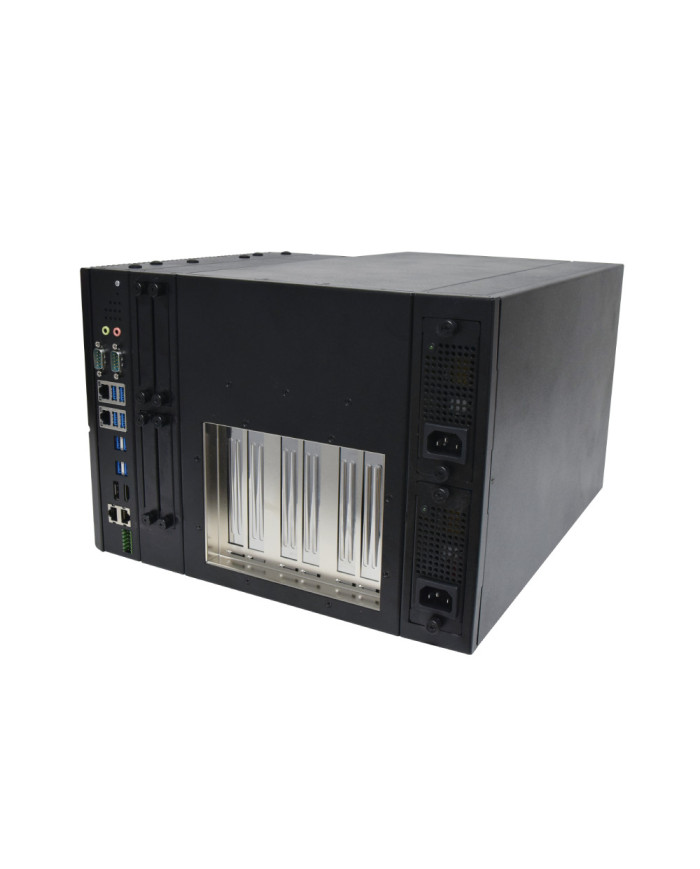

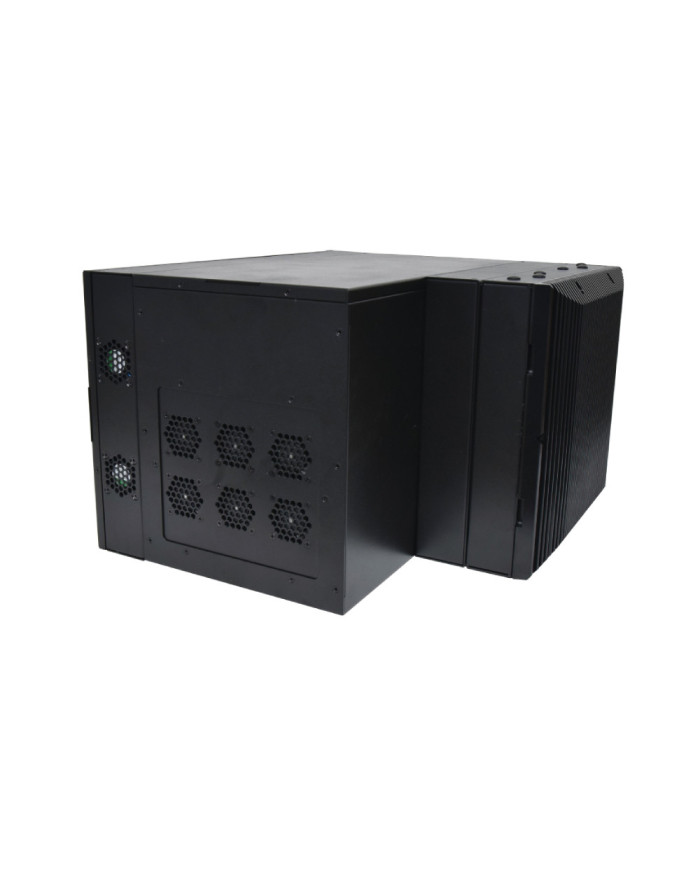

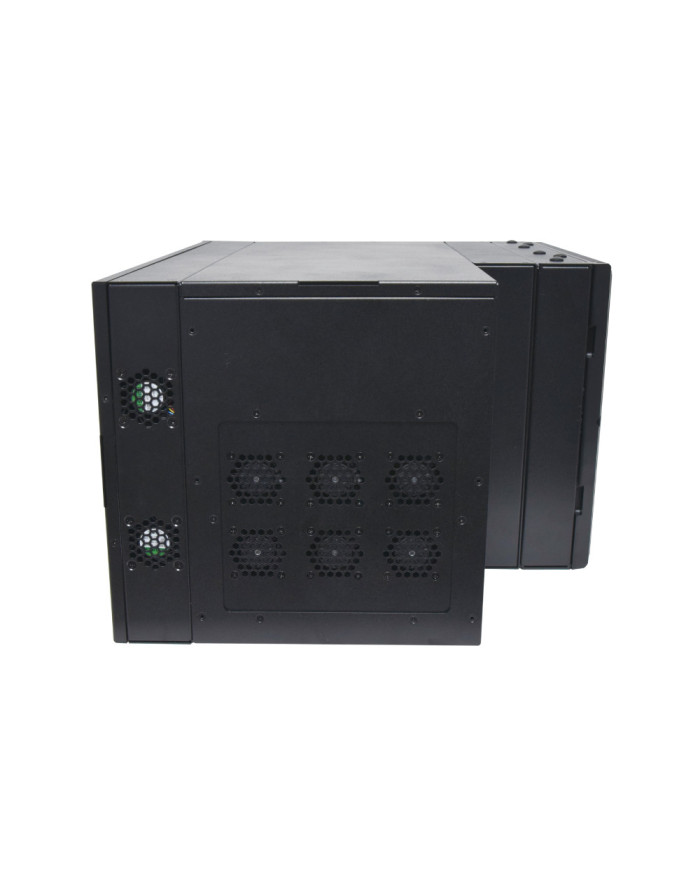

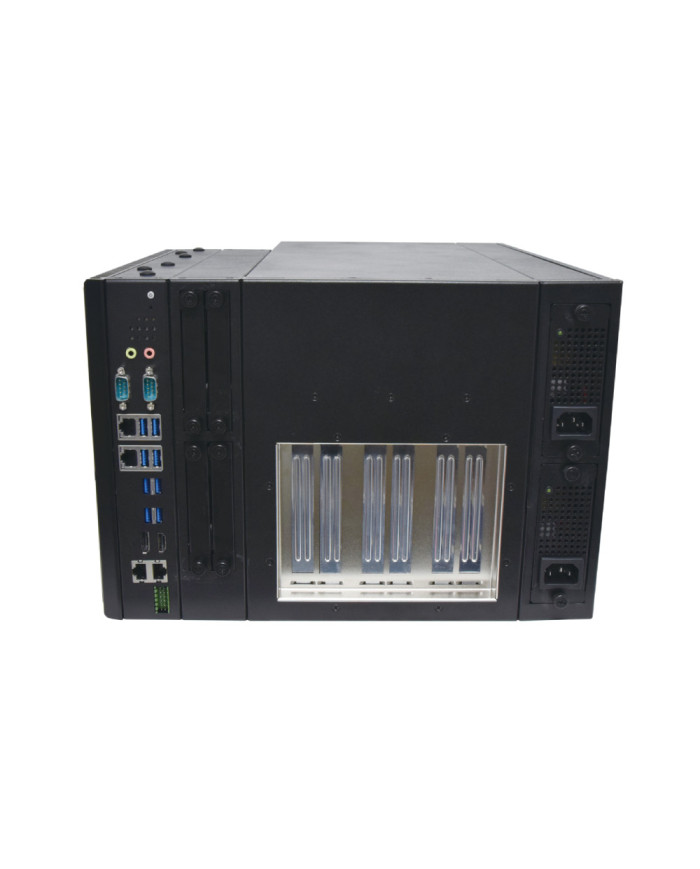

EAI-I730 industrial high performance AI platform
Ask for price
Industrial Grade High Performance AI Platform With 12th/13th/14th Gen. Intel Core i9/i7/i5/i3 Processors
- 12th/13th/14th Gen. Intel Core i9/i7/i5/i3 Processors
- 5600 MHz DDR5 SODIMM Up to 96 GB, 4x 2.5” Removable HDD/SSD
- 2x 2.5 GbE RJ45, 1x RJ45 Console, 1x RJ45 LOM (By SKU)
- 2x RS232/422/485 COM, 8x USB 3.2, 1x HDMI,1x DP, 4x DI & DO
- 1x M.2 (NVMe) 2280 M-Key, 2x SATA M.2 2242 M-Key
- 2x PCIe*16, 2x PCIe*4, 1x M.2 2230 E-Key for WiFi 6/6E (BT), M.2 3042/3052 B-Key for LTE/5G
- -25ºC ~ 65ºC Operating Temperatures
Description
Product Details
The EAI-I730, a standard Lanner product, is built around the 13th Gen. Intel Core i9/i7 Processors platform and is optimized to serve as a high-performance AI platform for control systems in industrial workstations. Its impressive array of features includes 2x DDR4 ECC SO-DIMM slots, 1x HDMI and 1x DP for display connectivity, 2x 2.5 GbE LAN ports for high-speed networking, 2x mSATA slots, and 1x PCIe 4X slot for expandability. Furthermore, it boasts 4x removable 2.5” SATA drive bays with support for RAID 0, 1, 5, and 10 configurations, as well as 1x M.2 slot for LTE and 5G connectivity, 1x M.2 slot for WiFi, 2x DB9 ports for RS-232/422/485, and 8x USB 3.2 ports for versatile peripheral connections.
Use Case
- Enabling edge AI inferencing and training for factory machine vision
- AI-powered robotic automated optical inspection solution with built-in AI vision system
Specifications
Processor System
| CPU | 12th/13th/14th Gen. Intel Core i9/i7/i5/i3 Processors |
| Chipset | Intel R680E |
Memory
| Technology | 5600Mhz DDR5 ECC / Non-ECC |
| Capacity | Up to 96 GB |
Ethernet
| Speed | 100 Mbps/1 GbE/2.5 GbE |
| Interface | 1x Console (By SKU B) 2x 2.5 GbE RJ45 1x RJ45 LOM (By SKU) |
Storage
| Type | SATA III |
| Installation | 4x 2.5” SSD Removable HDD/SSD 1x M.2(NVMe) 2242/2280 M-Key 2x SATA M.2 2242 M-Key |
I/O
| COM | 2x DB9 RS232/422/485 |
| Audio | Mic-in, Line-out |
| USB | 8x USB 3.2 (Gen1 Type A) |
| Display | 1x HDMI 2.0, 1x DP 1.4 |
| DIO | 4x DI & 4x DO |
Button
| Reset | 1x Reset Button |
| Power | 1x Power Button |
Expansion Interface
| M.2 | 1x M.2 2230 E-Key for WiFi 6/6E (BT) 1x M.2 3042/3052 B-Key for LTE/5G |
| PCIe | 2x PCIe*4, 2x PCIe*16 (support FH/HL) |
Cooling
| Processor | Passive CPU Heatsink |
| System | 6x Smart Fan for PCIe expansion |
Power
| Input | 100 ~ 240 VAC |
| Output | 12 V, 41.6 A |
Environment
| Operating Temperature | -25 ~ 65ºC Operating with 35 W CPU and without PCIe expansion card -25~45ºC Operating with 65 W CPU and without PCIe expansion card |
| Storage Temperature | -40ºC ~ 85ºC |
| Relative Humidity | 5% ~ 95% non-condensing |
Mechanical
| Dimension (W x D x H) | 374 x 419 x 250 mm |
| Weight | 20 Kg |
| Mounting | Mount |
Driver Support
| Microsoft Windows | Win 10 |
| Linux | Kernel 5.x, Ubuntu |
Certification
| EMC | CE/FCC Class A, UKCA, UL, CB, RoHS |
