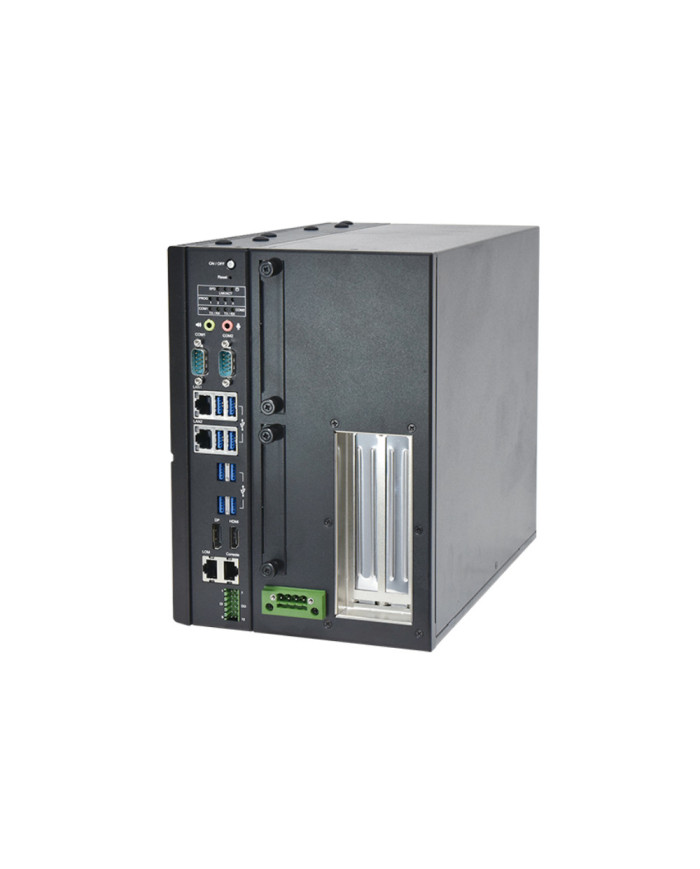

EAI-I731 compact AI platform
Ask for price
Compact AI Platform with 12th/13th/14th Gen. Intel Core i9/i7/i5/i3 Processors for Industrial Applications
- 12th/13th/14th Gen. Intel Core i9/i7/i5/i3 Processors
- DDR5 SODIMM Up to 96GB
- 2x 2.5” Removable HDD/SSD, 2x M.2(SATA) 2242 B-Key, 1x M.2(NVMe) 2280 M-Key
- 2x 2.5 GbE RJ45, 1x RJ45 Console, 1x RJ45 LOM (By SKU)
- 2x COM, 8x USB 3.2, 1x HDMI, 1x DP, 4x DI & DO
- 1x PCIe*16, 1x PCIe*4, 1x Nano-SIM & eSIM

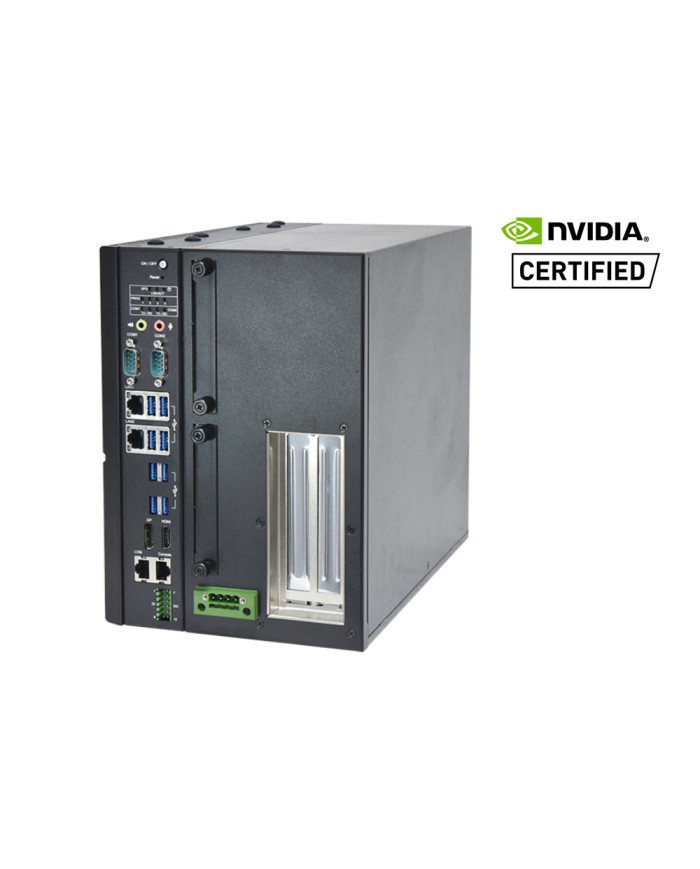

- A NVIDIA-Certified System for industrial edge
Description
Product Details
The EAI-I731, a standard product from Lanner, harnesses the power of the 14th Gen. Intel i9/i7/i5/i3 Processor platform, offering optimized performance for industrial workstations’ control systems. Packed with features, it includes DDR5 ECC SO-DIMM slots supporting up to 96GB of memory, along with connectivity options like 1x HDMI and 1x DP 1.4 for displays, 2x 2.5 GbE LAN ports for fast networking, and 1x PCIe x16 slot and 1x PCIe x4 slot for expansion. Additionally, it features 2x removable 2.5” SATA drive bays, 1x M.2 slot for LTE and 5G connectivity, 1x M.2 slot for WiFi, 2x RS-232 by DB9 Male ports, and 8x USB 3.2 ports for versatile peripheral connections.
Use Case
- Implementing AI-enhanced automated optical inspection on the printed circuit board assembly (PCBA) line to reduce false positive detection rates
- AI-powered computer vision for workplace safety in manufacturing
- AI-powered drug inventory management
- Enabling AI-powered high-precision 3D X-ray scanning
Specifications
Platform
| CPU | 12th/13th/14th Gen. Intel Core i9/i7/i5/i3 |
| Chipset | Intel R680E |
| BIOS | AMI SPI Flash BIOS |
System Memory
| Technology | 5600 Mhz DDR5 ECC / Non-ECC |
| Max. Capacity | Up to 96 GB |
Ethernet
| Interface | 2x 2.5 GbE RJ45 1x RJ45 LOM (By SKU) |
| Speed | 100 Mbps/1 GbE/2.5 GbE |
Storage
| Type | SATA III |
| Installation | 2 x 2.5” Removable HDD/SSD |
| Onboard Slot | 2x M.2(SATA) 2242 B-Key 1x M.2(NVMe) 2280 M-Key |
I/O Interface
| Reset Button | 1 |
| Power Button | 1 |
| Serial | 1x RJ45 Console, 1x RJ45 LOM (By SKU) |
| COM | 2x DB9 RS232/422/485 |
| Display | 1x HDMI, 1x DP 1.4 |
| USB | 8x USB 3.2 Gen1 Type A |
| DIO | 4x DI (support PNP/NPN/dry contact) 4x DO (support dry/sink) |
| Audio | Mic-in, Line-out |
Expansion
| mini-PCIe/M.2 | 1x M.2 2230 E-Key for WiFi 6/6E (BT) 1x M.2 3042/3052 B-Key for LTE/5G |
| PCIe Slot | 1x PCIe*16 Gen4 1x PCIe*4 Gen3 |
| SIM Card Slot | Nano-SIM x1 (each for LTE/5G module) 1x eSIM |
Power
| Type/Watts | 300 W |
| Input | 12/24 VDC |
Cooling
| Processor | Passive CPU Heatsink |
| System | 6x Smart Fan for PCIe expansion |
Environmental Parameters
| Temperature | -25 ~ 65ºC Operating with 35W CPU and without PCIe expansion card -25~45ºC Operating with 65W CPU and without PCIe expansion card -40~85ºC Ambient storage |
| Relative Humidity | 5 ~ 90% Operating 5~ 95% Non-Operating |
Miscellaneous
| Watchdog | Yes |
| Internal RTC with Li battery | Yes |
| TPM | Onboard TPM 2.0 |
System Dimensions
| W x D x H | 190 x 286 x 250 mm |
| Weight | 8 kg |
| Mounting | Wall mount |
OS
| Linux | Debian 11 pre-installed, Ubuntu 20.04 |
| Windows | Win 10 IoT |
Certification
| EMC | CE/FCC Class A, UKCA, UL, CB, RoHS |
