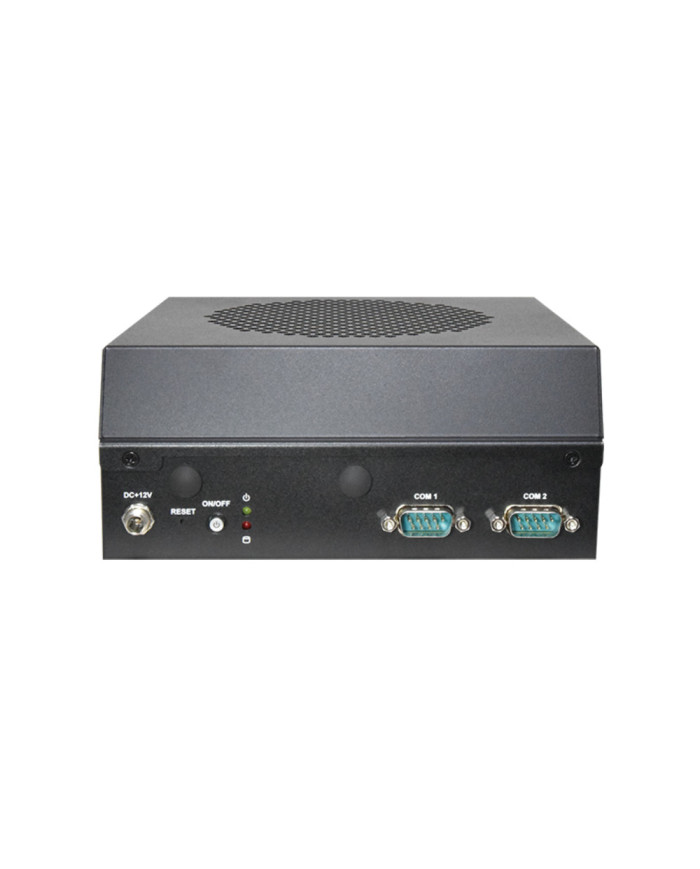

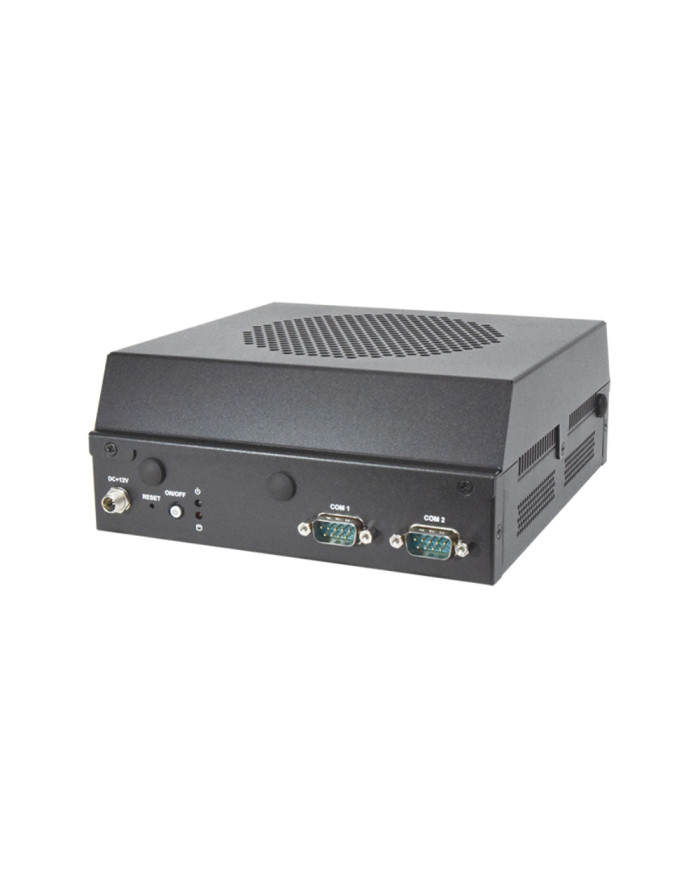

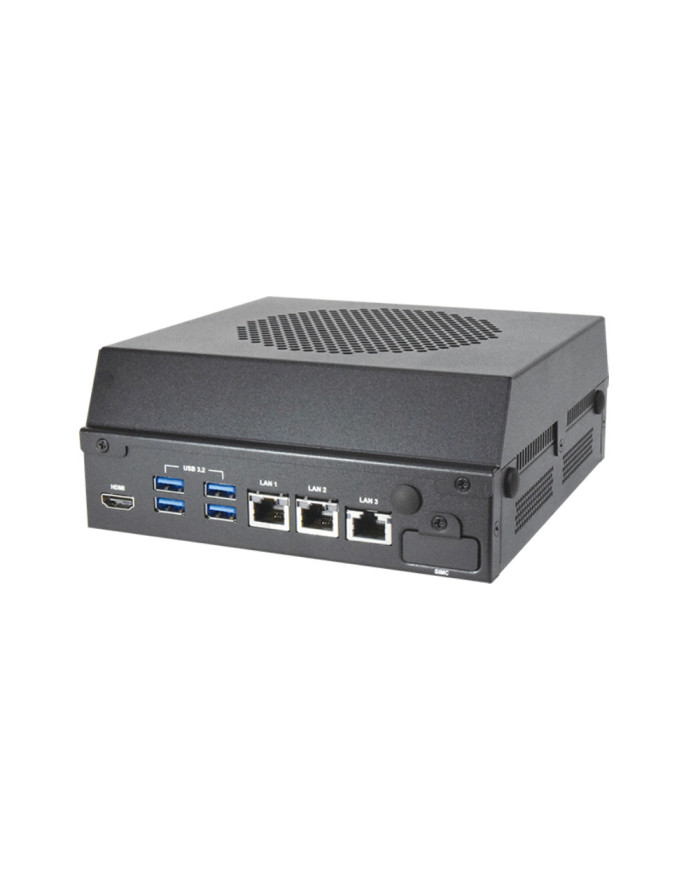

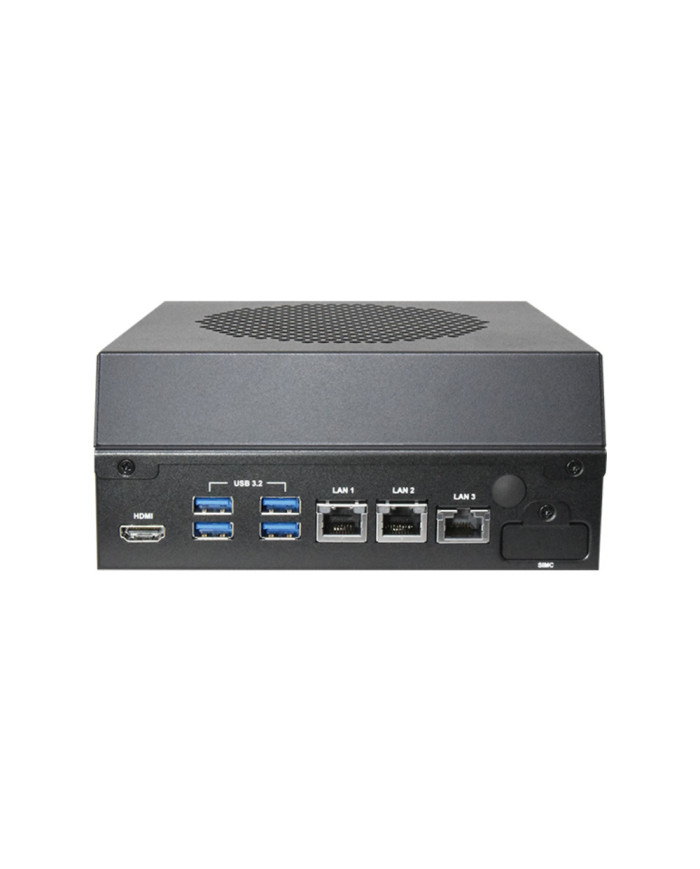

EAI-I233 AI inference system
Ask for price
AI Inference System With NVIDIA Jetson AGX Orin processors
- NVIDIA Jetson AGX Orin Processors
- Up to 275 TOPS AI performance
- LPDDR5 DRAM 64/32 GB memory (by SKU)
- 1x GbE RJ45, 1x 10 GbE RJ45, 1x 2.5 GbE RJ45
- 2x COM, 4x USB3.2, 1x HDMI
- 1x M.2 2230 E-Key for WiFi, 1x M.2 3042/3052 B-Key for LTE/5G, 1x Nano-SIM
Description
Product Details
Lanner’s EAI-I233, powered by NVIDIA Jetson AGX Orin with up to 64 GB LPDDR5 memory, and delivers 275 TOPS AI performance for real-time computer vision. With 10G LAN, USB, COM, WiFi, and 5G, it enables seamless AI deployment across retail, enterprise, and manufacturing.
Specifications
Platform
| CPU | NVIDIA Jetson AGX Orin |
| SOM TDP | up to 30 W |
System Memory
| Technology | LPDDR5 DRAM with ECC |
| Max. Capacity | 64/32 GB (by SKU) |
Ethernet
| Interface | 1x GbE RJ45 1x 10 GbE RJ45 1x 2.5 GbE RJ45 |
| Speed | 10/100/1000 Mbps 10/100/10000 Mbps 10/100/1000/2500 Mbps |
| Bypass | N/A |
I/O Interface
| Reset Button | 1 |
| Serial | 2x DB9 RS-232 (TX/RX/CTS/RTS) |
| Display | 1x HDMI |
| USB | 4x USB 3.2 Type A |
| Antenna | 4x Antenna for LTE/5G Sub6 2x Antenna for WiFi |
Storage
| eMMC | eMMC 5.1 64GB on SOM |
| Onboard Slots | 1x M.2(NVMe) 2280 M-Key (default 128G) |
Expansion
| mini-PCIe/M.2 | 1x M.2 2230 E-Key for WiFi 1x M.2 3042/3052 B-Key for LTE/5G |
| Card Slot | 1x Nano-SIM |
Miscellaneous
| Watchdog | Yes |
| Internal RTC with Li battery | Yes |
| TPM | Onboard TPM 2.0 |
Cooling
| Processor | Passive Heatsink |
| System | 1x 12V Fan 120x120x25 mm, 2200 RPM (12025 FAN) |
Environmental Parameters
| Temperature | 0ºC ~ 40ºC |
| Humidity (RH) | 5 ~ 90% Operating 5~95% Non-Operating |
System Dimensions
| Dimensions (W x D x H) | 169.2 x 181.7 x 70 mm |
| Mounting | Wall mount, Embedded system |
Power
| Type / Watts | 60 W Adapter |
| Input | 1x Power Jack/12 V |
Driver Support
| Linux | SDK: Linux (NVIDIA Jetpack 6.0) Ubuntu 22.04.05 LTS |
Certification
| EMC | CE, FCC Class A |
| Safe | UL+CB |
