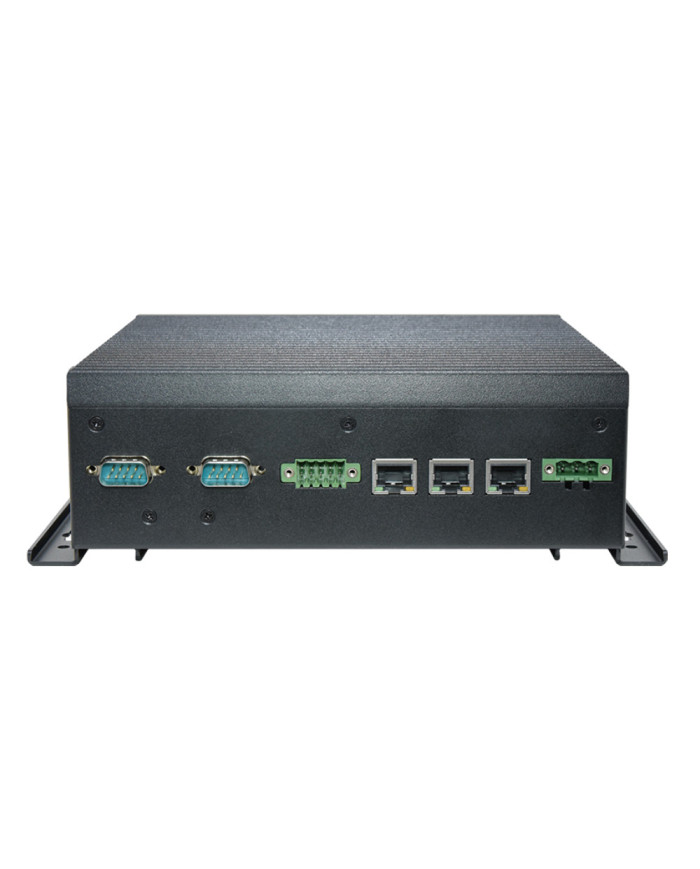

EAI-V151 in-vehicle AI inference system
Ask for price
In-Vehicle Computing AI Inference System With NVIDIA Jetson Orin NX/Nano processors
- NVIDIA Jetson Orin NX/Nano Processors
- LPDDR5 Memory Up to 16/8/4 GB
- 1x GbE RJ45, 2x GbE RJ45 with PoE+
- 2x COM(optional 1x CAN), 2x USB 3.2, 1x HDMI, 4x GMSL2 Video-in
- GPS & G-sensor
- 1x M.2 2230 E-Key for WiFi, 1x M.2 3042/3052 B-Key for LTE/5G, 2x Nano-SIM for LTE/5G module
- Wide range of operating temperature -40 ~ 70ºC
Description
Product Details
The Lanner EAI-V151 is a compact and robust Edge AI platform powered by NVIDIA Jetson Orin NX/Nano processors, designed for industrial applications requiring advanced AI capabilities. It supports up to 16 GB LPDDR5 memory and offers extensive connectivity options, including 1x GbE RJ45, 2x GbE RJ45 with PoE+, 2x USB 3.2, 1x HDMI, 2x COM (optional 1x CAN), and 4x video-in, along with built-in GPS and G-sensor. For wireless expansion, it features M.2 slots for WiFi and LTE/5G, dual Nano-SIM slots, and a wide operating temperature range of -40 ~ 70ºC for reliable performance in harsh environments.
Specifications
Platform
| CPU | NVIDIA Jetson Orin NX/Nano 8/6-core NVIDIA Arm Cortex A78 |
| SOM TDP | up to 25 W |
| GPU | up to 1024 CUDA Core up to 48 Tensor Cores |
System Memory
| Technology | LPDDR5 |
| Max. Capacity | 16/8/4 GB (By SKU) |
Ethernet
| Interface | 1x GbE RJ45 2x GbE RJ45 w/ PoE+ (total 30 W) with Intel I210IT |
| Speed | 10/100/1000 Mbps |
| Bypass | N/A |
I/O Interface
| Reset Button | 1 |
| Serial | 2x DB9 RS232/422/485 (optional 1x CAN) |
| Display | 1x HDMI |
| USB | 2x USB 3.2 Gen1 Type A |
| DIO | 4x DI, 2x DO |
| GPS/G-sensor | Onboard u-blox NEO-M9V (UDR) / ADXL345 |
| Audio | 1x Line-in, 1x Line-out |
| Video-in | 4x GMSL2 De-serializer |
| Antenna | 4x Antenna for LTE/5G Sub6 2x Antenna for WiFi 1x Antenna for GPS |
Storage
| Onboard Slots | 1x M.2(NVMe) 2280 M-Key |
Expansion
| mini-PCIe/M.2 | 1x M.2 2230 E-Key for WiFi 1x M.2 3042/3052 B-Key for LTE/5G |
| SIM Card Slot | 2x Nano-SIM for LTE/5G module |
Miscellaneous
| Watchdog | N/A |
| Internal RTC with Li battery | Yes |
| TPM | Onboard TPM 2.0 |
Cooling
| Processor | Passive CPU Heatsink |
| System | Fanless |
Environmental Parameters
| Temperature | -40ºC ~ 70ºC |
| Humidity (RH) | 5 ~ 90% Operating 5~95% Non-Operating |
System Dimensions
| Dimensions (W x D x H) | 201 x 196 x 65 mm |
| Mounting | Wall mount / VESA mount |
Power
| Type / Watts | Single, 12 / 24 VDC |
| Input | DC +12 V / 24 V input 1x 3 terminal block connector |
Driver Support
| Linux | Linux (NVIDIA Jetpack 6.0.0) Ubuntu 22.0.4 LTS |
Certification
| EMC | CE/UKCA, FCC Class A, RoHS, E-Mark (E24) |
| Safe | MIL-STD-810H (wall mount) |
