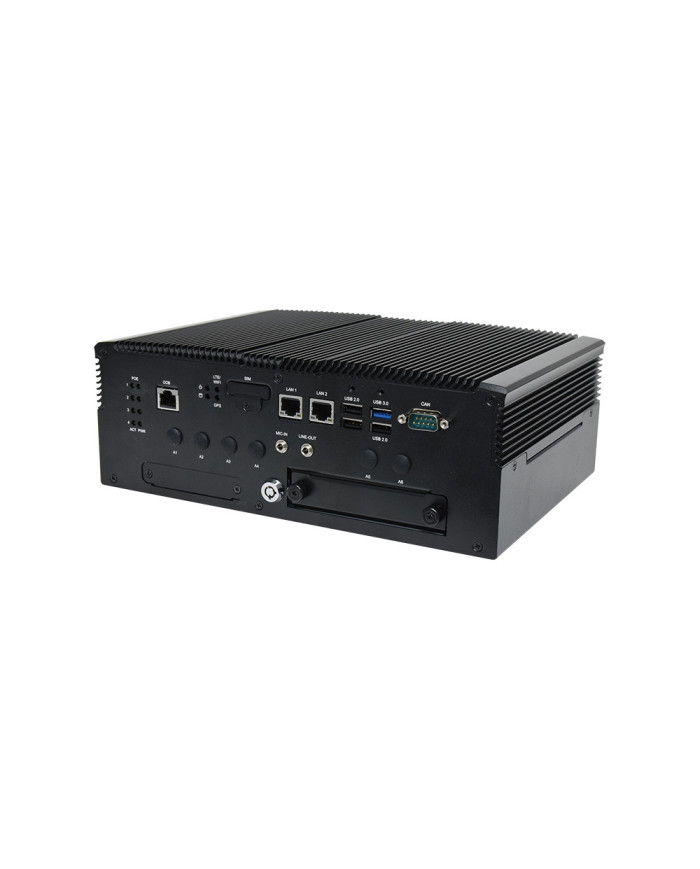

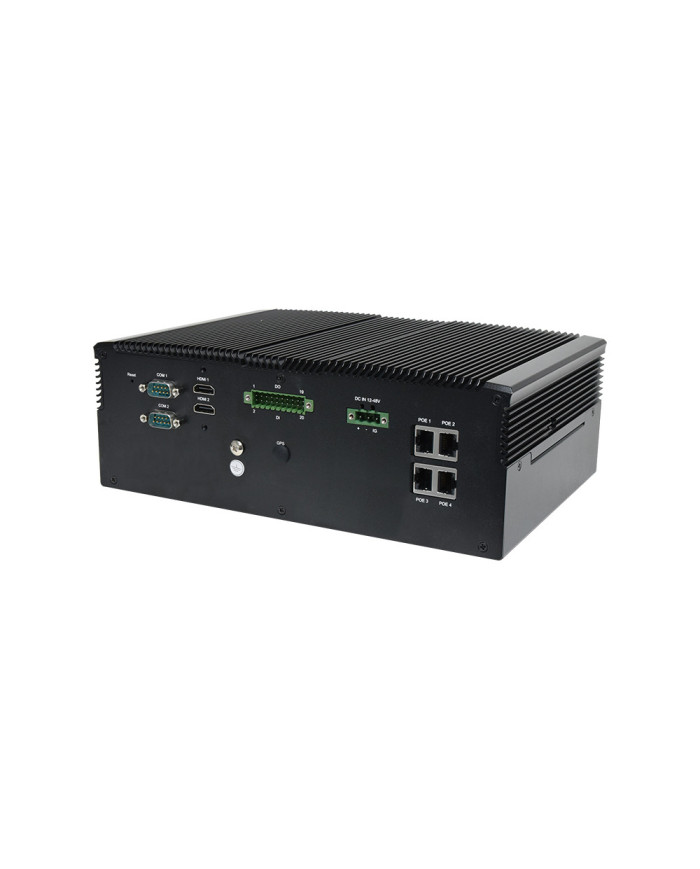

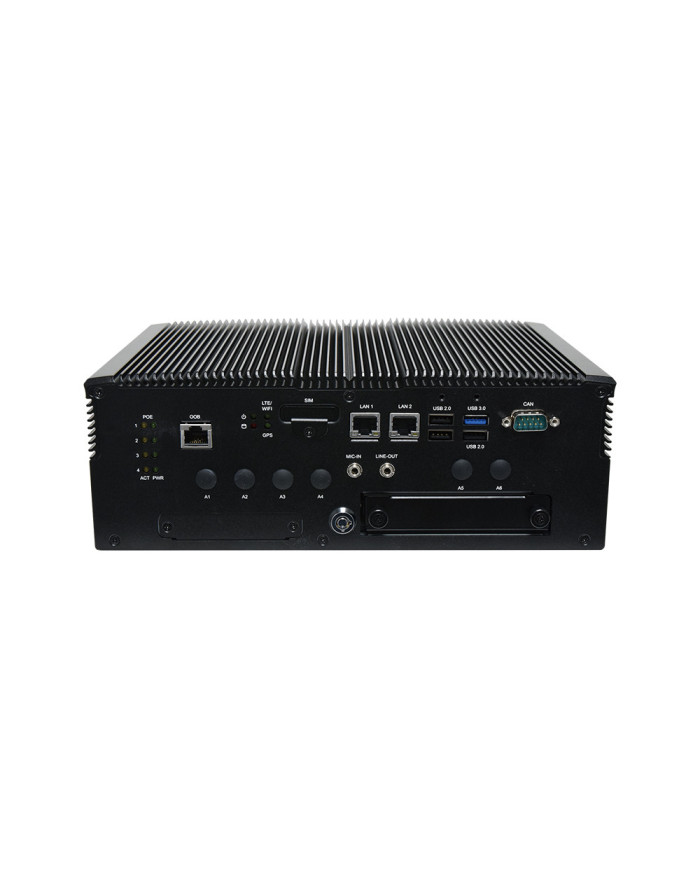

EAI-V330 in-vehicle AI inference system
Ask for price
Fanless In-vehicle AI Inference System with Intel Elkhart Lake Processor
- Intel Atom X6000 Series Processor (codename: Elkhart Lake-I)
- 1x SODIMM DDR4, Up to 32 GB
- eMMC 128 GB, 1x SATA
- 1x PGN Series Removable Caddy, 1x M.2 304(5)2 B Key socket (USB 3.0/PCIe x1) for 4G LTE/5G sub6, 1x M.2 2230 E key socket for Wi-Fi
- 7x RJ45 ports (2x GbE LAN w/ I210IT, 4x PoE+ w/ 1x i210IS, 1x OOB (by SKU)
- 3x USB 2.0, 1x USB 3.0, 2x HDMI, 1x TPM 2.0
Description
Product Details
The EAI-V330 series is engineered as a cost-effective embedded system, incorporating the Intel Elkhart Lake Extended Temp CPU. This configuration delivers high-quality performance while maintaining low power consumption, making it ideal for in-vehicle computing applications. Additionally, this product boasts AI acceleration capabilities, with support for features such as the HAILO-8 M.2 2242 M key socket. It is versatile enough to be employed in various applications, including general control system monitoring and physical security systems, among others.
Specifications
Processor System
| CPU | Intel Atom x6425E/x6413E/x6211E Processors, 12 W/9 W/6 W (codename: Elkhart Lake-I) |
| Frequency | 2.0 GHz/1.5 GHz/1.3 GHz |
| Core Number | Quad-core |
| BIOS | AMI SPI Flash BIOS |
| Chipset | SoC |
| Processor Graphics | Intel UHD Graphics |
Fanless
| Yes |
Memory
| Technology | 1x SODIMM DDR4 / x 3200 MT/s |
| Max. Capacity | Up to 32 GB (Default 16 GB/8 GB/4 GB by SKU) |
| Socket | 1x 260pin SODIMM |
Ethernet
| Controller | Intel i210IT |
| Interface | 6x RJ45, 1x OOB Port (By SKU) |
| PoE | 4x IEEE 802.3af PoE Ports/ 2x at PoE+ Ports (Under Max. 60 W Power Budget) |
Audio
| Controller | 92HD73E1 |
| Interface | 1x Mic-in & 1x Line-out |
Storage
| Type | SATA |
| Installation | 1x SATA (removable 2.5” storage bay) |
| Type | eMMC |
| Installation | Onboard eMMC 128 GB |
I/O
| Display | 2x HDMI with screw lock |
| LAN | 7x RJ45 Ports (2x GbE LAN w/ i210IT, 4x PoE+ w/ 1x i210IS, 1x OOB by SKU) |
| CAN | 1x CAN 2.0 |
| COM | 2x RS-232/422/485 |
| USB | 3x USB 2.0 Type A, 1x USB 3.0 Type A |
| GNSS/G-sensor | u-blox NEO-M9N/ ADXL 345 |
| Digital I/O | 12 V, 4x DI (support PNP/NPN/dry contact) & 24 V, 2x DO (support dry/ sink), 1x IGN_DI to MCU |
| Antenna | 5x SMA antenna hole (includes GNSS) |
Expansion
| M.2 | 1x M.2 304(5)2 B Key socket (USB 3.0/ PCIe x1) for 4G LTE/ 5G sub6, (In/Out-of-Band Management by SKU) 1x M.2 2230 E key Socket for Wi-Fi |
Cooling
| Processor | Passive CPU heatsink |
| System | Fanless design with corrugated aluminum |
Environment
| Operating Temperature | -40 ~ 70°C / -40 ~ 158°F |
| Storage Temperature | -40 ~ 85°C / -40 ~ 185°F |
| Relative Humidity | 5% ~ 90% operating; 5% ~ 95% non-operating |
Miscellaneous
| Hardware Monitoring | Yes |
| Internal RTC with Li battery | Yes |
Mechanical
| Dimension (W x H x D) | 273.8 x 185 x 98 mm |
| Weight | 4.5 kg |
| Mounting | Wall mount kit |
Power
| Connector | 3-pin terminal block (+,-,ignition) |
| Input | Supports DC 12 ~ 48 V |
Driver Support
| Microsoft Windows | Windows 10/11 IoT |
| Linux | Kernel 2.6.X or later, Ubuntu 20.04 or later, Debian 10 |
Certification
| EMC | FCC/CE Class A, UKCA, E13, RoHS |
| Certified | UL/cUL (UL-62368-1) & CB (DC 24 V ~ 60 V only), MIL-STD-810G |
| RoHS | RoHS 3 |
