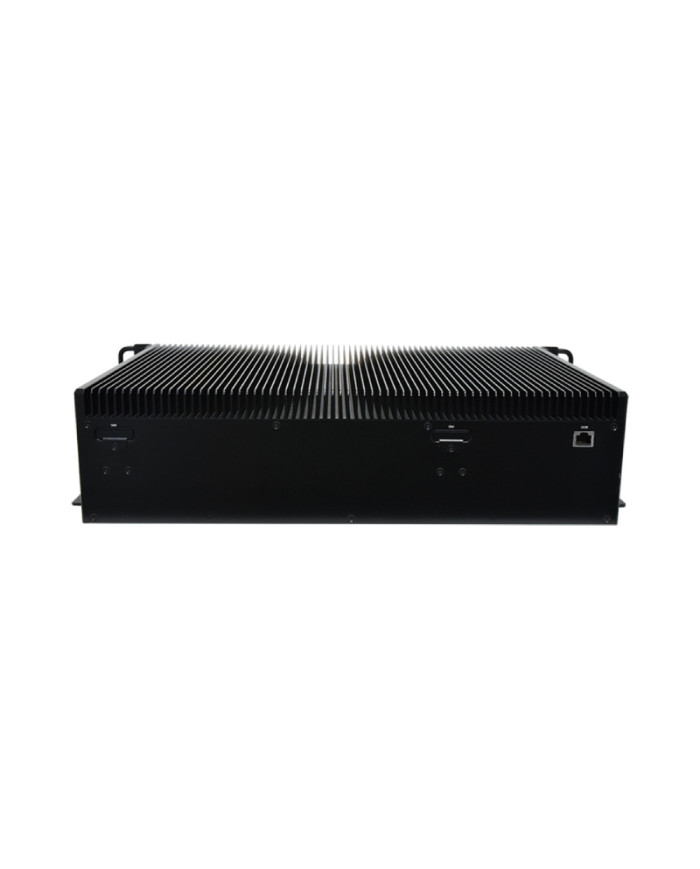

EAI-R530 AI acceleration railway computer
Ask for price
AI Acceleration Railway Computer with Intel Raptor Lake-P CPU
- 13th Generation Intel Core Processor (Raptor Lake-P)
- Certified with EN50155 and EN45545 Standard
- NVIDIA MXM GPU Module Support
- 2x 2.5 GbE PoE+ LAN, 4x 2.5 GbE LAN, 1x USB 2.0, 2x USB 3.2, 2x HDMI, 1x Console, 1x OOB for RJ45
- Support 4x Removable PGN Series Caddies for 5G/LTE connectivity
- 1x Removable 2.5” drive bay
Description
Product Details
The EAI-R530 series has been meticulously crafted around a high-performance embedded system, incorporating the Intel Raptor Lake Extended Temp CPU. This ensures exceptional performance while offering a range of power consumption options, making it ideal for computing applications in rolling stock environments. Notably, this product boasts AI inference capabilities with optional AI accelerator. It is well-suited for a wide array of applications, including Video Analytics, Cybersecurity, and Flexible SDWAN, catering to the diverse needs of the Railway Security appliance market.
The EAI-R530 series is powered by the 13th Gen Intel Core Processor (Raptor Lake-P) and features an IP40-rated fanless enclosure. It operates effectively with a DC power input range of 24-110 V, even in demanding conditions with operating temperatures ranging from -40°C to 70°C, withstanding temperatures of up to 85°C for a duration of 10 minutes. Furthermore, it holds certifications compliant with the regulations listed below.
Use Case
- Real-time obstacle detection over railway track with in-train Edge AI appliance
Specifications
Processor System
| CPU | 13th Generation Intel Core i7-13800HRE(14C), i7-1370PRE(14C), i7-1365URE(10C) Processor (Raptor Lake-P) |
| Frequency | 2.5 GHz |
| Core Number | 14 / 10 |
| BIOS | AMI SPI Flash BIOS |
| Chipset | SoC |
| Processor Graphics | Intel Iris Xe Graphics eligible |
Fanless
| Yes |
Memory
| Technology | 2x 262-pin SODIMM DDR5 4800 MHz Sockets |
| Max. Capacity | Up to 64 GB |
Ethernet
| Speed | 100 Mbps/1 GbE/2.5 GbE Mbps |
| Interface | 6x 2.5 GB M12 X-coded i226IT |
Storage
| Type | SATA III |
| Installation | 1x Removable 2.5” drive bay for 2x storages (HDD/SSD is not included) |
| Type | M.2 |
| Installation | 2x M.2 2242/2280 M Key (NVMe) Sockets |
I/O
| Display | 2x HDMI, up to 4K @ 30 Hz |
| LAN | 4x 2.5 GbE by M12 X-Coded |
| PoE | 2x 2.5 GbE by M12 X-Coded, supports PoE(+) IEEE 802.3af/at |
| Console | 1x RS232 (By SKU) by RJ45 Type with Isolated |
| GPS | support GPS Model: u-blox NEO-M9V |
| OOB | 1x RJ45 for Out-of-band (OOB) Management Solution |
| Antenna | 1x Antenna Hole for GPS; 8x Antenna Holes for 5G Sub6; 2x Antenna Holes for Wi-Fi 6E; 2x Antenna Reserved |
| USB | 1x USB 2.0 with Isolated 2 x USB 3.2 Gen1 without isolated |
Expansion
| MXM | 1x PCIe Gen3 x8 for MXM V3.1 Type A,B (SKU A Only, Optional) |
| M.2 | 2x M.2 M-key 3042/3052 for LTE/5G with SIM/e-SIM swappable by SIM switch IC 1x M.2 2230 E key socket for WiFi |
| PGN | 4x PGN Modules (optional) |
Power
| Connector | M12 K-coded (Ground, DC_IN, Ground, IGN, Chassis Ground) |
| Input | DC 24-110 V |
Cooling
| Processor | Passive CPU heatsink |
| System | Fanless design with corrugated aluminum |
Environment
| Operating Temperature | Operating: -40 to 70ºC -40 to 55ºC with MXM GPU Card Non-Operating: -40 to 85ºC |
| Storage Temperature | -40 ~ 85°C / -40 ~ 185°F |
| Relative Humidity | 5% ~ 95% |
Miscellaneous
| Hardware Monitoring | Yes |
| Internal RTC with Li battery | Yes |
Mechanical
| Dimension (W x D x H) | 438 x 300 x 110.5 mm |
| Weight | 11 kg |
| Form Factor | IP40 Fanless 19” rackmount; optional wall mountable |
Driver Support
| Microsoft Windows | Win 11 IoT |
| Linux | Dabian 10 |
Certification
| EMC | CE/FCC Class A |
| Safety | UL+CB |
| Railway | EN50155, EN45545-2, EN50121-3-2, EN 50121-4 |
| Compliance | MIL-STD-810G |
