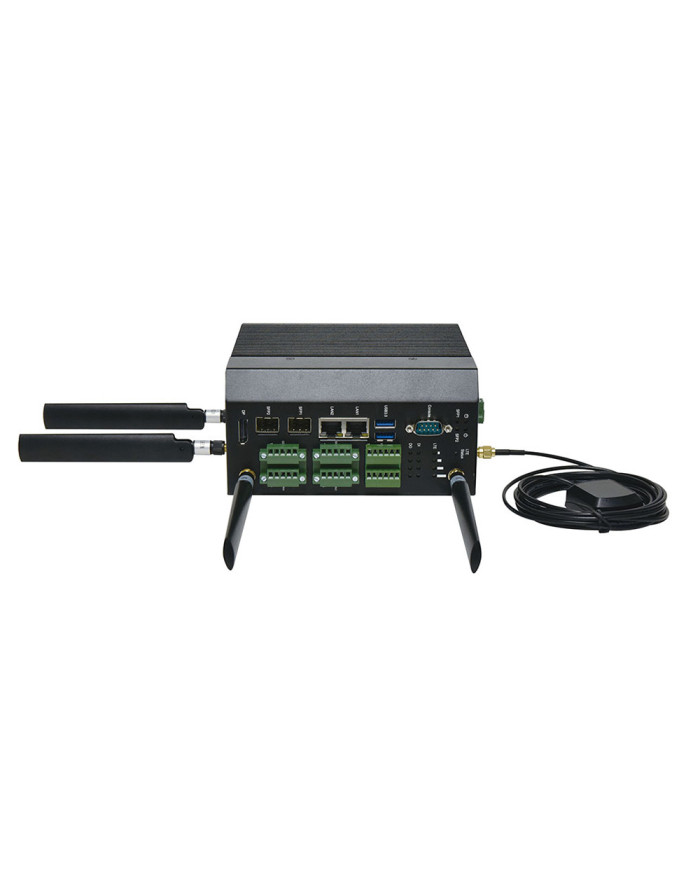

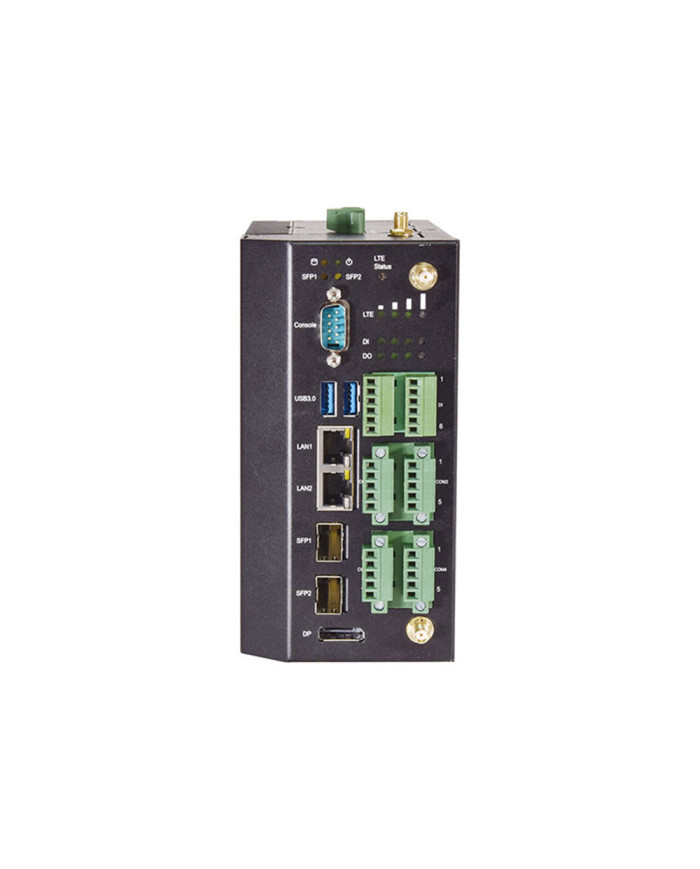

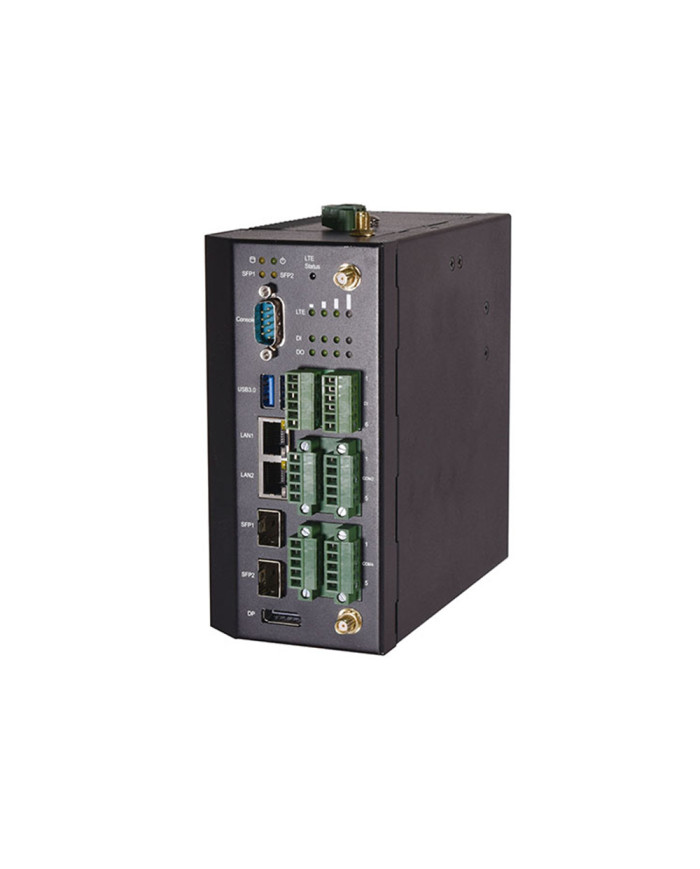

IIoT-I330 Gateway
Ask for price
Robust DIN-rail fanless industrial gateway with LTE/Wi-Fi 6 connectivity support
- Intel Atom X7-E3950 / N3350 SoC CPU (formerly Apollo Lake)
- 2x COM, 2x CAN 2.0 (optional for 2x COM), 4x DI/DO, 2x USB 3.0, 1x DB9 console, DP, SKU A/M/O: 4x GbE RJ45 (one pair bypass), SKU B/N/P: 2x GbE RJ45 (one pair bypass) & 2x SFP, SKU Q: 4x GbE RJ45
- Onboard eMMC 64 GB, DDR3L 4 GB pre-install, 1x mSATA, optional 1x internal SATA 2.5” drive bay, TPM 2.0
- 1x M.2 B-Key w/ Nano SIM for LTE, 1x M.2 E-Key for Wi-Fi 5/6
- Wide operating temperature range: -40 ~ 70°C for industrial SKU A/B
Description
Product Details
Lanner IIoT-I330 robust fanless industrial gateway features quad-core Intel Atom X7-E3950 or dual-core Celeron N3350, optional 4G/LTE mobile connectivity, DDR3L SO-DIMM memory, onboard eMMC, SATA and mSATA sockets, DP display, and a variety of isolated serial COM, DIO, and GbE LAN (RJ45, SFP) configuration options, with wide operating temperature range and multiple DIN Rail mounting options for various industrial IoT application needs.
Specifications
Processor System
| CPU | Intel Atom X7-E3950 / N3350 onboard |
| Frequency | 1.60 GHz / 1.10 GHz |
| Core Number | 4 / 2 |
| BIOS | AMI SPI Flash BIOS |
| Chipset | SoC |
Memory
| Technology | DDR3L, up to 1600 MT/s |
| Max. Capacity | 8 GB |
| Socket | 1 x 204-pin SODIMM |
Graphic
| Controller | Intel HD Graphics 505/500 |
| Display Interface | DP port |
Ethernet
| Controller | LAN1/2 by using Intel i210-IT/AT with bypass; LAN3/LAN4 by using i210-IT/IS/AT |
| Speed | 10/100/1000 Mbps |
| Interface | SKU A/M/O: 4x GbE RJ45 (one pair bypass), SKU B/N/P: 2x GbE RJ45 (one pair bypass) & 2x SFP SKU Q: 4x GbE RJ45 |
| Protection | 1.5 KV magnetic isolation protection |
Storage
| Type | Onboard eMMC 64 GB, 1x SATA,1x mSATA |
| Installation | 1x SATA for 2.5” SSD/HDD, mSATA module |
I/O
| Serial Port | 1x 2x5-pin terminal block for isolated 2 x RS232/422/485 |
| CAN bus | 1x 2x5-pin terminal block for isolated 2 x CAN 2.0 A/B, optional for isolated 2x RS232/422/485 |
| DIO | 1x 2x6-pin terminal block for: 4x DI (Dry/PNP/NPN) with -30 ~5 V @ 7 mA, logical value 0; 13 ~ 30 V @ 7 mA, logical value 1 4x DO (Sink) with voltage typical 24 V (up to 30 V) @ 200 mA |
| USB 3.0 | 2 x type A |
| Reset Button | Reset button on bottom side |
| LED | 1x power status, 1x storage access, 2x SFP status , 1x LTE status , 4x LTE signal level, 2x4 programmable |
| Expansion | 1x M.2 B-Key w/ Nano SIM for LTE, 1x M.2 E-Key for Wi-Fi 6 |
Watchdog Timer
| Watchdog timer 256 level time interval system reset, software programmable |
Power
| Power Supply Voltage | Typical +12 V/+24 VDC Input |
| Connector | Phoenix Contact 2-pin connector with lock |
| Dual power inputs | Yes |
| Power Adaptor | None |
Environment
| Operating Temperature | -40 ~ 70ºC for industrial SKU A/B; 0 ~ 50ºC for commercial grade SKU M/N/O/P/Q |
| Storage Temperature | -40 ~ 85ºC |
| Relative Humidity | 5% ~ 95%, non-condensing |
Mechanical
| Dimension (W x H x D) | 160 x 156.5 x 81 mm (6.29” x 6.16” x 3.18”) |
| Fanless | Yes |
| Construction | Aluminum + steel |
| Weight | 2 kg (SKU B) |

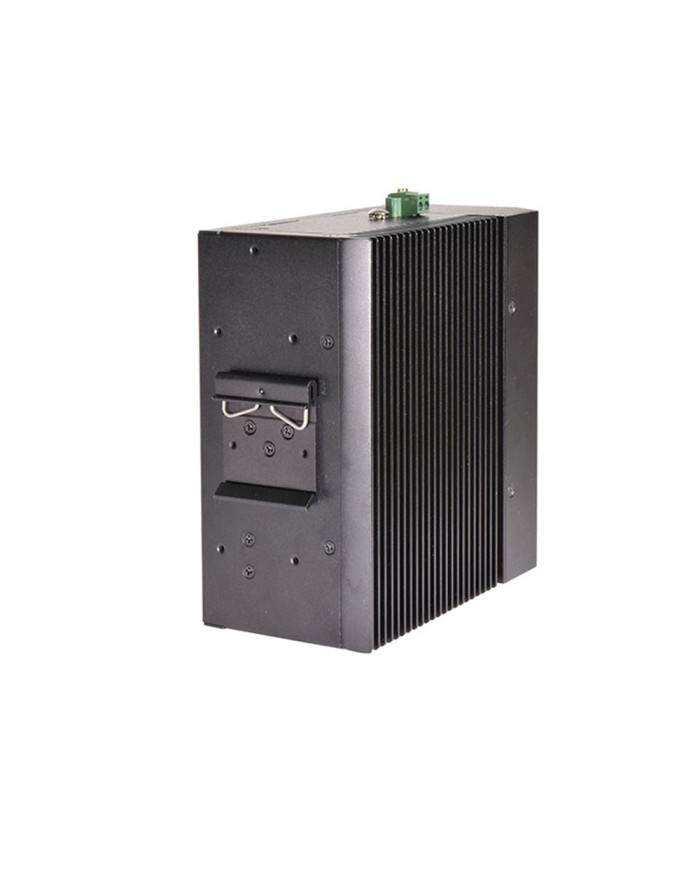

| Mounting | DIN rail, optional for wall mount |
Driver Support
| Microsoft Windows | Windows 10 IoT |
| Linux | Debian 10 or above |
Certification
| EMC | CE/FCC Class A, UL |
| Green compliance | RoHS |
