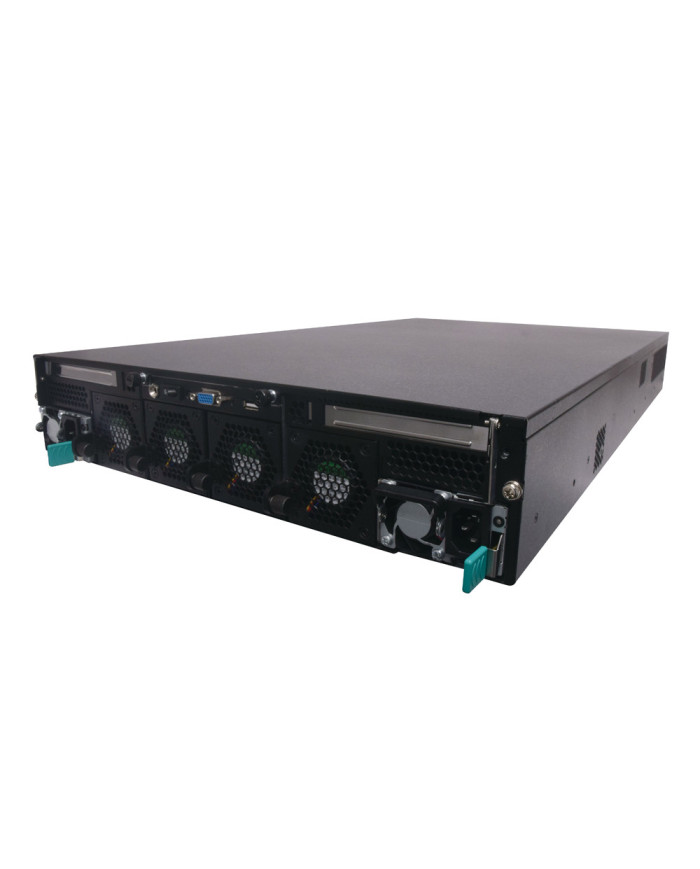

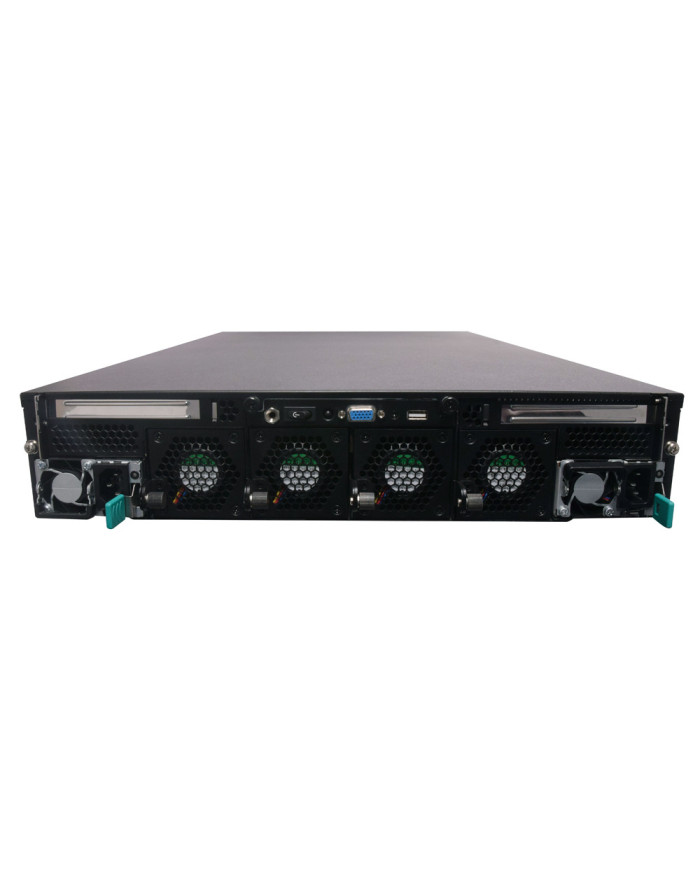

NCA-6520 industrial edge AI server
Ask for price
2U 19” Rackmount Edge AI Server with 3rd Gen Intel Xeon Scalable Processor (Codenamed Ice Lake SP)
- Dual 3rd Gen Intel Xeon Scalable Processor (Ice Lake SP)
- 24 x DDR4 2133/2400/2666/2933/3200 MHz, Max. 1536 GB
- 8 x NIC Slots, 2 x GbE RJ45, 1 x RJ45 Console, 1 x LOM, 2 x USB 3.0
- PCIe x16 Gen 4 Expansion (Optional), 3 x M.2-2280 (NVME & SATA)
- 100G Intel QAT, Intel SGX, Intel Boot Guard, TPM 2.0
- 4 x Individual Hot-swappable Fans, 1300 W/2000 W 1+1 ATX Redundant PSUs
Description
Product Details
The NCA-6520, powered by the 3rd Gen Intel Xeon Scalable Processor (Codenamed Ice Lake SP) and the Intel C627A chipset, supports up to 1536 GB of system memory and 8 NIC module slots for almost any networking interface and I/O configuration. Other notable features include 1300 W/2000 W or optional 1600 W 1+1 ATX redundant power supply, 2 x PCI-E x16, three M.2 and four individual hot-swappable smart fans.
Configured with an NVIDIA A30 Tensor Core GPU, the NVIDIA-Certified NCA-6520 provides an AI-optimized platform that significantly accelerates AI performance for service providers to power unique AI and data analytics on factory floors and retail shelves, and accelerate mission-critical deep learning inferencing in industrial environments, such as healthcare, transportation, and smart cities.
Kick-start your AI journey with immediate, short-term access to NVIDIA AI Enterprise - for free. Experience the difference of the NVIDIA AI Enterprise software suite with hands-on labs for every user. IT administrators will learn best practices for deploying and managing NVIDIA AI Enterprise.
Specifications
Platform
| Form Factor | 2U 19” Rackmount |
| Processor Options | 3rd Gen Intel Xeon Scalable Processor |
| CPU Socket | 2 x LGA4189 |
| Chipset | Intel C627A |
| Security Acceleration | Intel QuickAssist Technology |
| BIOS | AMI SPI Flash BIOS |
System Memory
| Technology |
DDR4 2133/2400/2666/2933/3200 MHz R-DIMM / LRDIMM |
| Max. Capacity | 1536 GB |
| Socket | 24 x 288-pin REG DIMM |
Networking
| Ethernet Ports | 2 x GbE RJ45 Intel i350-AM2 |
| Bypass | Depending on NIC Module Specifications |
| NIC Module Slot | 8 |
LOM
| IO Interface | 1 x RJ45 |
| OPMA Slot | IPMI Chip Onboard |
I/O Interface
| Reset Button | 1 |
| LED | Power/Status/Storage |
| Power Button | 1 x ATX Power Switch |
| Console | 1 x RJ45 |
| USB | 2 x USB 3.0 |
| Display | 1 x VGA (Internal Pin Header) |
| Power Input | AC Power Inlet on PSU |
Storage
| HDD/SSD Support | 2 x 3.5” or 2.5” Internal Bays |
| Onboard Slots | 3 x M.2-2280, M Key |
Expansion
| PCIe |
Default: N/A Optional: SKU A 1 x PCIE x16 Gen4 FH/FL Single-slot Size Bracket + 1 x PCIE x16 Gen4 FH/HL Single-slot Size Bracket (With Support For Up To 75 W Double Side At Rear) Optional: SKU B 2 x PCIE x16 Gen4 FH/FL Dual-slot Size Bracket (With Support For Up To 300 W GPU Double Side At Rear) |
Miscellaneous
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | Optional |
Cooling
| Processor | Passive CPU Heatsink |
| System | 4 x Individual Hot-swappable Cooling Smart Fans |
Environmental Parameters
| Temperature |
0 ~ 40ºC Operating -20 ~ 70ºC Non-Operating |
| Humidity (RH) |
5 ~ 90% Operating 5 ~ 95% Non-Operating |
System Dimensions
| Dimensions (W x D x H) | 588 mm x 997 mm x 250 mm |
| Weight | 32 kg |
Power
| Type / Watts |
(Default) 1300 W / 2000 W AC 1+1 Redundant (Optional) 1600 W DC 1+1 Redundant |
| Input | AC 100 ~ 240 V @47 ~ 63 Hz |
Certification
| Approvals and Compliance | RoHS, CE/FCC Class A, UL |
